4.7 Operating with A Series Auger Header
Refer to this section to learn how to configure the hydraulics, change the reel settings, operate the draper and knives, and
use the optional deck shift controls on an A Series Auger Header.
4.7.1 Auger Speed
The options for setting the header’s auger speed differ depending on the model of header.
Setting Auger Speed on A30D Auger Headers
On A30D Auger Headers, the auger speed is fixed to the knife speed. The cab display module (CDM) cannot display the
auger speed.
Setting Auger Speed on A40D Auger Headers
The speed of the auger on A40D Auger Headers is directly related to the speed of the reel. However, the auger speed can
be controlled independently of the reel.
1000793
A
B
C
D
E

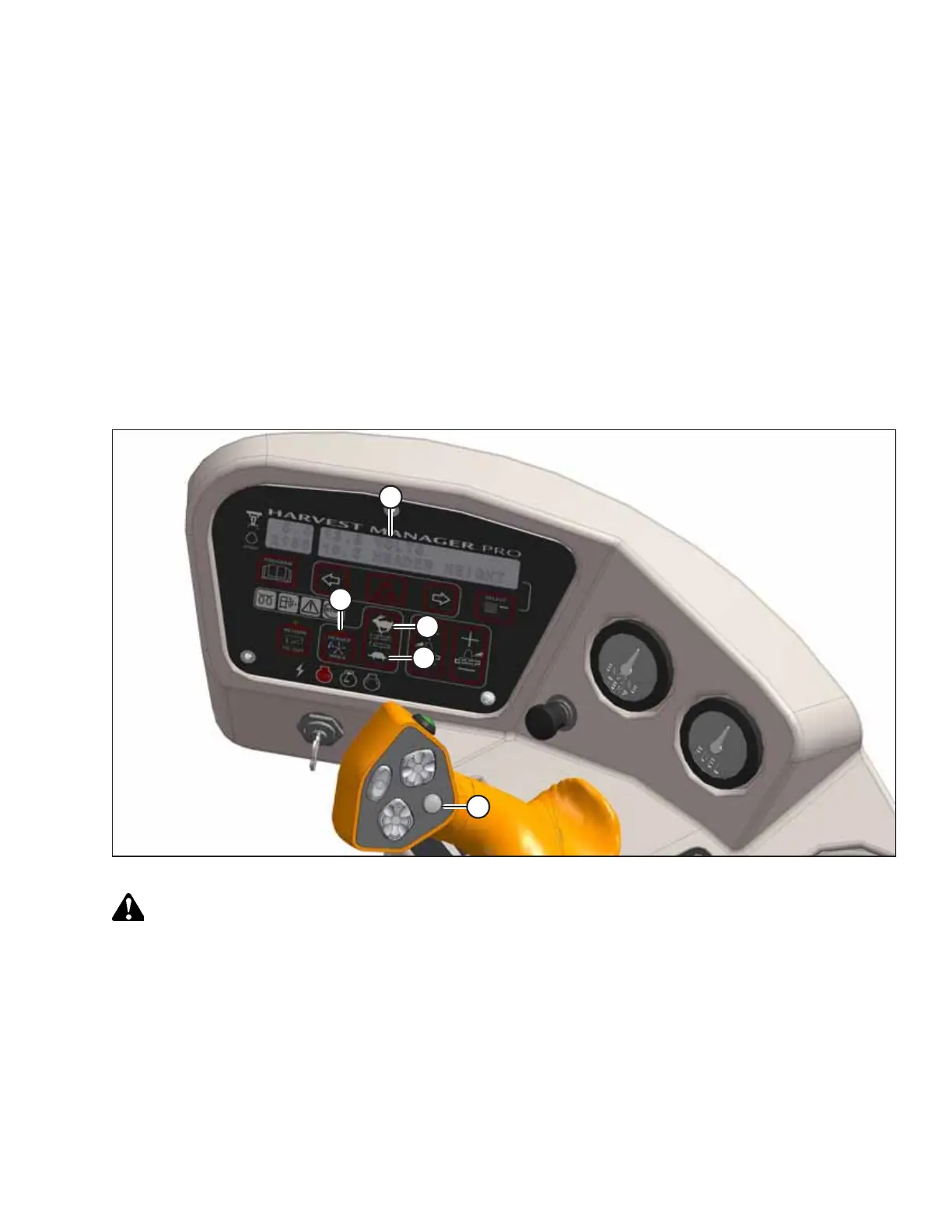

Figure 4.305: Operator Console
DANGER
Ensure that all bystanders have cleared the area.
1. Start the engine.
2. Engage the header.
3. Set HEADER INDEX switch (B) to OFF.
4. Set the REEL SPEED setting to the minimum possible value. For instructions, refer to Reel and Disc Speed Switches,
page 68.
