MacDon M155 2022 - Detaching D or D1 Series Draper Header; Detaching D or D1 Series Draper Header - Hydraulic Center-Link

215676 231 Revision A
1000774
A
B

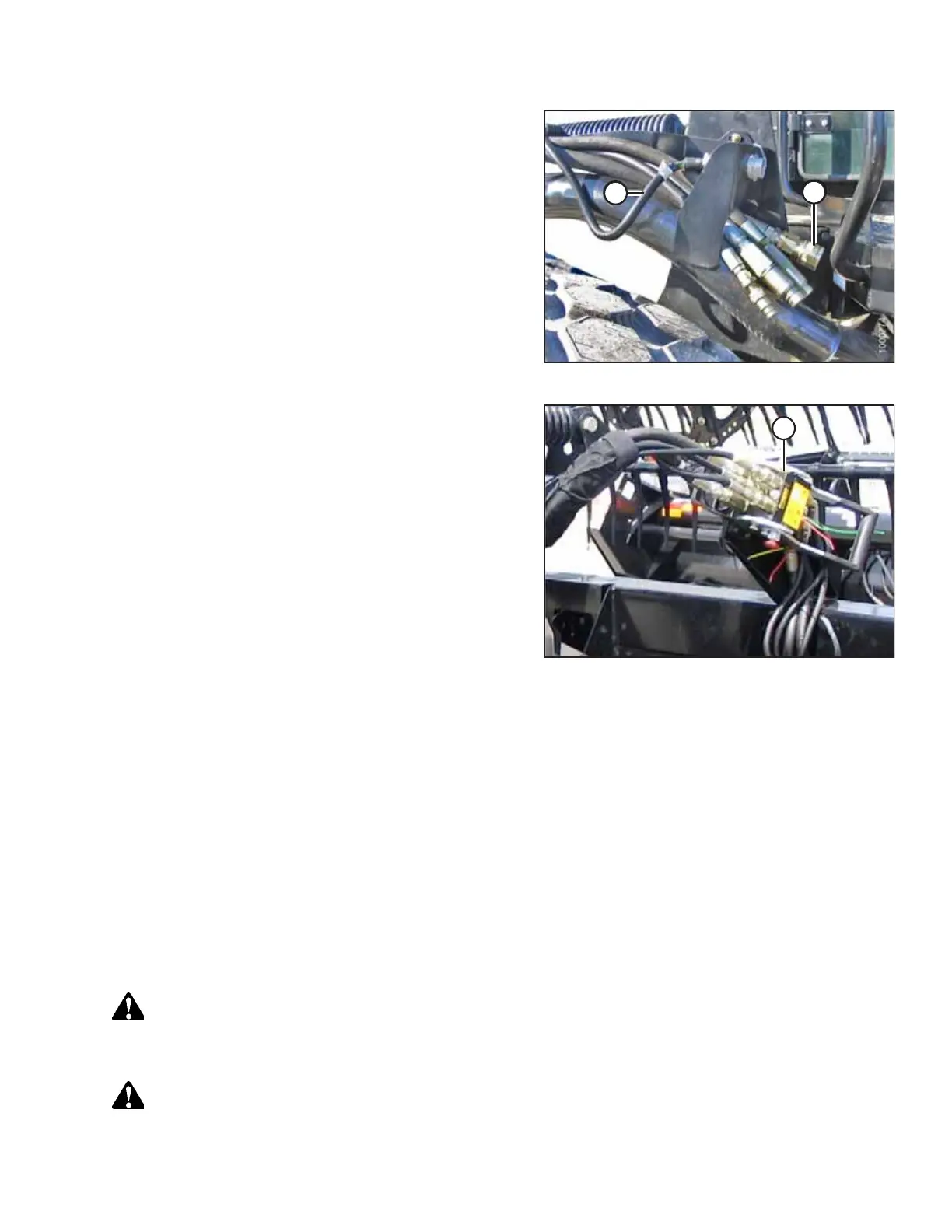

Figure 4.146: Header Drive Hoses and Harness
21. Connect header drive hoses (A) and electrical harness (B) to
the header. For instructions, refer to the header operator’s
manual.
1000775
A
Figure 4.147: Reel Hydraulics
22. Connect reel hydraulics (A) at the right cab-forward side of
the windrower. For instructions, refer to the draper header
operator’s manual.
4.5.3 Detaching D or D1 Series Draper Header
Detaching a header from the windrower involves removing the header’s mechanical connection to the windrower and
disconnecting the hydraulic and electrical connections.
The procedure for detaching a D or D1 Series Draper Header from the windrower differs slightly depending on the
configuration of the windrower. Proceed to the relevant topic:
• Detaching D or D1 Series Draper Header – Hydraulic Center-Link, page 231
• Detaching D or D1 Series Draper Header – Mechanical Center-Link, page 235
Detaching D or D1 Series Draper Header – Hydraulic Center-Link
Detaching a D or D1 Series Draper Header from the windrower requires lowering the header stand, removing the leg pins,
disengaging the float springs, and disconnecting the electrical and hydraulic connectors.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
DANGER
Ensure that all bystanders have cleared the area.
OPERATION
