MacDon M155 2022 - Detaching a Series Auger Header - Mechanical Center-Link

215676 259 Revision A
1000784
A
B

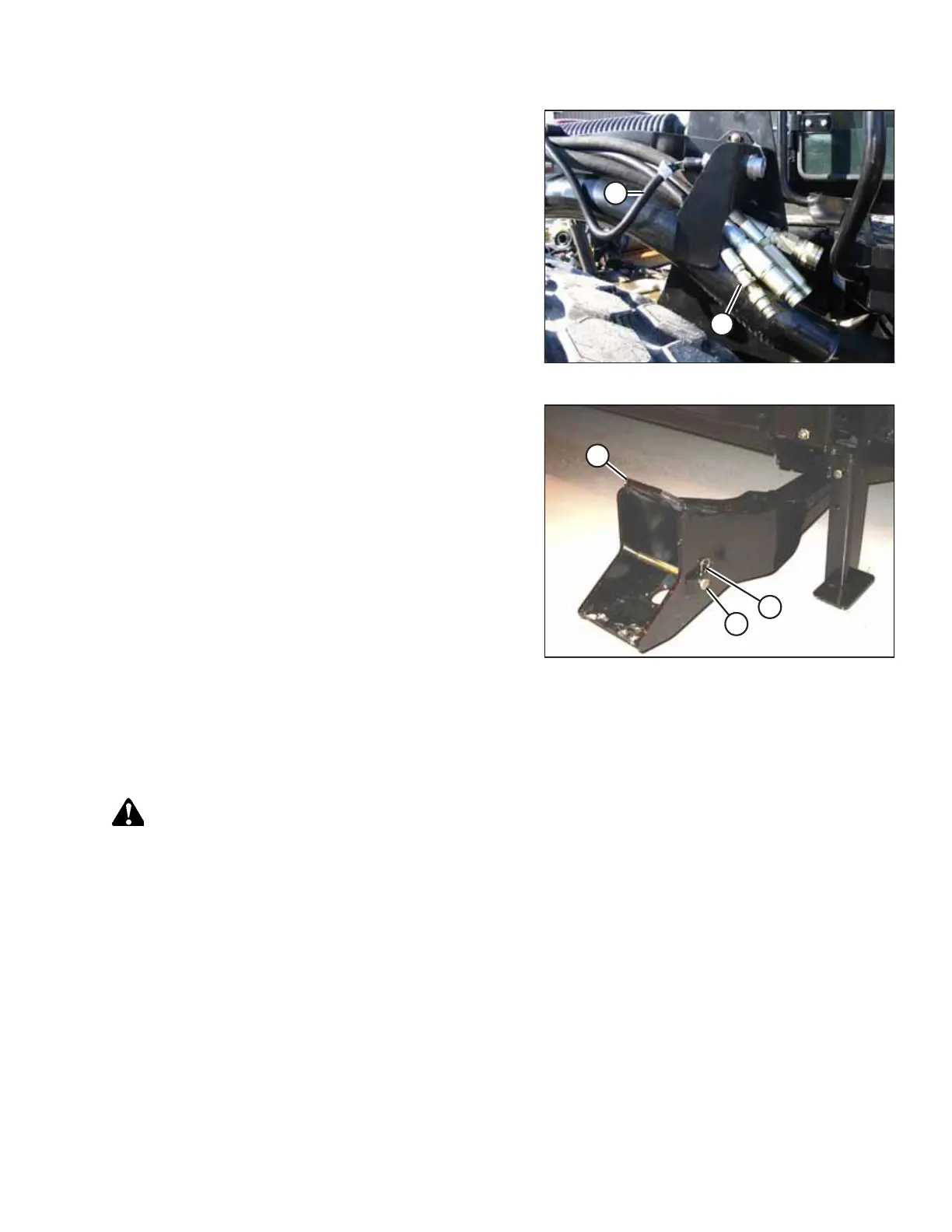

Figure 4.218: Header Drive Hydraulics
18. Disconnect header drive hydraulics (A) and electrical
harness (B). Refer to the auger header operator’s manual.
19. Back the windrower slowly away from the header.
1000778
A
B
C
Figure 4.219: Header Boots
20. Reinstall clevis pin (B) into header boot (C) and secure it
with hairpin (A).
21. Repeat the previous step on the opposite side of the
header.
Detaching A Series Auger Header – Mechanical Center-Link
Detaching an A Series Auger Header from the windrower requires lowering the header stand, removing the leg pins,
disengaging the float springs, and disconnecting the electrical and hydraulic connectors.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
OPERATION
