3.13 Operator Amenities
The operator’s station includes a number of features which make operating the windrower more convenient, such as an
auxiliary power outlet and a cup holder.

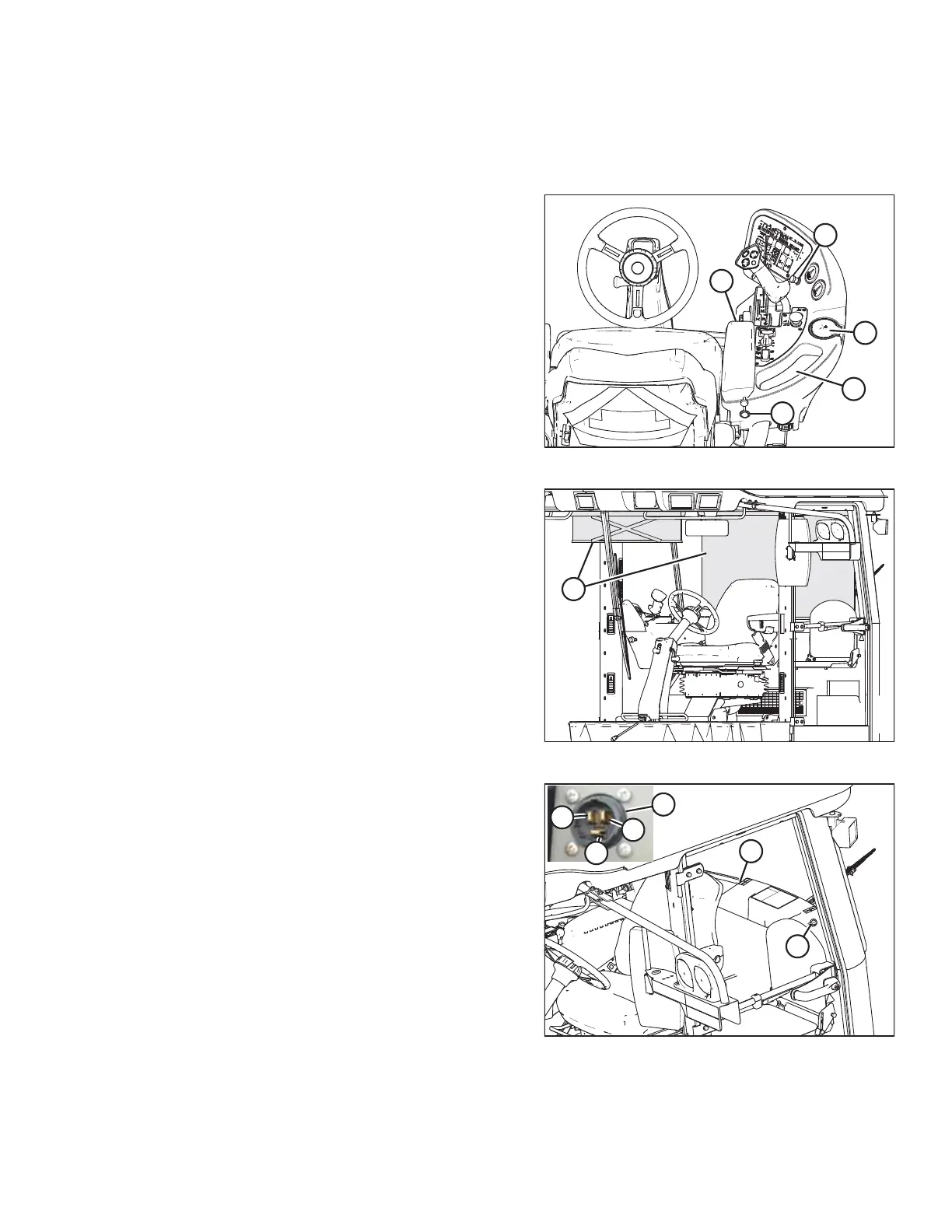

Figure 3.32: Console
Operator’s console
A - Auxiliary power outlet
B - Utility tray (under armrest)
C - Cigarette lighter
D - Ashtray/cup holder
E - Utility tray
Figure 3.33: Windshield Shades
Windshield shades (optional)
Retractable window shades (A) can be installed for the front
and rear windows. Refer to 7.1.5 Windshield Shades, page 459
for ordering information.
Figure 3.34: Auxiliary Power Outlets
Auxiliary outlets
Two auxiliary power outlets are located on either side of the
wiper motor cover/storage tray behind the Operator
(when the operator’s station is in cab-forward mode).
A - Auxiliary power outlet
B - Auxiliary power outlet
C - Battery terminal
D - Ground terminal
E - Switched terminal
OPERATOR’S STATION
