215676 239 Revision A
4.5.4 Attaching A Series Auger Header
The procedure for detaching an A Series Auger Header from the windrower differs slightly depending on the configuration
of the windrower. Proceed to the relevant topic:
• Attaching A Series Auger Header – Hydraulic Center-Link with Self-Alignment, page 239
• Attaching A Series Auger Header – Hydraulic Center-Link without Self-Alignment, page 244
• Attaching A Series Auger Header – Mechanical Center-Link, page 250
Attaching A Series Auger Header – Hydraulic Center-Link with Self-Alignment
The windrower may be equipped with an optional self-aligning hydraulic center-link, which allows the Operator to control
the vertical position of the center-link from the cab.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.

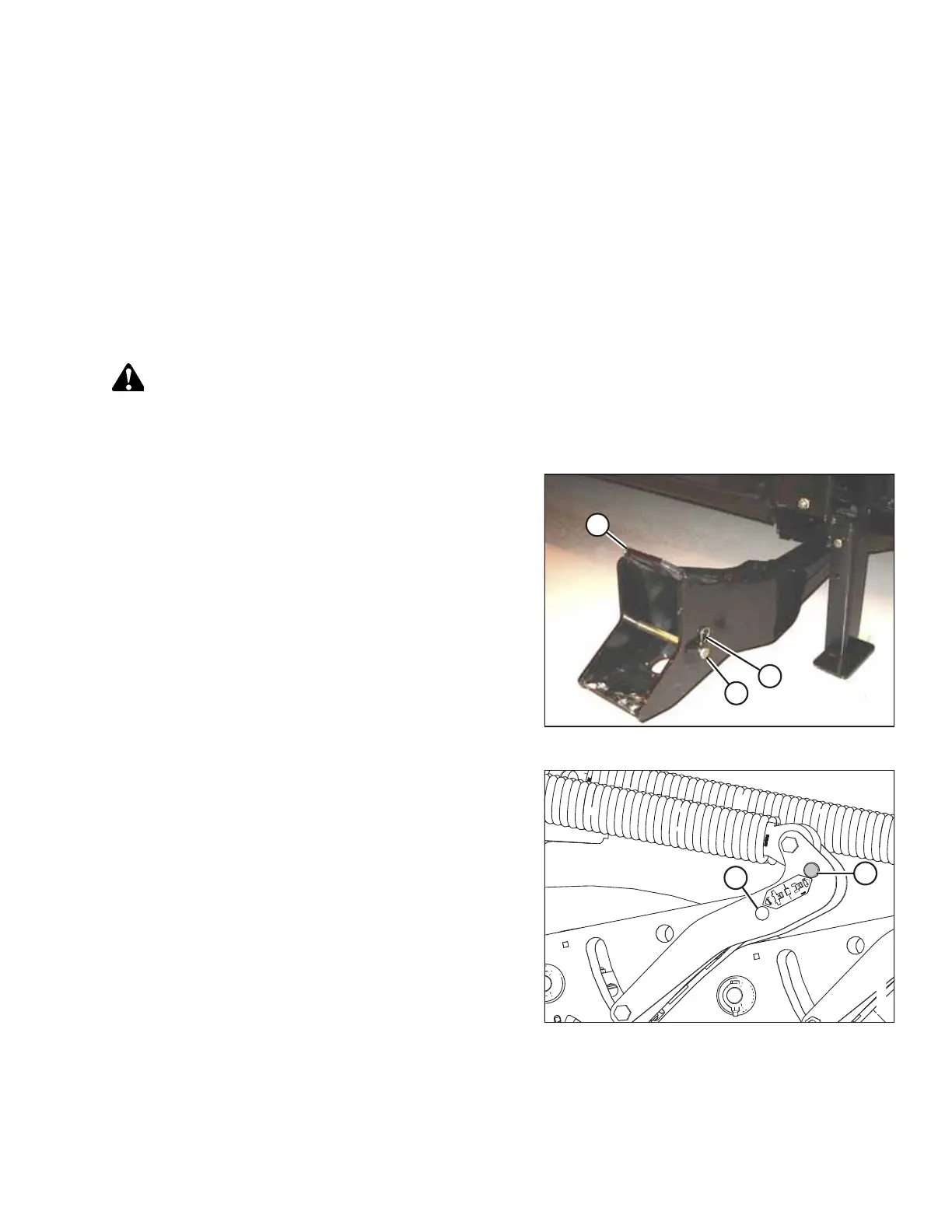

Figure 4.167: Header Boot
2. Remove hairpin (A) from clevis pin (B) and remove the
clevis pin from header boots (C) on both sides of the
header.
Figure 4.168: Header Float Linkage
3. Check that the float engagement pin is installed in storage
position (B) and NOT in engaged position (A).
IMPORTANT:
To prevent damage to the lift system when lowering the
header lift linkages without a header or a weight box
attached to the windrower, ensure that the float
engagement pin is installed in storage position (B) and NOT
in engaged position (A).
OPERATION
To Next Page
