215676 405 Revision A

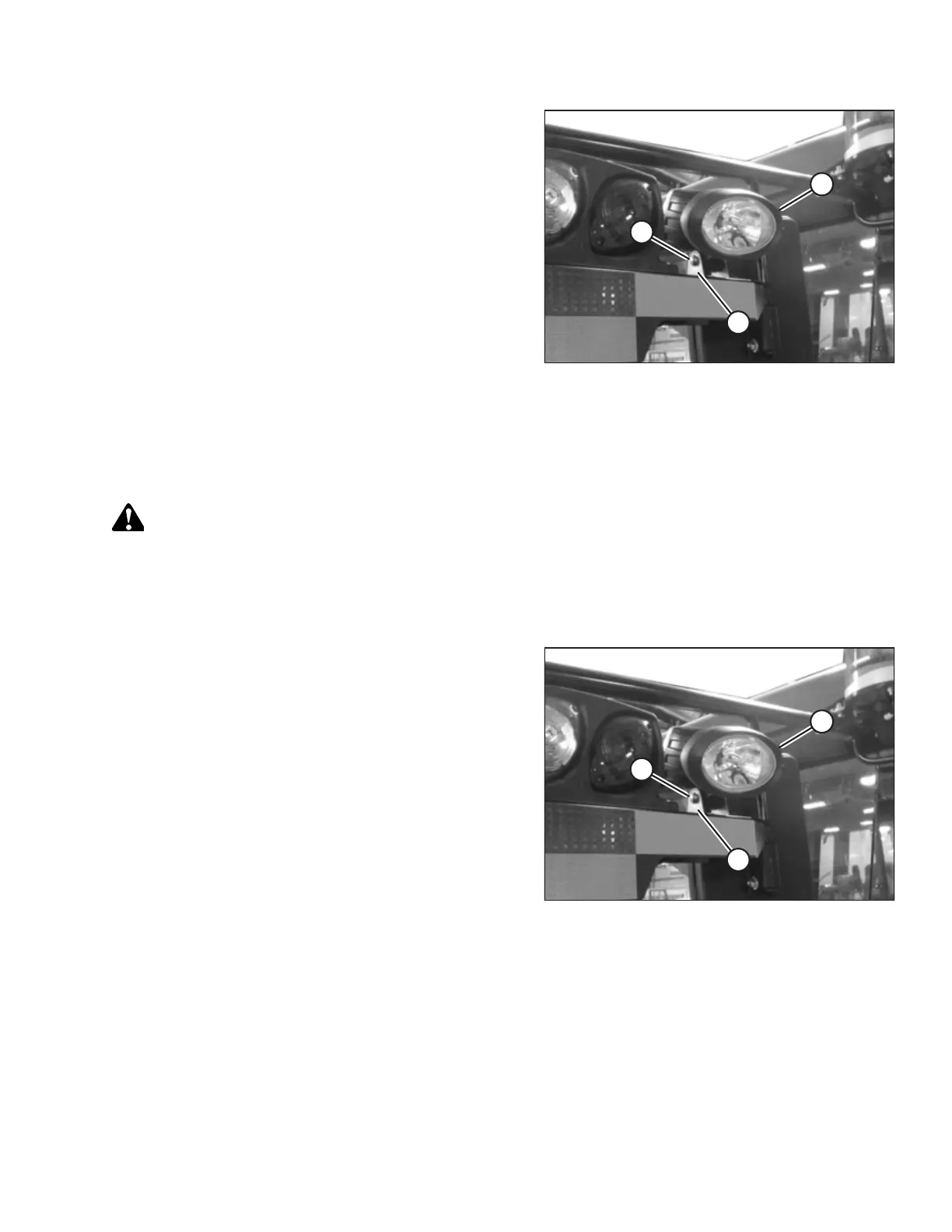

Figure 5.157: HID Lamp Installed
12. Loosen bolt (A) in bracket (C).
13. Adjust lamp (B) to the desired position. Tighten bolt (A).
Adjusting High-Intensity Discharge Auxiliary Lights
The optional high-intensity discharge (HID) lights should be adjusted in conditions which resemble the windrower’s real-
world operating conditions.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
2. Turn the lights ON.
Figure 5.158: HID Auxiliary Lights
3. Loosen bolt (A) and nut (C) inside the light/mirror support.
4. Move light (B) to the desired position.
5. Tighten bolt (A) and nut (C).
MAINTENANCE AND SERVICING
