215676 404 Revision A

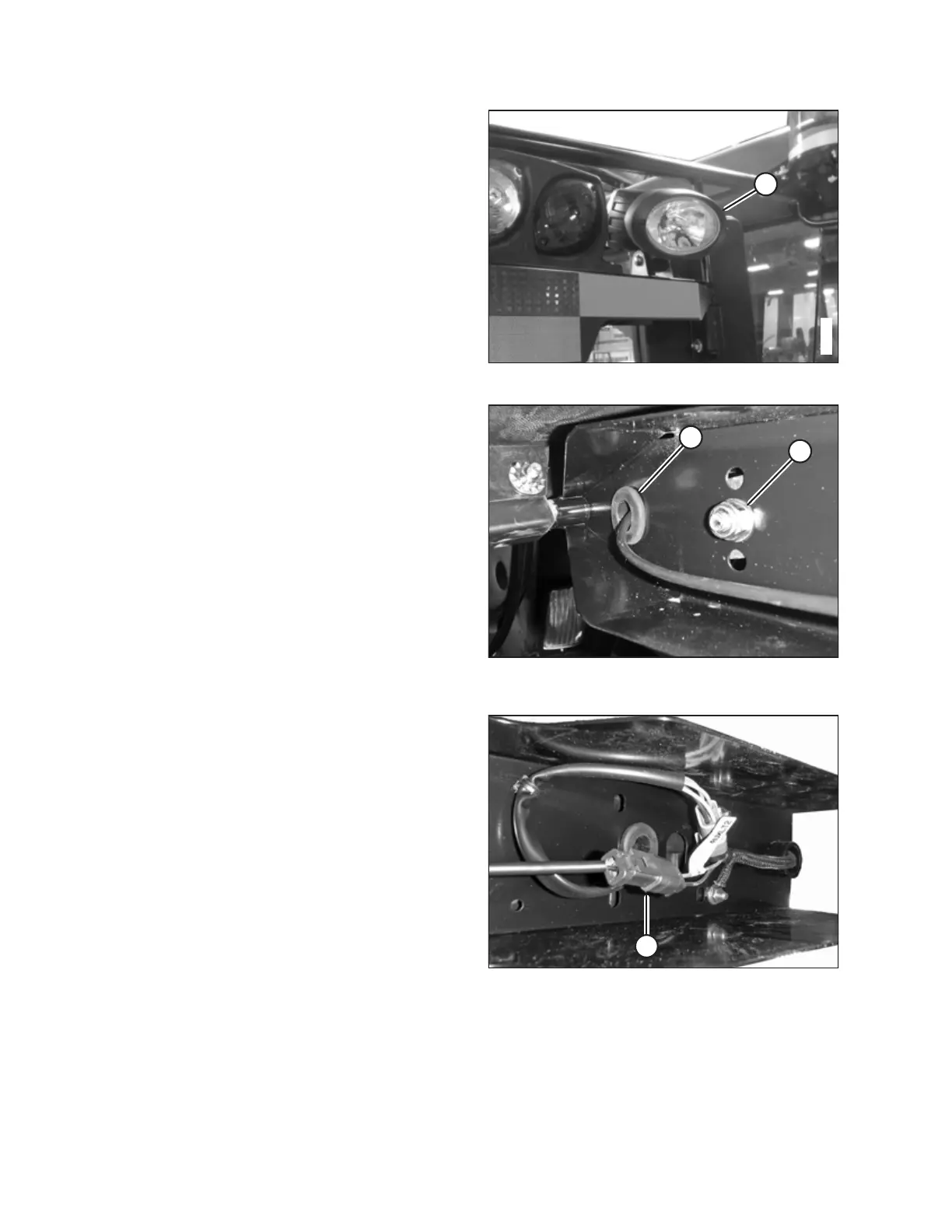

Figure 5.154: New HID Lamp in Place
8. Retrieve new HID lamp (A) and place it on the mirror
assembly as shown.
Figure 5.155: Hardware and Light Harness Grommet –
View from Underside of Mirror
9. From the underside of the mirror, feed the electrical
connector through grommet (B).
10. Secure the HID lamp with retained nut (A).
Figure 5.156: Lamp Harness Connector – View from
Underside of Mirror
11. Connect lamp harness connector (A).
MAINTENANCE AND SERVICING
