MacDon M155 2022 - Attaching D or D1 Series Draper Header - Hydraulic Center-Link Without Self-Alignment

215676 221 Revision A
1000774
A
B

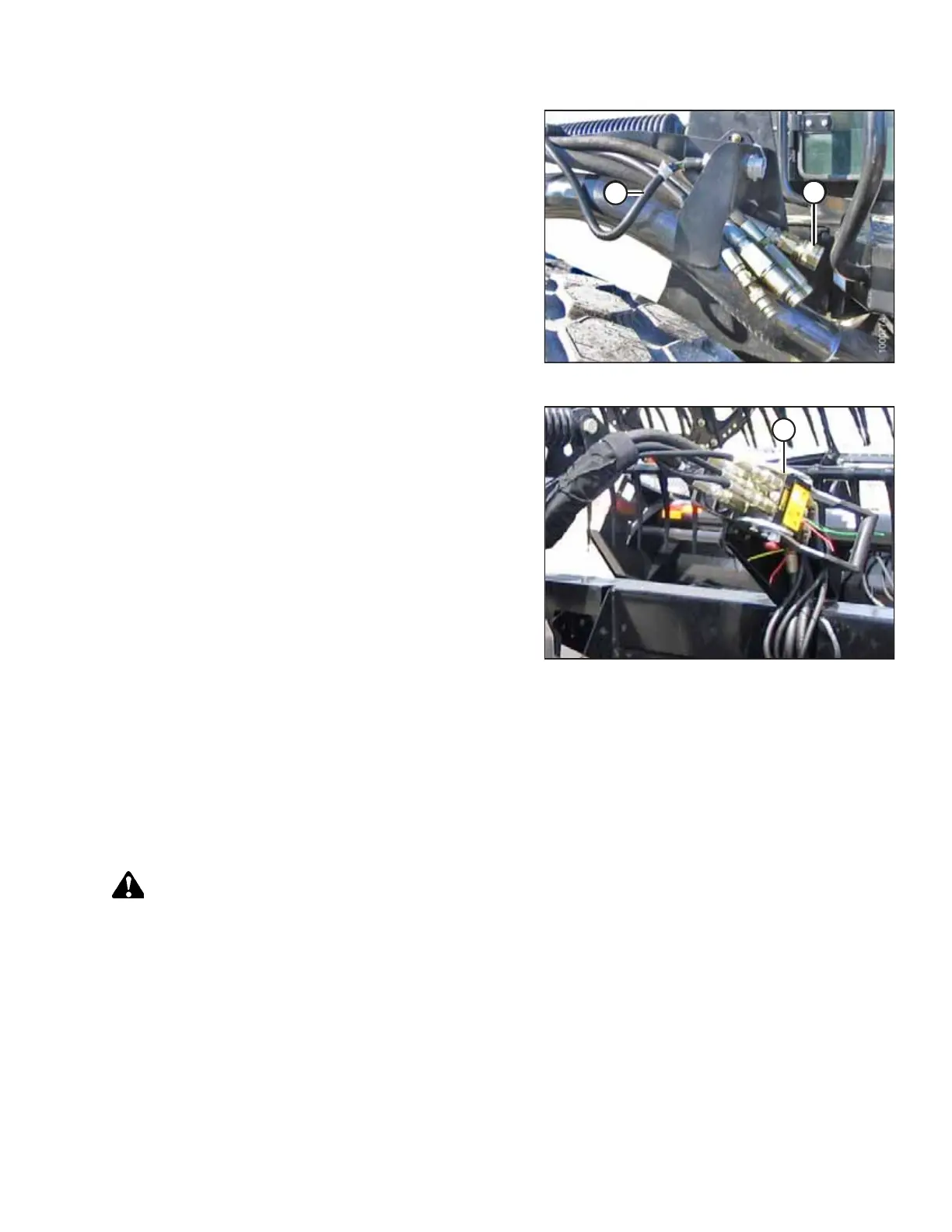

Figure 4.120: Header Drive Hoses and Harness
21. Connect header drive hoses (A) and electrical harness (B) to
the header. For instructions, refer to the header operator’s
manual.
1000775
A
Figure 4.121: Reel Hydraulics
22. Connect reel hydraulics (A) at the right cab-forward side of
the windrower. For instructions, refer to the draper header
operator’s manual.
Attaching D or D1 Series Draper Header – Hydraulic Center-Link without Self-Alignment
If the windrower is equipped with a hydraulic center-link that lacks the self-alignment capability, the Operator will have to
manually attach the hydraulic center-link’s hook to the header’s center pin.
NOTE:
Draper header boots must be installed onto the windrower’s lift linkage before starting this procedure. For instructions,
refer to 4.5.1 Attaching Header Boots, page 215.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
OPERATION
