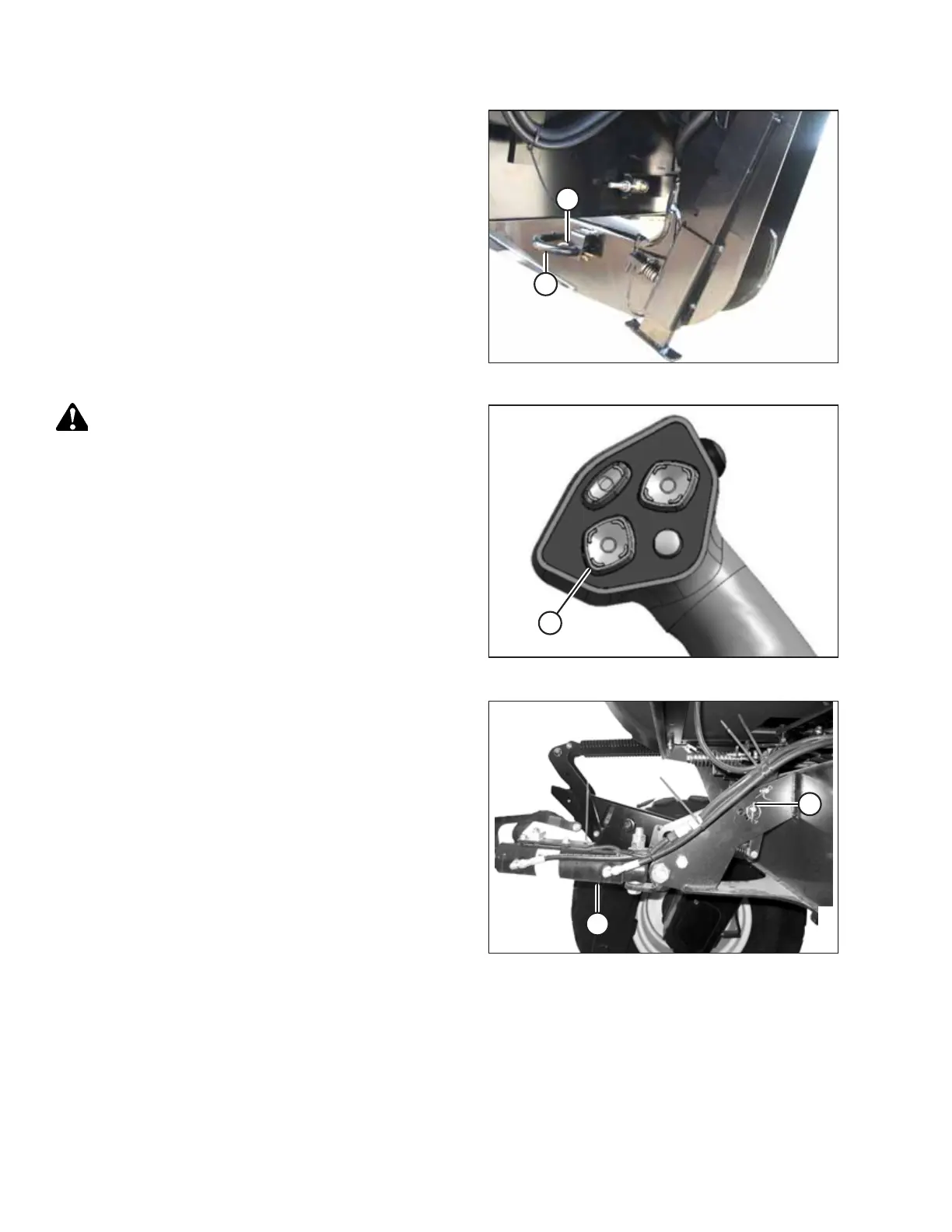

Figure 4.122: Header Leg
2. Remove hairpin (A) from pins (B), and remove the pins from
both header legs.
Figure 4.123: Ground Speed Lever
DANGER
Ensure that all bystanders have cleared the area.
3. Start the engine and activate HEADER DOWN button (A) on
the ground speed lever (GSL) to fully retract the header lift
cylinders.
IMPORTANT:
Before starting the engine for the first time the windrower
is operated in a season, remove the protective cover from
the exhaust stack.
Figure 4.124: Hydraulic Center-Link without Self-
Alignment Kit
4. Remove pin (A) from the frame linkage and raise center-
link (B) until the hook is above the attachment pin on the
header. Replace pin (A) to hold the center-link in place.
IMPORTANT:
If the center-link is too low, it may contact the header as
the windrower approaches the header for hookup.
