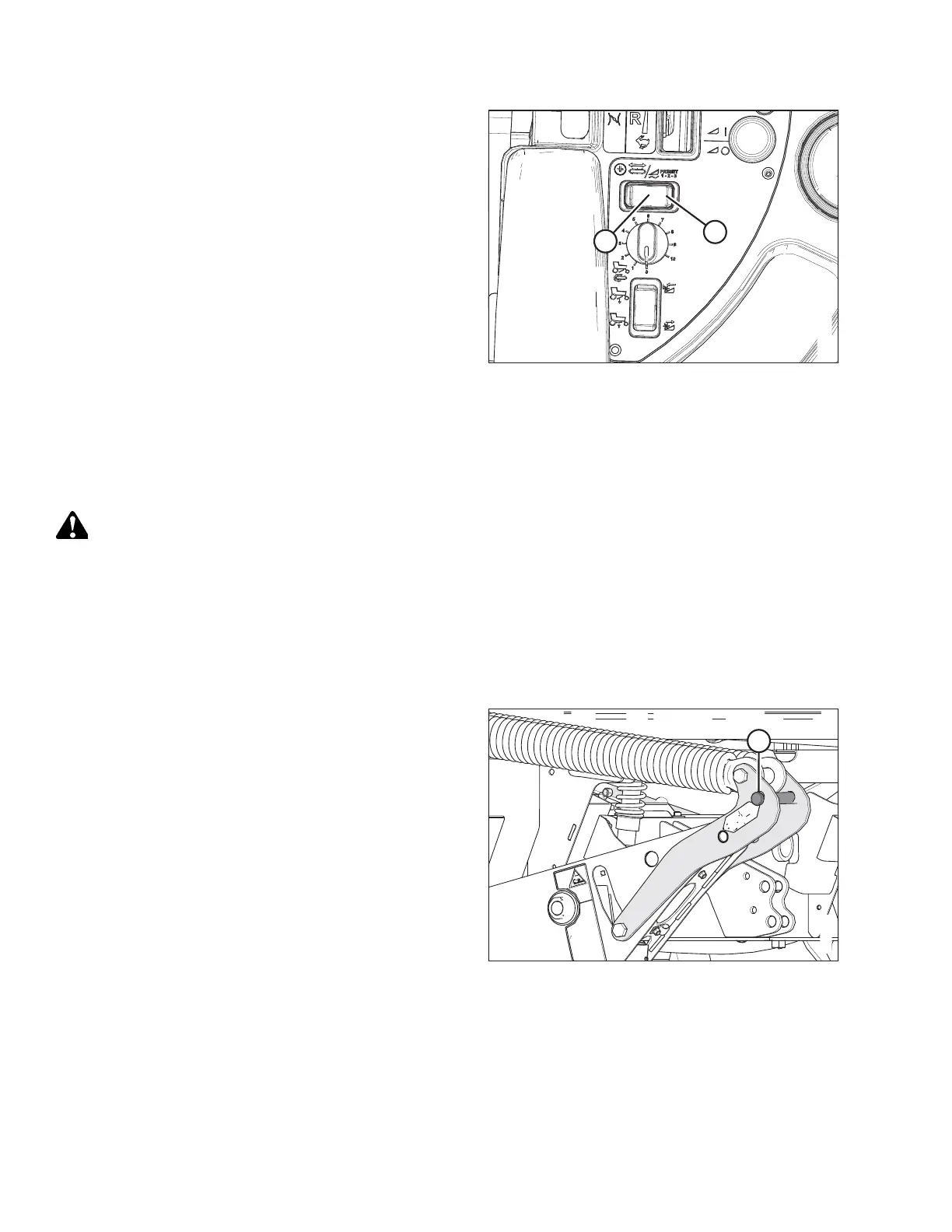

Figure 4.75: Float Preset Switch
5. Select a second preset with FLOAT PRESET 2 SWITCH (C).
6. Repeat Steps 1, page 197 and 2, page 197 to configure
the float preset.
7. Select a third preset with FLOAT PRESET 3 SWITCH (D).
8. Repeat Steps 1, page 197 and 2, page 197 to configure
the float preset.
NOTE:
For draper headers with the deck shift option, the float can
be programmed to compensate for the change in weight
distribution when the decks are shifted. Refer to Setting
Float Options with Deck Shift, page 299.
4.4.3 Leveling Header
The windrower linkages are factory-set to provide the proper level for the header and should not normally require
adjustment.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
If the header is not level, check the pressure of the windrower’s tires before adjusting the leveling linkages.
NOTE:
The float springs are NOT used to level the header.
To level the header:
1008707
A
Figure 4.76: Float Pins – Disengaged
1. Place the float pins in locked-out location (A).
