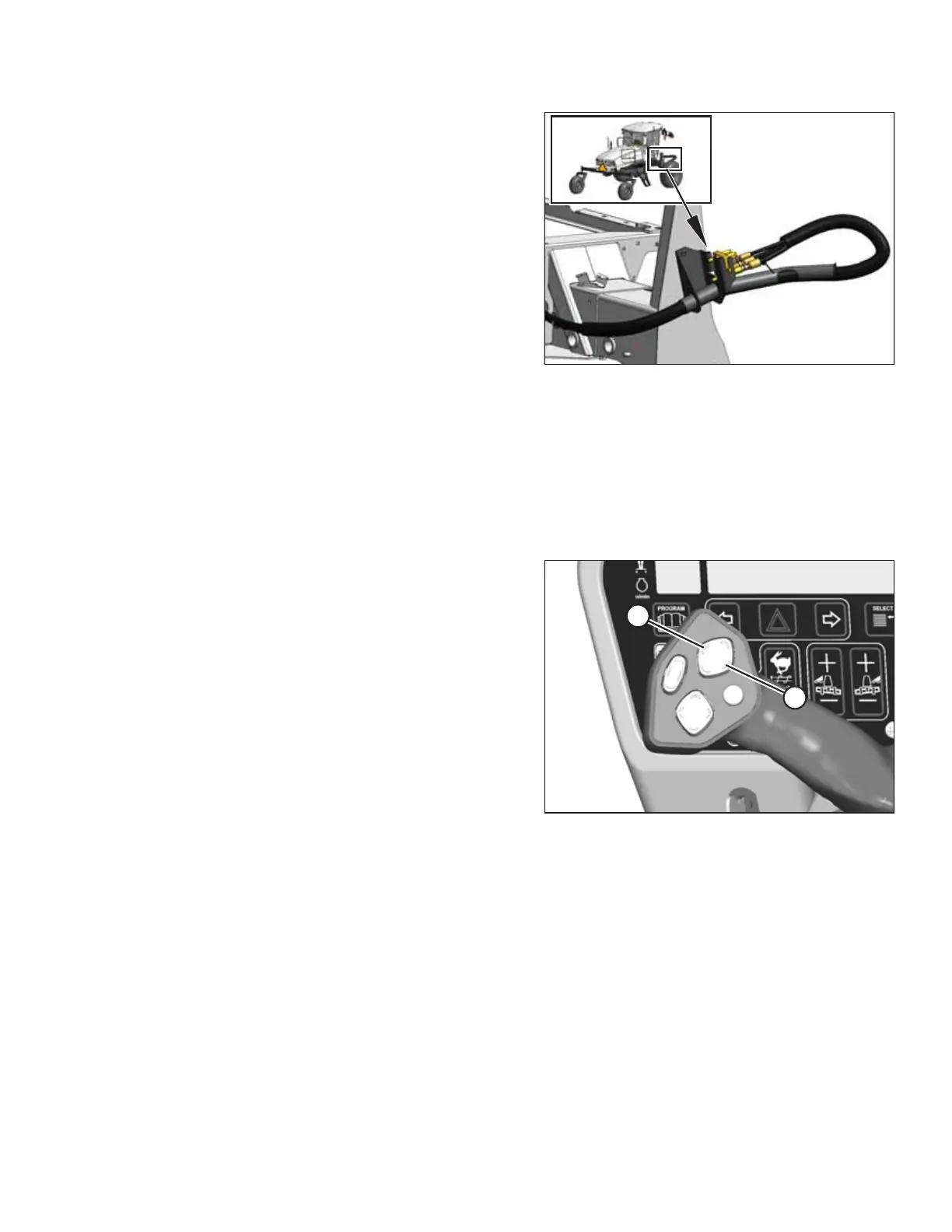

Figure 4.291: Draper Header Reel Hydraulics
There are also up to five reel drive hoses on the right
cab-forward side.
If necessary, obtain the Base kit MD #B5577 from your
MacDon Dealer. Installation instructions are supplied with
the kit.
4.6.2 Reel Settings
The header reel’ s fore-aft position, height, and speed can be changed using the controls on the ground speed lever (GSL).
4.6.3 Adjusting Reel Fore-Aft Position
The reel fore-aft position can be changed using the controls on the ground speed lever (GSL).
Figure 4.292: Ground Speed Lever
Press FORWARD switch (A) or AFT switch (B) to move the reel in
that direction.
