MacDon M155 2022 - Closing Platforms - Standard Position

215676 320 Revision A
1000412
A
B

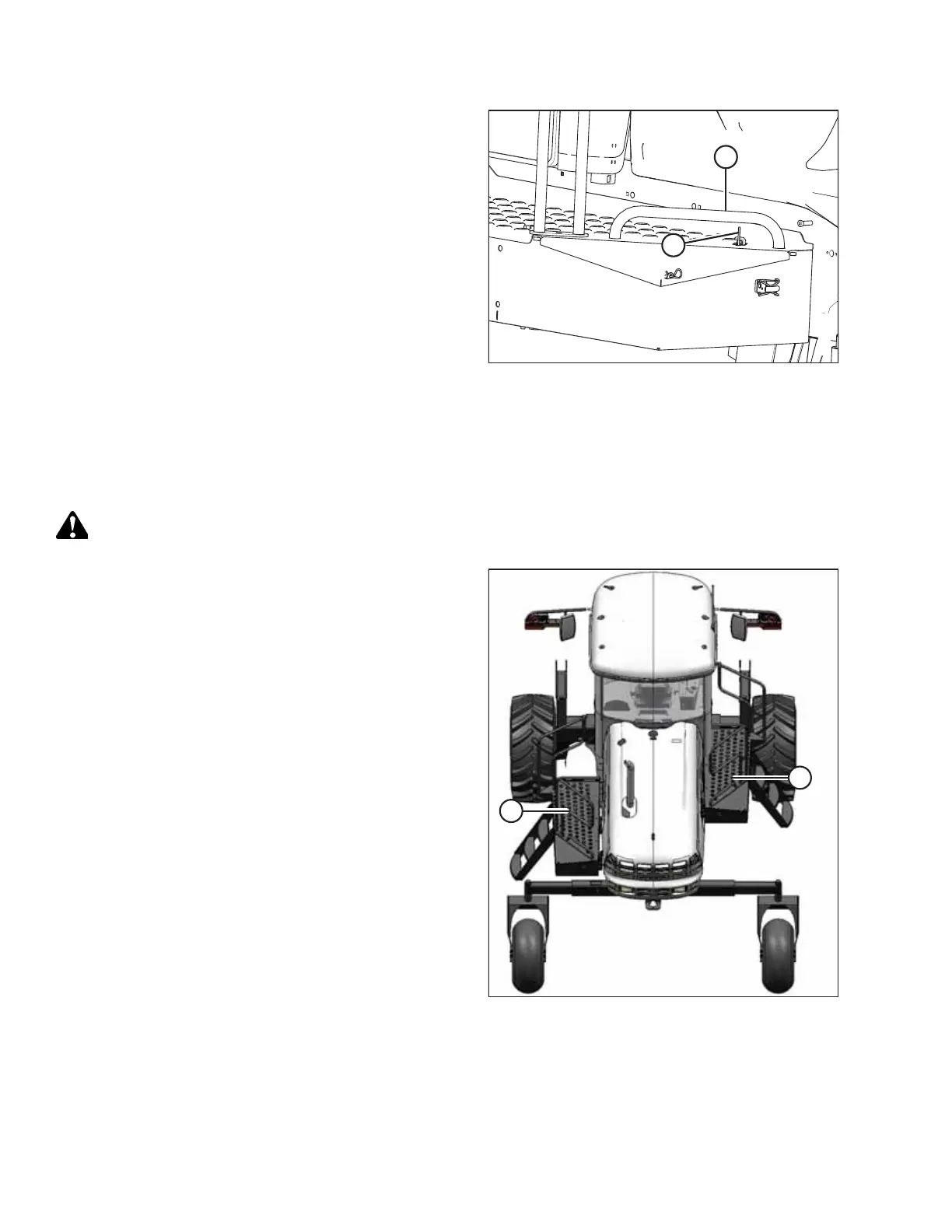

Figure 5.6: Platform Latch
1. Push latch (A) and pull platform (B) toward the walking
beam until it stops and the latch is engaged in the open
position.
NOTE:
Ensure that the platform is latched before standing on it.
5.4.2 Closing Platforms – Standard Position
This procedure describes how to close the cab-forward left platform. Follow the same procedure to close the right
platform.
CAUTION
Do NOT stand on an unlocked platform. It is unstable and may cause you to fall.
1006274
A
B
Figure 5.7: Platforms
• Left cab-forward platform (A)
• Right cab-forward platform (B)
MAINTENANCE AND SERVICING
