5.10.12 Replacing Cabin Dome Light
The cabin dome light improves visibility inside the cab. If the dome light is burnt out or damaged, it will need to be
replaced.

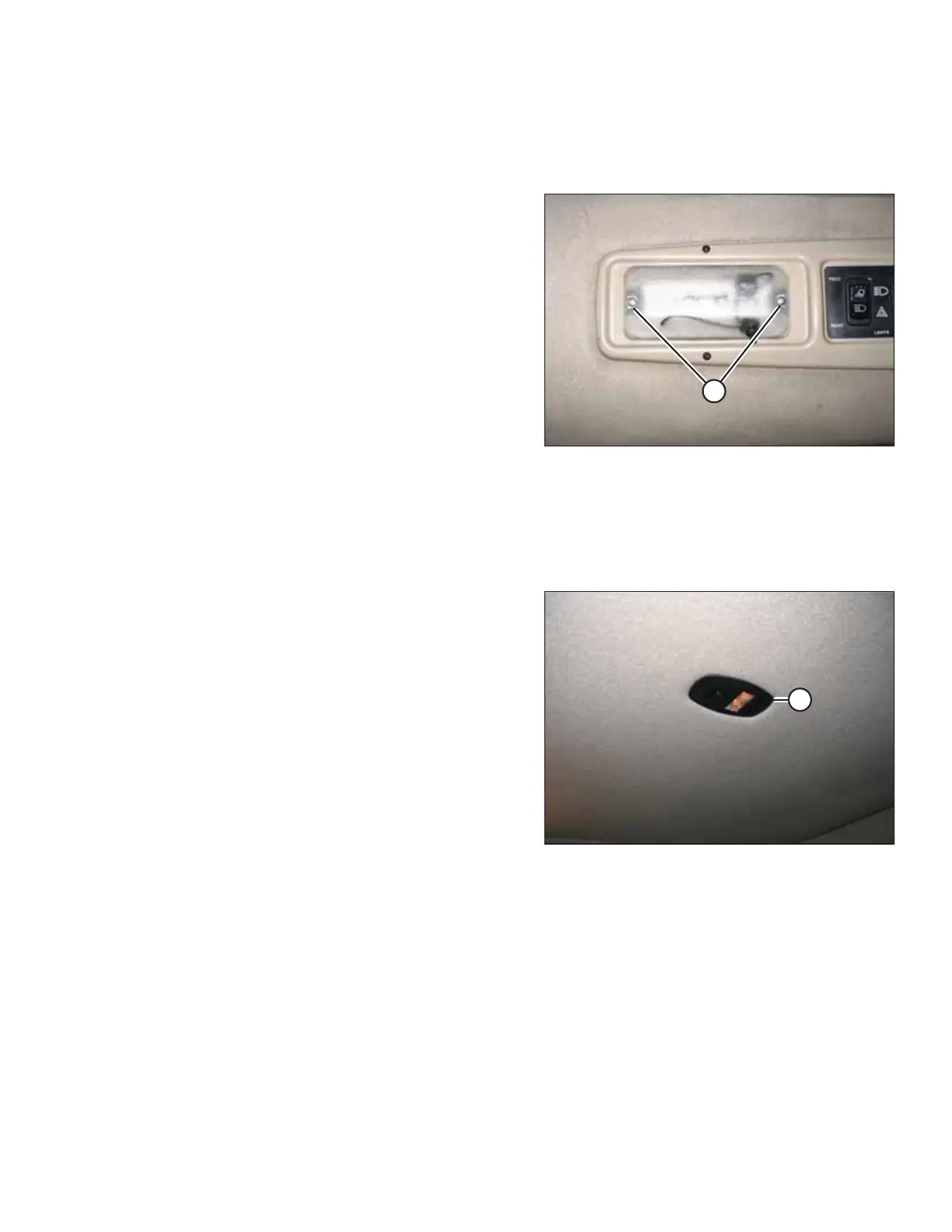

Figure 5.169: Cabin Dome Light
1. Remove two screws (A) from the dome light assembly.
Remove the assembly.
2. Disconnect the old dome light assembly from the wiring
harness.
3. Connect the new dome light (MD #183413) to the wiring
harness.
4. Install the new dome light assembly and secure it with two
screws (A).
5.10.13 Replacing Ambient Light Fixture
The ambient light fixture improves visibility inside the cab. If the ambient light is burnt out or damaged, it will need to be
replaced.
Figure 5.170: Ambient Light Fixture
1. Locate ambient light fixture (A) in the roof liner.
