Engaging and Disengaging Double Windrow Attachment
The double windrow attachment (DWA) system can be engaged or disengaged using the DWA controls on the ground
speed lever (GSL) or the DWA rocker switch on the operator’s console.

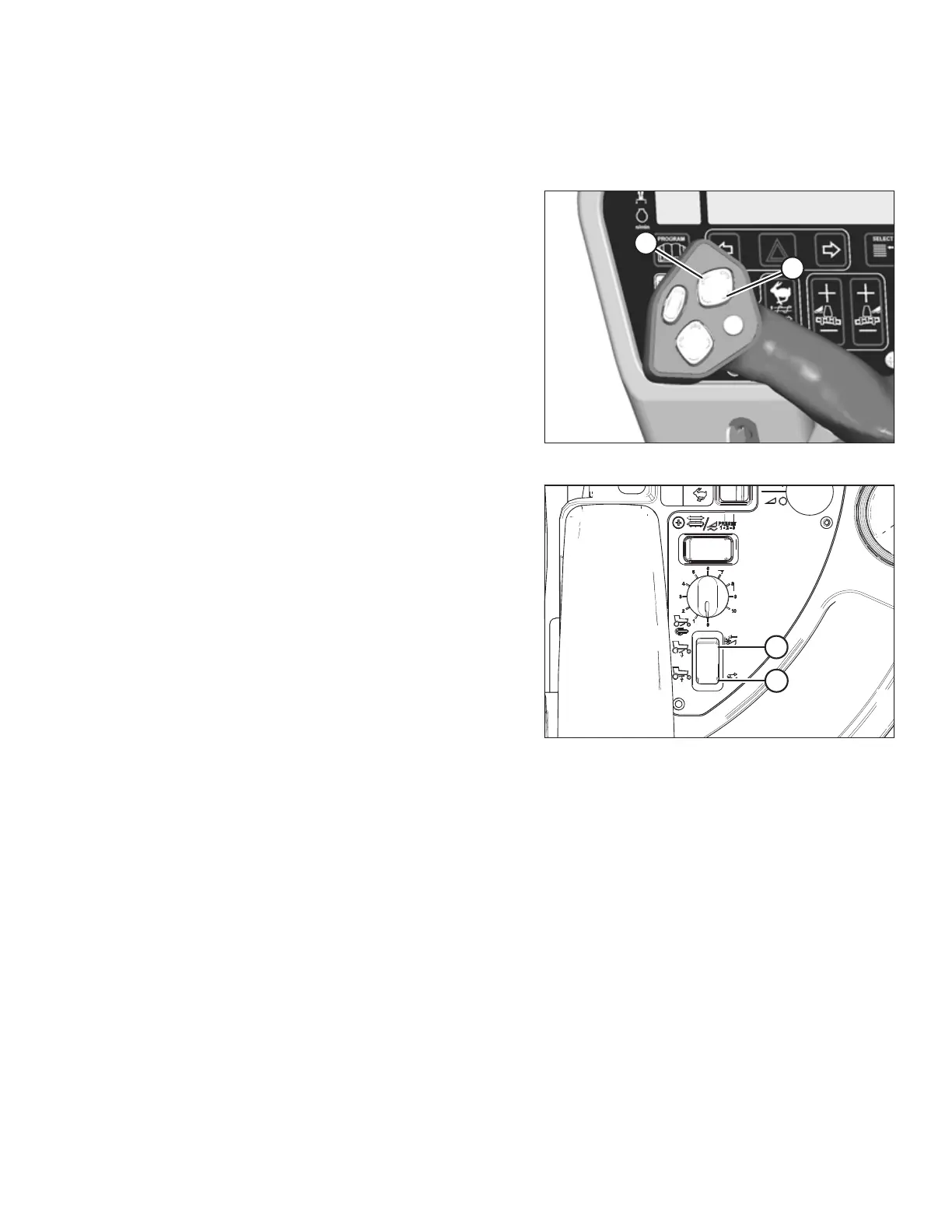

Figure 4.102: Ground Speed Lever (GSL)
The DWA is disengaged when it is fully raised, and engaged
when it is fully lowered. You can raise or lower the DWA deck
by pressing DWA DOWN button (B) or DWA UP button (A) on
the ground speed lever (GSL) or by using the rocker switch on
the operator’s console. The DWA should have been configured
to work with one or the other of these controls when it was
installed, but the configuration can be changed at any time.
Refer to Configuring Double Windrow Attachment Controls,
page 98 for instructions on how to change the DWA control
configuration.
NOTE:
The same controls are used for raising and lowering the swath
compressor, if it is installed.
Figure 4.103: Operator’s Console
The DWA can also be raised or lowered using the rocker switch
on the operator’s console, which should have been installed
when the DWA was installed on the windrower. The DWA can
be lowered by pressing rocker (A), and raised by pressing
rocker (B).
OPERATION
