20. If additional leveling is needed, repeat Steps 7, page 199 to
10, page 200 and install the removed shim on the opposite
linkage.
NOTE:
Additional shims are available from your Dealer.
1008708
A

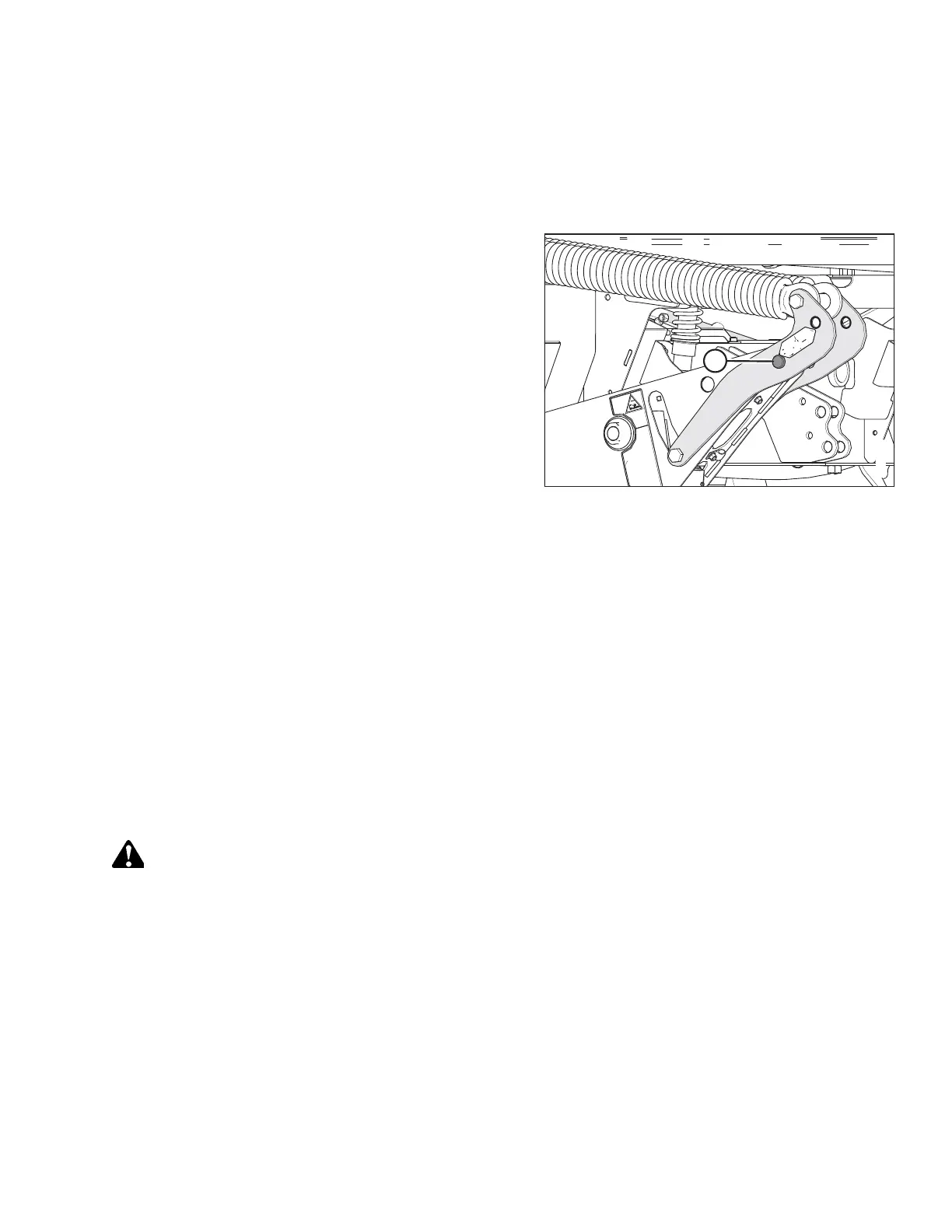

Figure 4.83: Float Pins – Engaged
21. Once the header is level, return the float pins to engaged
position (A).
NOTE:
The float does NOT require adjustment after leveling the
header.
4.4.4 Header Drive Controls
The header can be engaged, disengaged, and reversed using the controls on the operator’s console.
NOTE:
Some controls described in this section are optional equipment and may not be installed on your unit. Some controls may
be installed, but will be nonfunctional for certain header models.
Engaging and Disengaging Header
The header can be engaged and disengaged using a single switch on the operator’s console. Ensure that the throttle is set
to idle before engaging the header.
IMPORTANT:
Always move the throttle lever back to idle before engaging the header drive. Do NOT engage the header with the engine
running at full throttle.
DANGER
Ensure that all bystanders have cleared the area.
OPERATION
