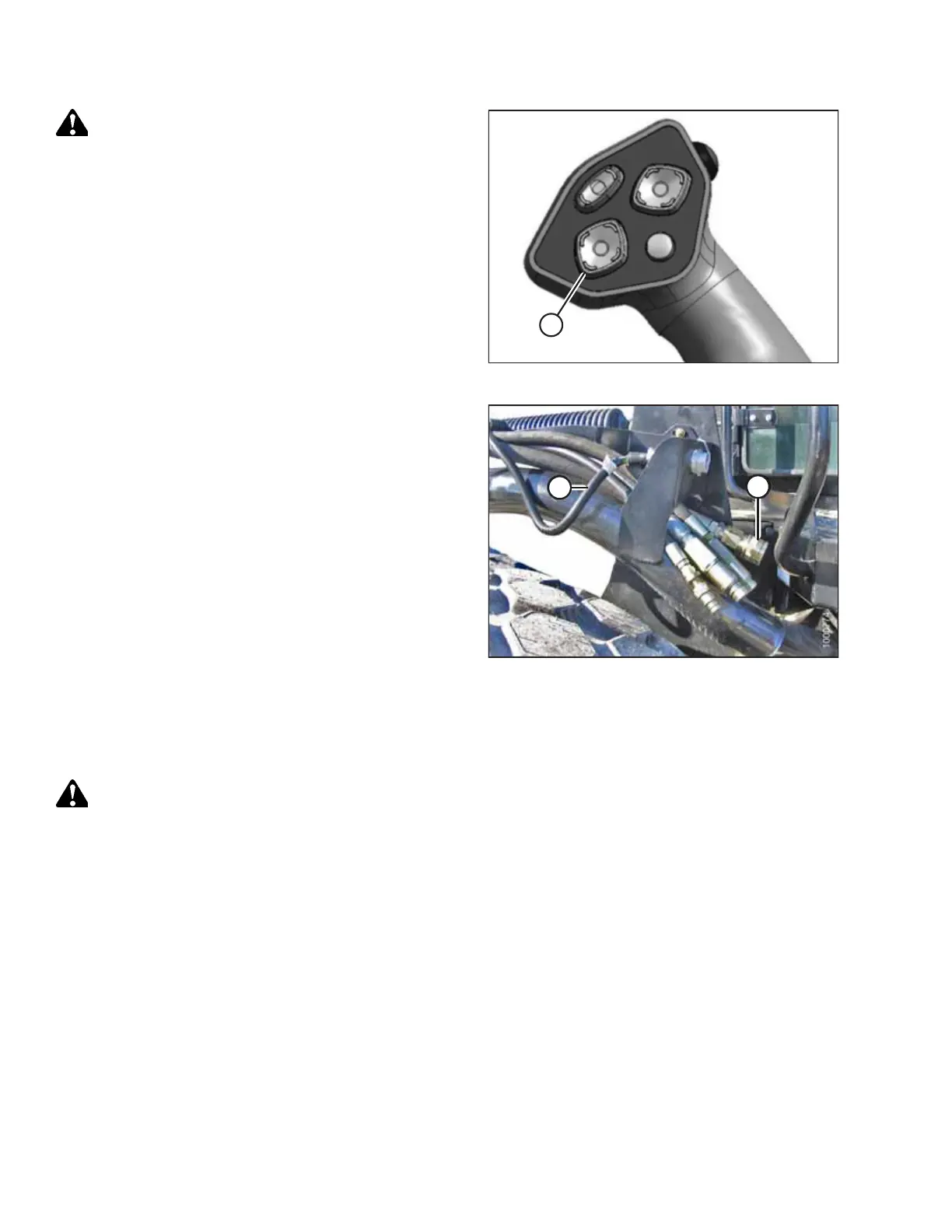

Figure 4.195: Ground Speed Lever
DANGER
Ensure that all bystanders have cleared the area.
22. Start the engine, and press HEADER DOWN switch (A) on
the GSL to fully lower the header.
23. Stop the engine, and remove the key from the ignition.
1000774
A
B
Figure 4.196: Header Drive Hoses and Harness
24. Connect header drive hoses (A) and electrical harness (B) to
the header. For instructions, refer to the header operator’s
manual.
Attaching A Series Auger Header – Mechanical Center-Link
Windrowers equipped with a mechanical center-link will have to be manually connected to the header’s center pin.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
OPERATION
