MacDon M155 2022 - Attaching a Series Auger Header - Hydraulic Center-Link Without Self-Alignment

215676 244 Revision A
1008947
A

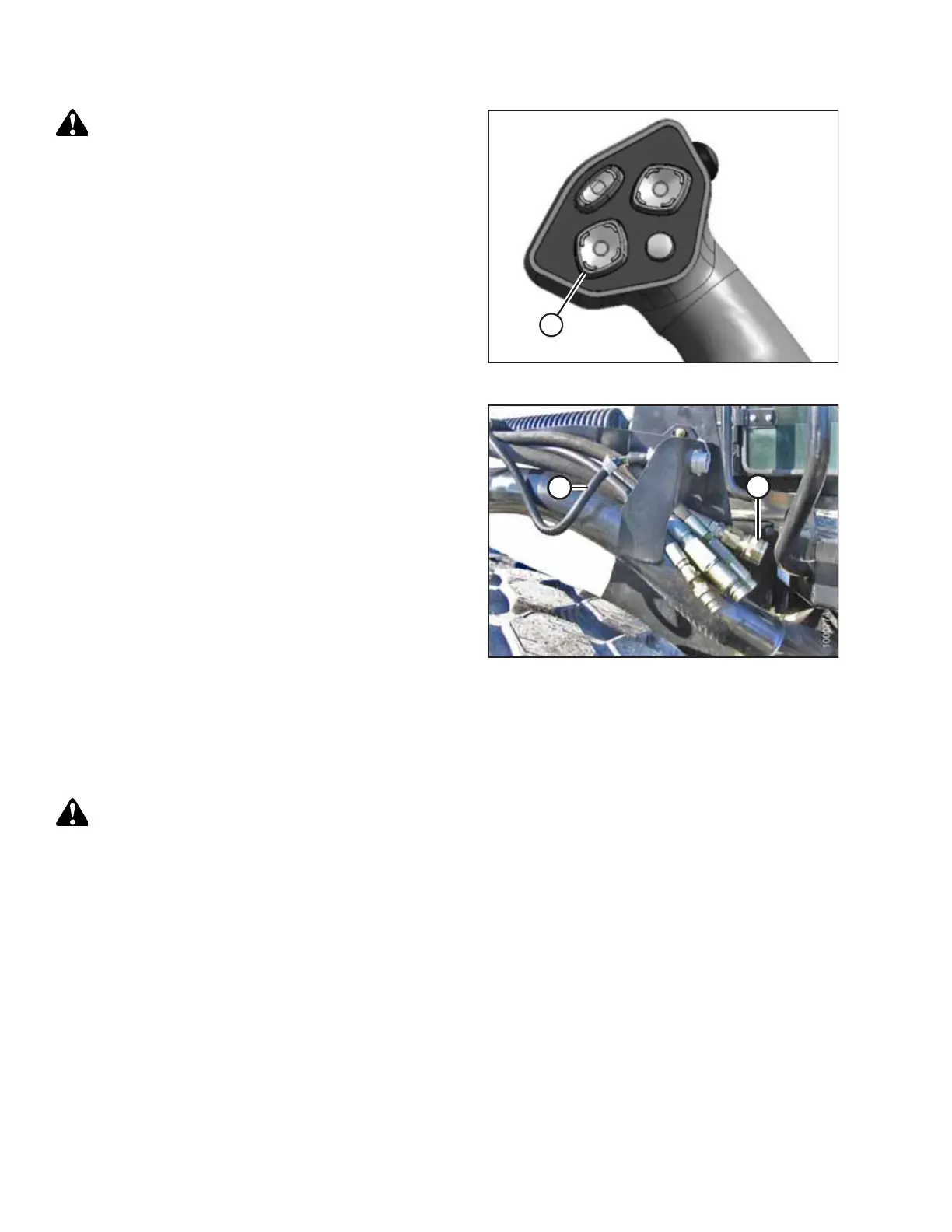

Figure 4.180: Ground Speed Lever
DANGER
Ensure that all bystanders have cleared the area.
22. Start the engine, and press HEADER DOWN switch (A) on
the GSL to fully lower the header.
23. Stop the engine, and remove the key from the ignition.
1000774
A
B
Figure 4.181: Header Drive Hoses and Harness
24. Connect header drive hoses (A) and electrical harness (B) to
the header. For instructions, refer to the header operator’s
manual.
Attaching A Series Auger Header – Hydraulic Center-Link without Self-Alignment
If the windrower is equipped with a hydraulic center-link that lacks the self-alignment capability, the Operator will have to
manually attach the hydraulic center-link’s hook to the header’s center pin.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
