215676 419 Revision A
5.11.1 Checking and Filling Hydraulic Oil
The hydraulic oil reservoir can be found in the engine bay. The hydraulic oil level can be inspected using the sight glass on
the side of the reservoir, or by using the dipstick.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Park the windrower on a level surface.
2. Lower the header fully.
3. Shut down the engine, and remove the key from the ignition.
4. Open the hood to the lower position. For instructions, refer to 5.3.1 Opening Hood – Lower Position, page 316 .

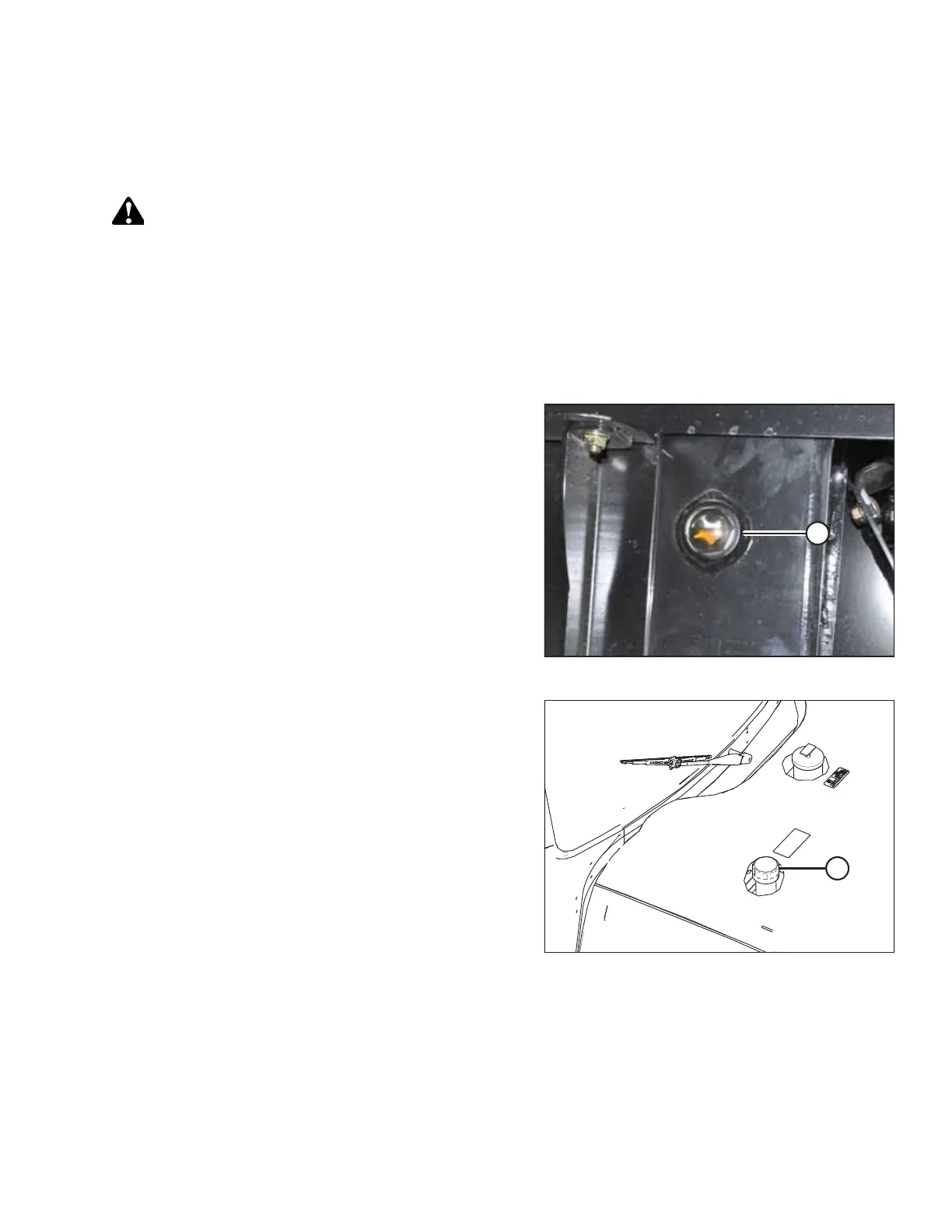

Figure 5.181: Hydraulic Oil Sight Glass
NOTE:
Sight glass (A) can be found under the hood on the right
side of the hydraulic fluid reservoir. It allows the Operator
to inspect the hydraulic oil to determine its level. If there is
no oil visible in the sight glass, then oil must be added to
the hydraulic oil reservoir.
Figure 5.182: Engine Hood
5. Stand on the left cab-forward platform to access the
filler pipe.
6. Clean cap (A) and the surrounding area.
7. Turn filler cap (A) counterclockwise to unlock the cap.
Remove the dipstick.
MAINTENANCE AND SERVICING
