MacDon M155 2022 - Detaching a Series Auger Header; Detaching a Series Auger Header - Hydraulic Center-Link

215676 255 Revision A
1000774
A
B

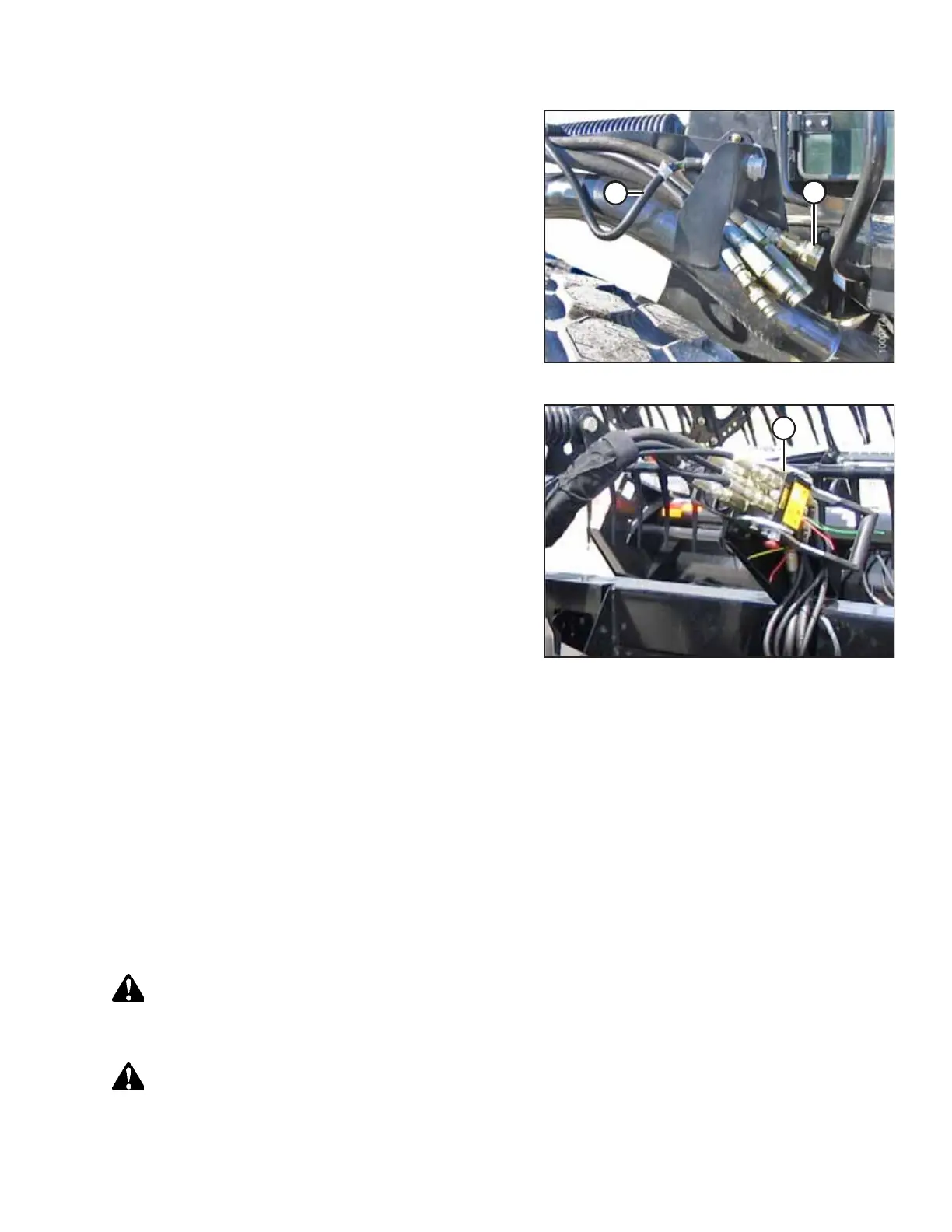

Figure 4.208: Header Drive Hoses and Harness
22. Connect header drive hoses (A) and electrical harness (B) to
the header. For instructions, refer to the header operator’s
manual.
1000775
A
Figure 4.209: Reel Hydraulics
23. Connect reel hydraulics (A) at the right cab-forward side of
the windrower. For instructions, refer to the draper header
operator’s manual.
4.5.5 Detaching A Series Auger Header
Detaching a header from the windrower involves removing the header’s mechanical connection to the windrower and
disconnecting the hydraulic and electrical connections.
Refer to the procedure applicable to the center-link installed on the windrower:
• Detaching A Series Auger Header – Hydraulic Center-Link, page 255
• Detaching A Series Auger Header – Mechanical Center-Link, page 259
Detaching A Series Auger Header – Hydraulic Center-Link
Detaching an A Series Auger Header from the windrower requires lowering the header stand, removing the leg pins,
disengaging the float springs, and disconnecting the electrical and hydraulic connectors.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
DANGER
Ensure that all bystanders have cleared the area.
OPERATION
