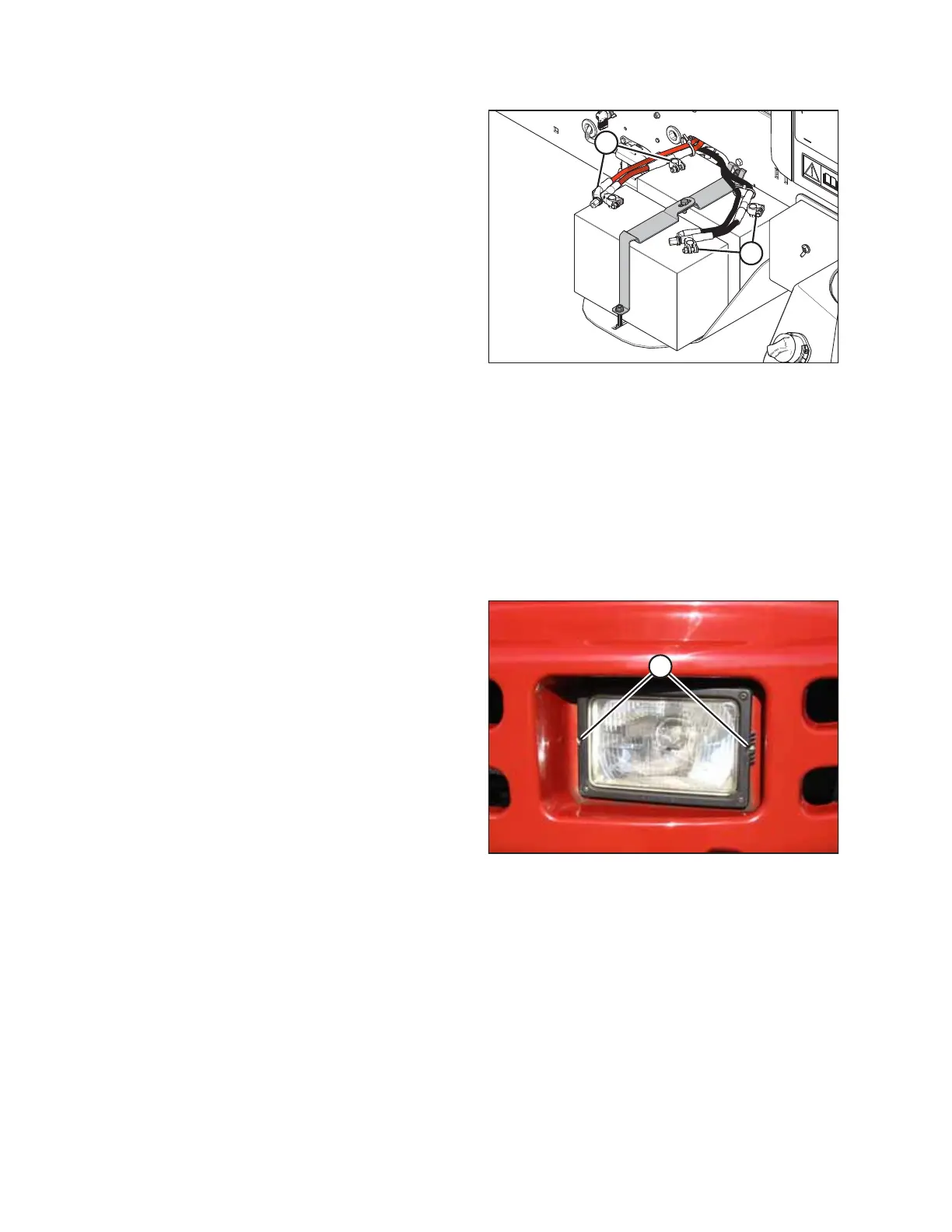

Figure 5.133: Batteries
4. Remove the plastic caps from the battery posts.
5. Attach the red positive (+) cable terminals to positive
posts (A) on the batteries and tighten the clamps.
Reposition the plastic covers onto the clamps.
6. Attach the black negative (–) cable terminals to negative
posts (B) on the batteries and tighten the clamps.
Reposition the plastic covers onto the clamps.
7. Turn the battery main disconnect switch to the POWER ON
position.
8. Close the platform. For instructions, refer to 5.4.2 Closing
Platforms – Standard Position, page 320.
5.10.3 Headlights – Engine-Forward
These lights sit at the end of the engine compartment. They are used as headlights when the windrower is operating in
engine-forward mode.
Replacing Headlight Bulb
If a headlight bulb is burnt out or damaged, it will need to be replaced.
Use part MD #110267 to replace burnt out or damaged headlight bulbs.
1000845
A
Figure 5.134: Headlight
1. Remove two screws (A). Remove the headlight assembly
from the hood.
