3.3.3 Adjusting Vertical Dampener
The vertical dampener regulates the degree of shock absorption the seat provides in the up-and-down plane.

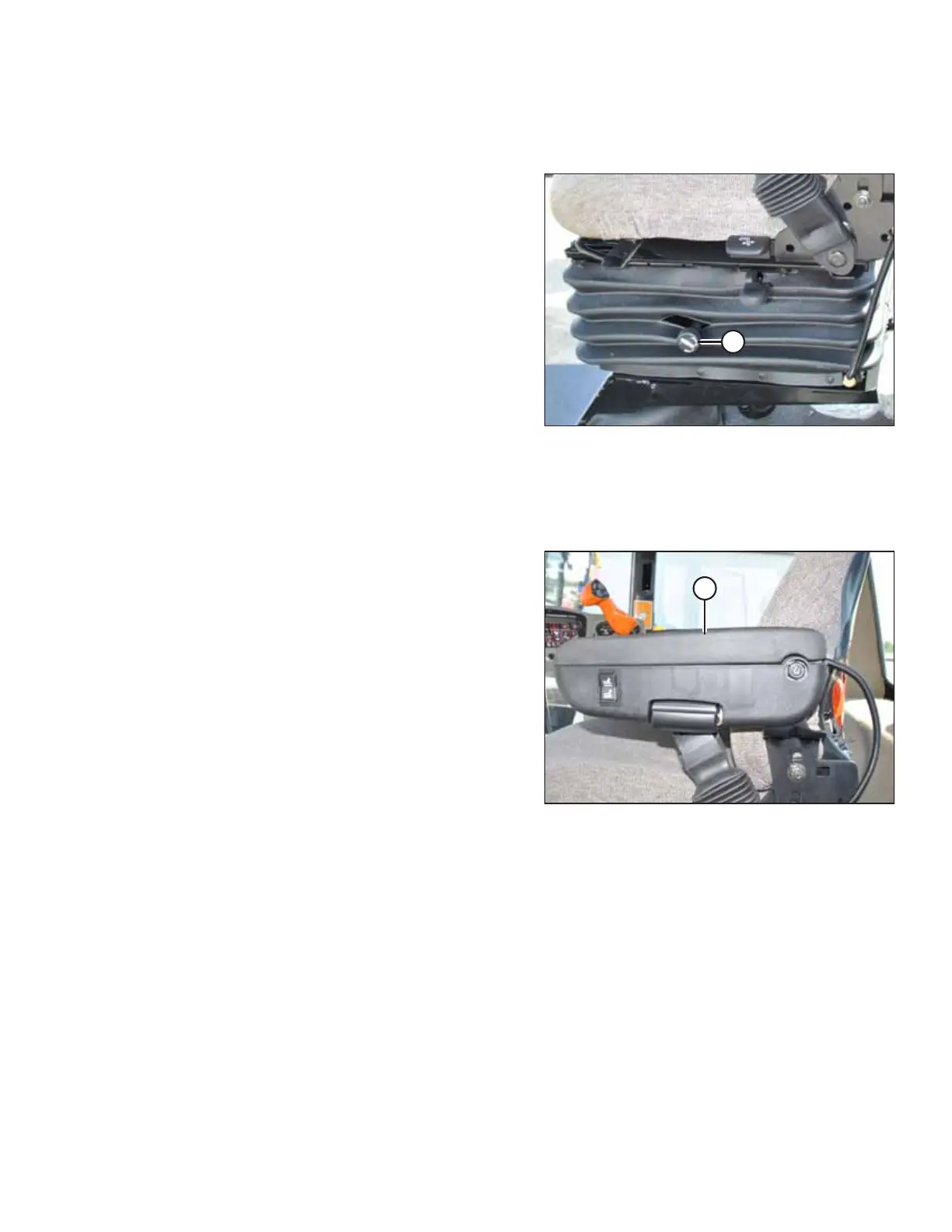

Figure 3.6: Vertical Dampener
To increase the seat’s vertical dampening, turn knob (A)
counterclockwise.
To decrease the seat’s vertical dampening, turn knob (A)
clockwise.
3.3.4 Adjusting Armrest
The armrest can be put into the raised or the lowered position to facilitate access to the seat.
Figure 3.7: Armrest
Raise armrest (A) so that the seat can be more easily accessed.
Lower armrest (A) after sitting down and buckling the
operator’s safety belt.
