215676 416 Revision A
Inspecting and Replacing 125A Main Fuses
The 125A main fuse holders are located on the frame under the right cab-forward platform beside the battery.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Stop the engine, and remove the key from the ignition.
2. Move the right cab-forward platform aftward.

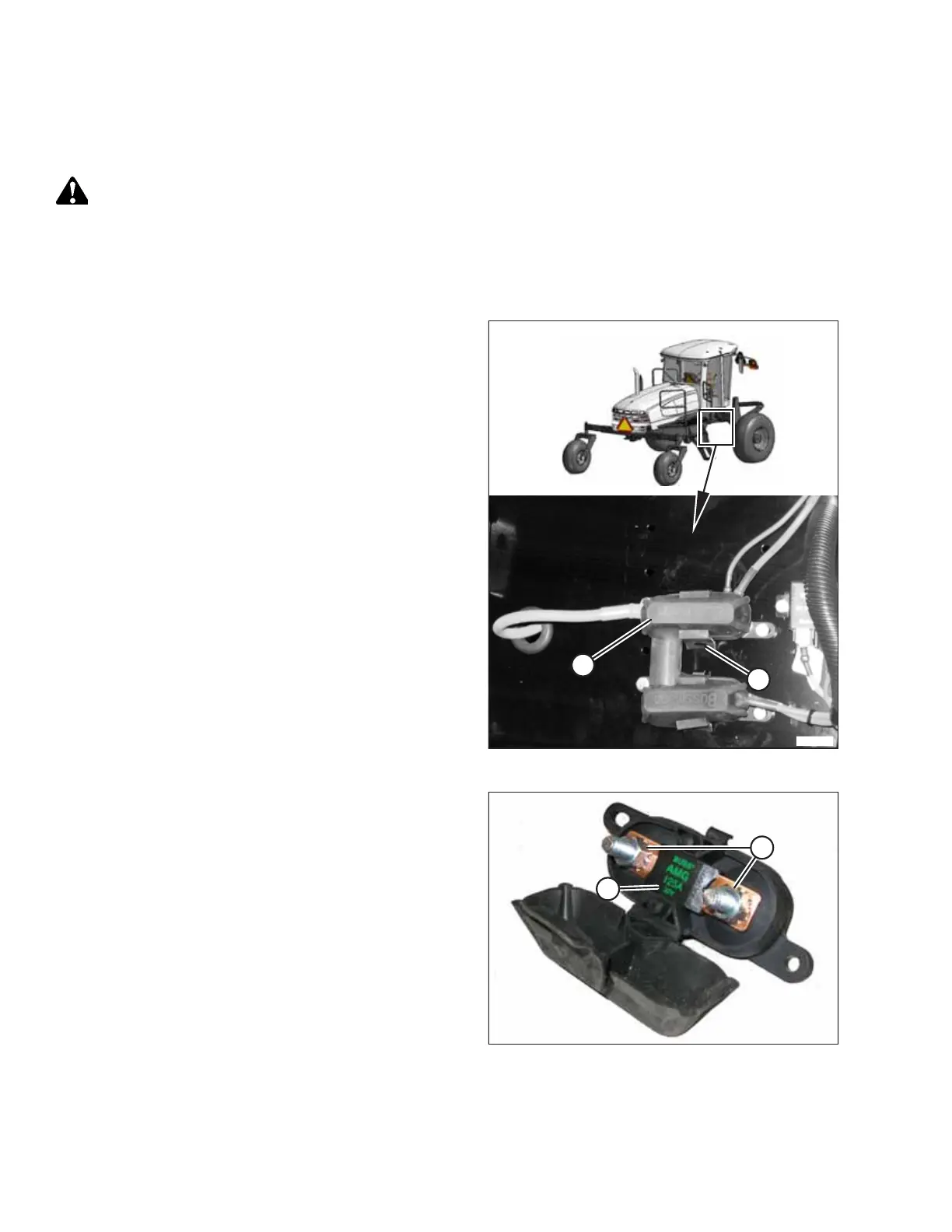

Figure 5.176: 125A Main Fuses
3. To check the condition of a fuse, pull tab (A) and open
cover (B).
Figure 5.177: 125A Main Fuse
4. Inspect fuse (A) for evidence of damage.
5. If the fuse is damaged, it will need to be removed. To
remove fuse (A), remove two nuts (B) and pull the fuse free
from its holder.
NOTE:
The existing wiring may need to be pulled off of the
stud first.
6. Install the new fuse, along with any wiring that was
removed to access the fuse.
7. Secure the fuse with nuts (B).
MAINTENANCE AND SERVICING
