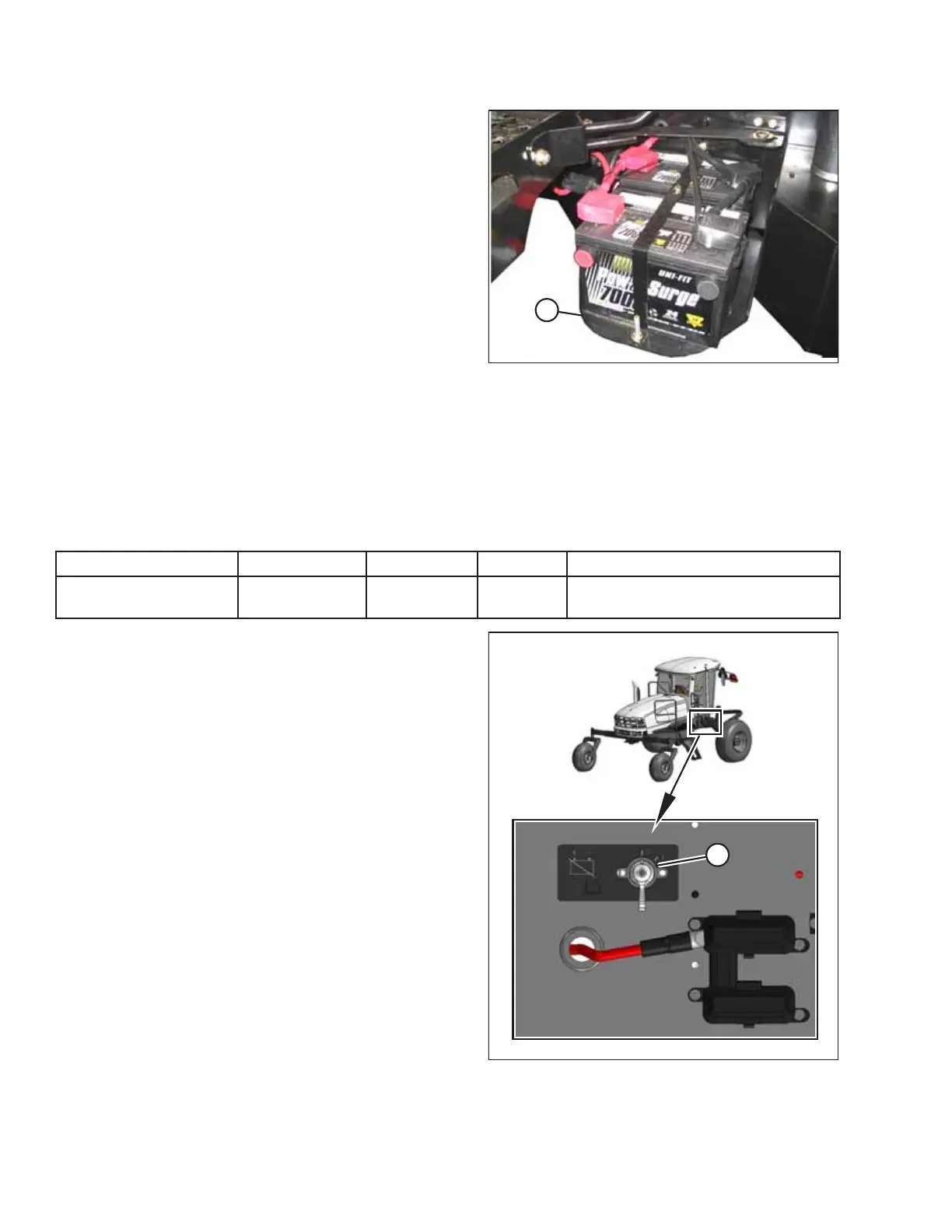

Figure 5.129: Battery Holder
8. Lift the batteries off of holder (A).
IMPORTANT:
• Store the batteries in a cool, dry area in an upright
position.
• Do NOT stack batteries on top of each other unless they
are in cartons.
• Test wet batteries every 4–6 months. Recharge them if
necessary.
NOTE:
The dual battery support can be removed from the frame
by simply lifting the support, and pulling it away from
the frame.
Installing Batteries
The batteries must be placed in the windrower’s dual battery support tray and connected to the windrower’s electrical
system.
Replacement batteries must meet the specifications shown in the following table:
Table 5.2 Battery Specification
Rating
Group
CCA (min)
Volt
Maximum Dimension
Heavy duty, off-road,
vibration resistant
BCI 29H or 31A 650
12
334 x 188 x 232 mm
(13.25 x 7.37 x 9.44 in.)
Figure 5.130: Battery Main Disconnect Switch
1. Ensure that battery main disconnect switch (A) is turned to
the POWER OFF position.
NOTE:
The battery main disconnect switch is located on the right
frame rail beside the batteries.
2. Open the right cab-forward platform to access the
batteries. For instructions, refer to 5.4.1 Opening Platforms
– Standard Position, page 319.
3. Remove the cable ties securing the battery cables to the
battery clamp.
