CAUTION
Do NOT attempt to service a battery unless you have the proper equipment and training for the task. Have the
windrower’s batteries serviced by a MacDon Dealer.
1. Shut down the engine, and remove the key from the ignition.
2. Move the platform on the right cab-forward side of the machine to the open position. For instructions, refer to 5.4.1
Opening Platforms – Standard Position, page 319.
1006037
A

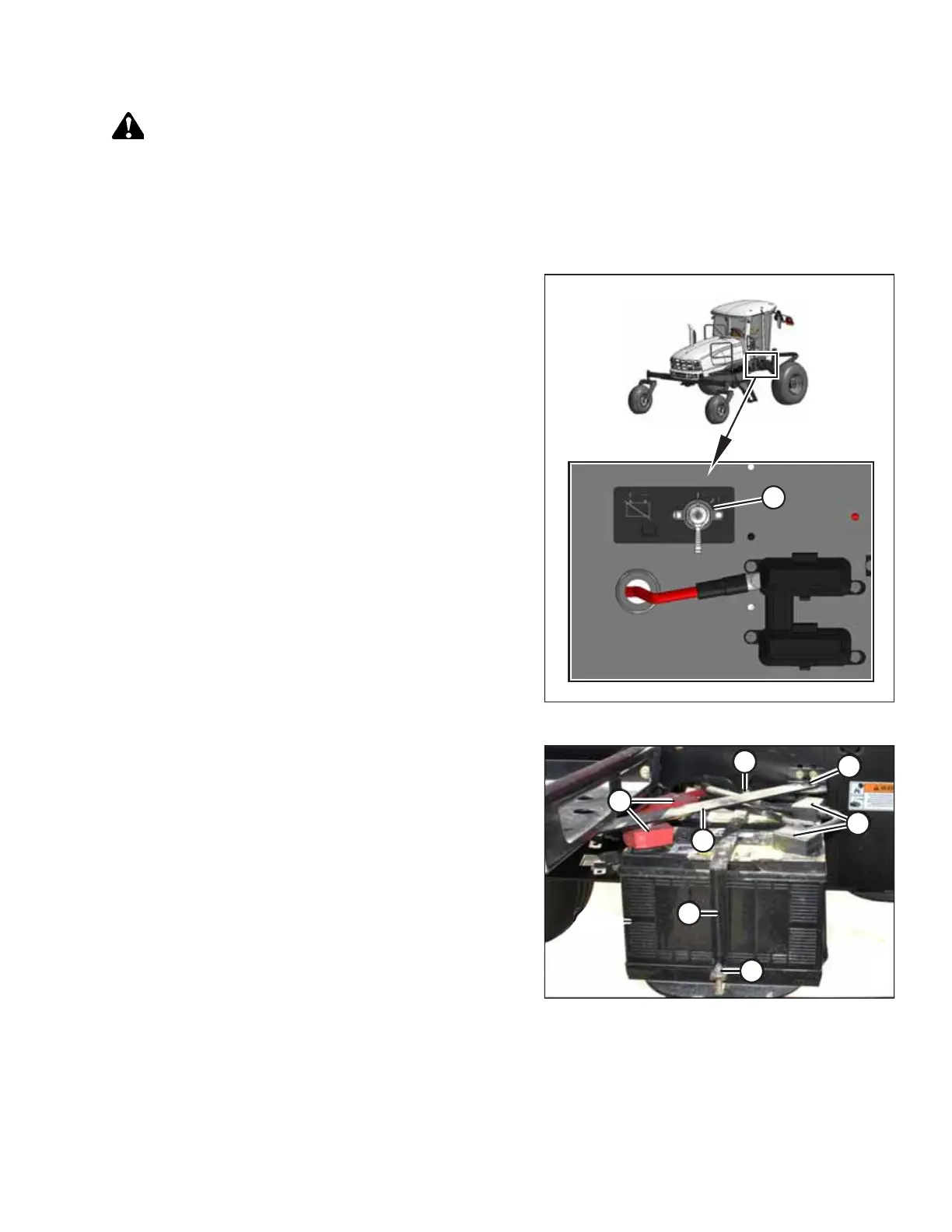

Figure 5.127: Battery Main Disconnect Switch
3. Ensure battery main disconnect switch (A) is turned to the
POWER OFF position.
NOTE:
The battery main disconnect switch is located on the right
frame rail beside the batteries.
1023971
A
B
C
D
E
E
F
Figure 5.128: Batteries
4. Remove bolt (A) securing the platform arm to the platform.
Swing arm (B) out of the way.
5. Remove the black plastic covers from negative cable
clamps (D). Loosen the clamps and disconnect the cable
from the batteries.
6. Remove the red plastic covers from positive cable
clamps (C). Loosen the clamps and disconnect the cable
from the batteries.
7. Remove bolts (E) securing strap (F) to the frame, and
remove the strap.
