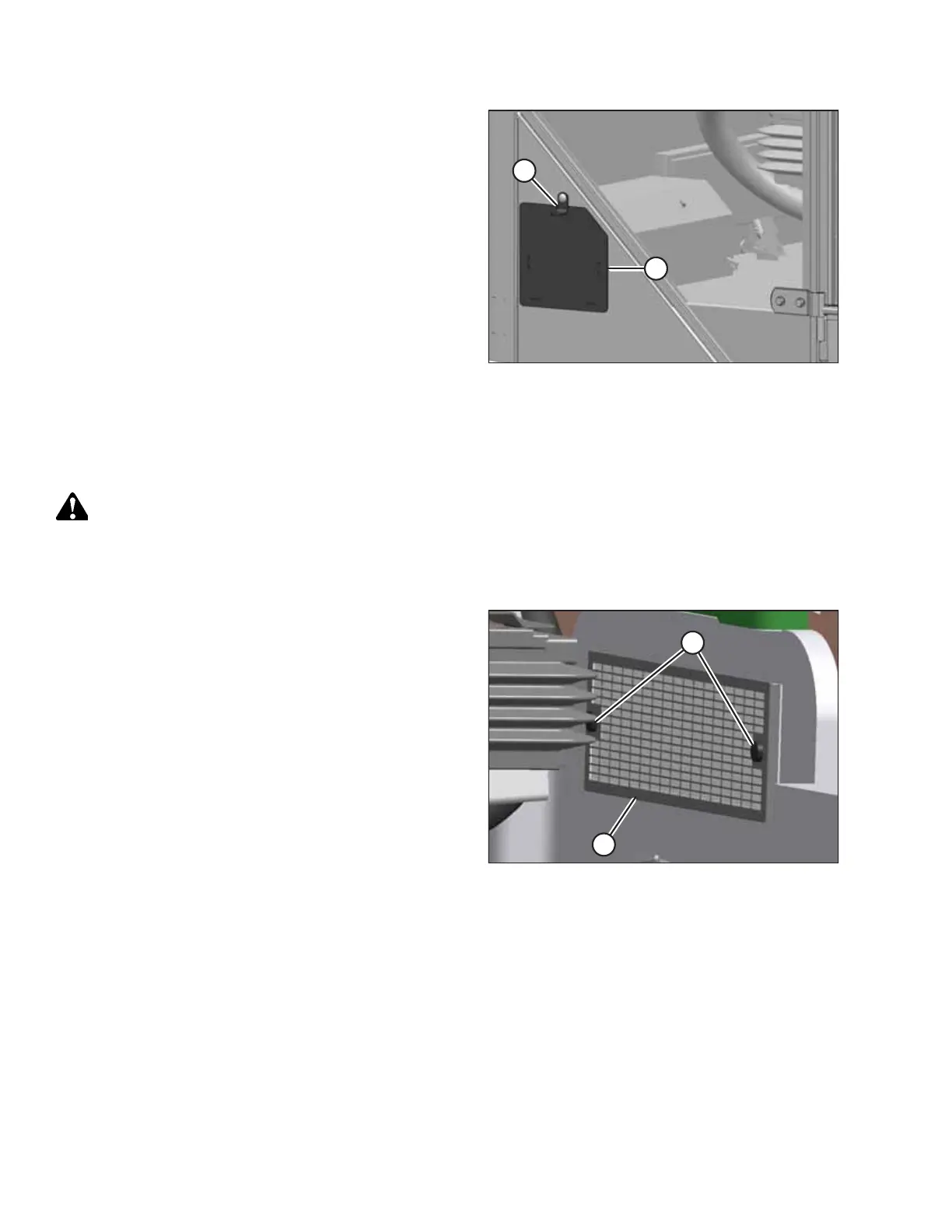

Figure 5.32: Cab Fresh Air Filter Access
3. Slide filter tray (B) into the housing.
NOTE:
If necessary, move the Global Positioning System (GPS)
wiring harnesses to the left engine-forward side of the
housing before inserting the filter tray.
4. Close and latch housing door (A).
5.8.2 Servicing Return Air Cleaner/Filter
Before the return air filter can be cleaned and inspected, it must be removed from the windrower’s cab.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
If you intend to replace the return air filter, refer to 8.2.4 Filter Part Numbers, page 478 for the appropriate part number.
1000132
A
B
Figure 5.33: Return Air Filter
1. Unscrew two knobs (A) attaching the cover and the filter to
the cab wall. Remove the cover and remove filter
assembly (B).
