3.19 Cab Display Module
The cab display module (CDM) is a computer located on the windrower operator’s console. It is used to configure and
operate the windrower and its attachments. It also supplies the Operator with information about the windrower’s
performance and alerts them to any problems encountered during operation.
3.19.1 Engine and Windrower Functions
The cab display module (CDM) is used to control and report on several windrower functions, such as whether or not the
hazard lights are on, and to report engine performance data such as engine speed to the Operator.

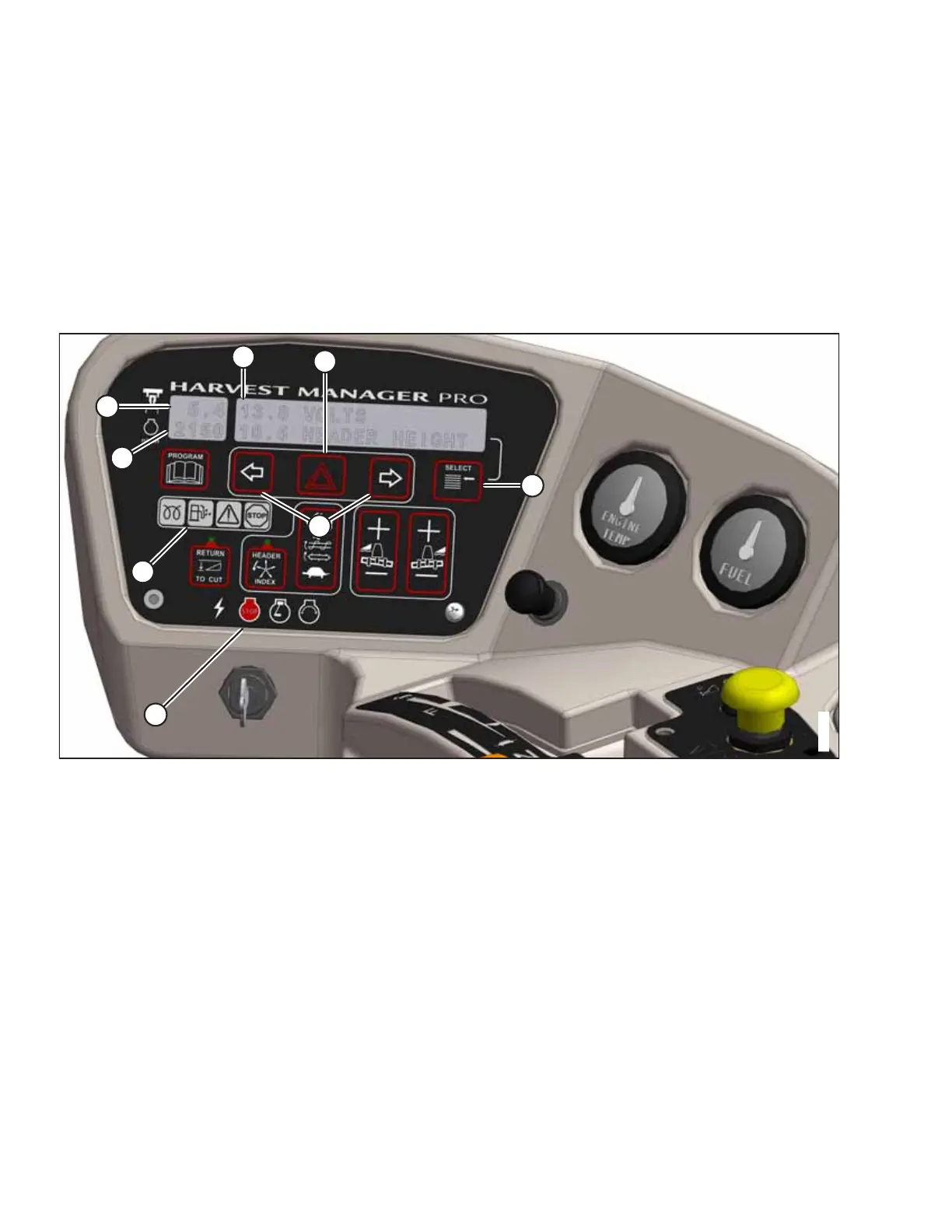

Figure 3.57: Cab Display Module (CDM) Engine and Windrower Functions
• ENGINE RPM (A)
• GROUND SPEED (B) – km/h or mph
• DISPLAY (C) – Reports windrower performance data
• HAZARD LIGHTS SWITCH (D) – Activates the hazard warning lights; can also be used to cancel an active turn signal
• SELECT SWITCH (E) – Allows the Operator to select a display item on the lower line. Push the switch to SELECT a
highlighted option
• TURN SIGNAL SWITCHES (F) – Activates the turn signals on the windrower and on the header. Push the switch to turn
the turn signal ON, and push it again to turn it OFF
• IGNITION SWITCH POSITIONS (G) – Depending on the position of the ignition key in the ignition cylinder, the relevant
icon will be highlighted: Accessory / Stop / Run / Start
• ENGINE WARNING LIGHTS (H) – These lights report on the state of the engine, or offer warnings about its performance:
Engine Pre-Heat / Water In Fuel / CAUTION / Stop Engine
OPERATOR’S STATION
