MacDon M155 2022 - Detaching D or D1 Series Draper Header - Mechanical Center-Link

215676 235 Revision A
1000758
A
B

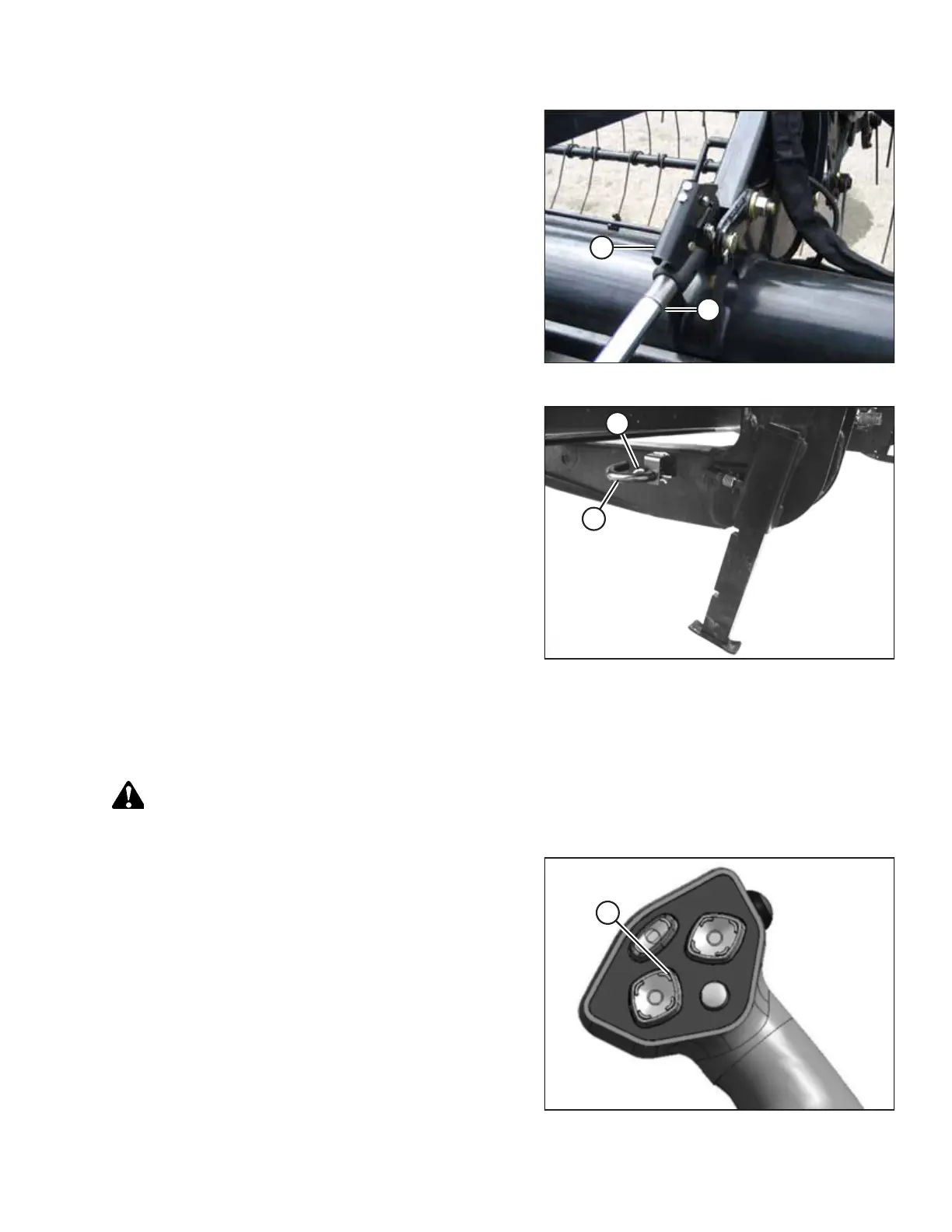

Figure 4.156: Hydraulic Center-Link
17. Disconnect the center-link by lifting release (B) and hook (A)
off of the header.
NOTE:
If the optional center-link self-alignment kit is installed, lift
release (B) and then operate the link lift cylinder using the
REEL UP switch on the GSL to disengage the center-link
from the header.
NOTE:
If a hay conditioner is installed, ensure that it clears the
windrower legs when the windrower is reversed.
1000786
A
B
Figure 4.157: Header Stand
18. Reinstall pin (A) into the header leg and secure it with
hairpin (B).
Detaching D or D1 Series Draper Header – Mechanical Center-Link
To detach a D Series header from an M Series windrower equipped with mechanical center-link, follow these steps:
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1008946
A
Figure 4.158: Ground Speed Lever
1. Start the engine and press HEADER UP (A) switch to raise
header to maximum height.
2. If one end of the header does NOT raise completely,
rephase the cylinders as follows:
a. Press and hold the HEADER UP (A) switch on the
ground speed lever (GSL) until both cylinders stop
moving.
b. Continue to hold the switch for 3–4 seconds. The
cylinders are now phased.
3. Shut down the engine, and remove the key from
the ignition.
OPERATION
