215676 234 Revision A

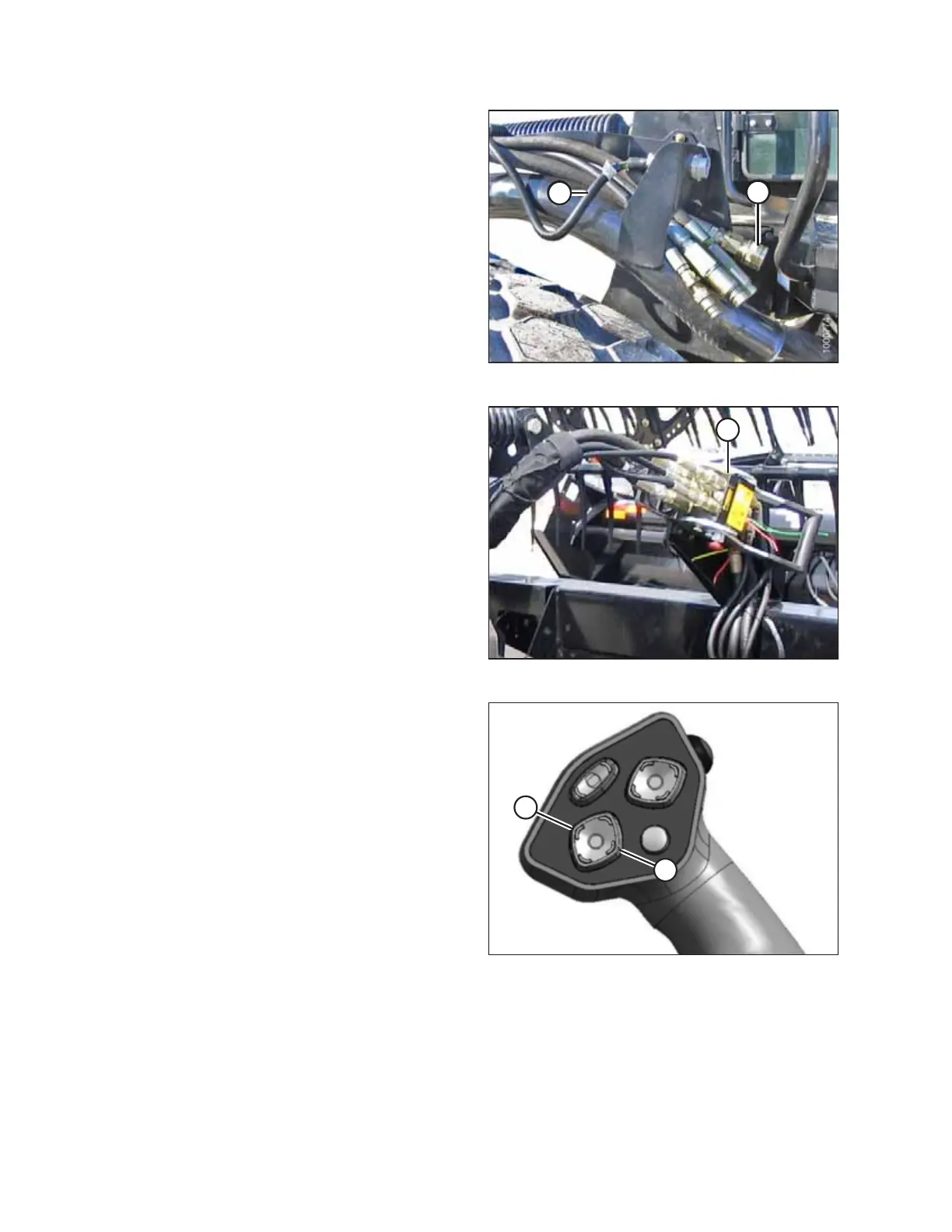

Figure 4.153: Header Drive Hydraulics
13. Disconnect header drive hydraulics (A) and electrical
harness (B) from the header and store them in the support
on the windrower’s left cab-forward side. Refer to the
draper header operator’s manual for further information.
Figure 4.154: Reel Hydraulics
14. Disconnect reel hydraulics (A) from the header and store
the connector on the bracket on the windrower’s left cab-
forward side. Refer to the draper header operator’s manual
for further information.
Figure 4.155: Ground Speed Lever
15. Start the engine.
16. Activate HEADER TILT UP switch (A) or HEADER TILT DOWN
switch (B) on the ground speed lever (GSL) to relieve the
load on the center-link cylinder.
OPERATION
