MacDon M155 2022 - Windrower Dimensions

215676 32 Revision A

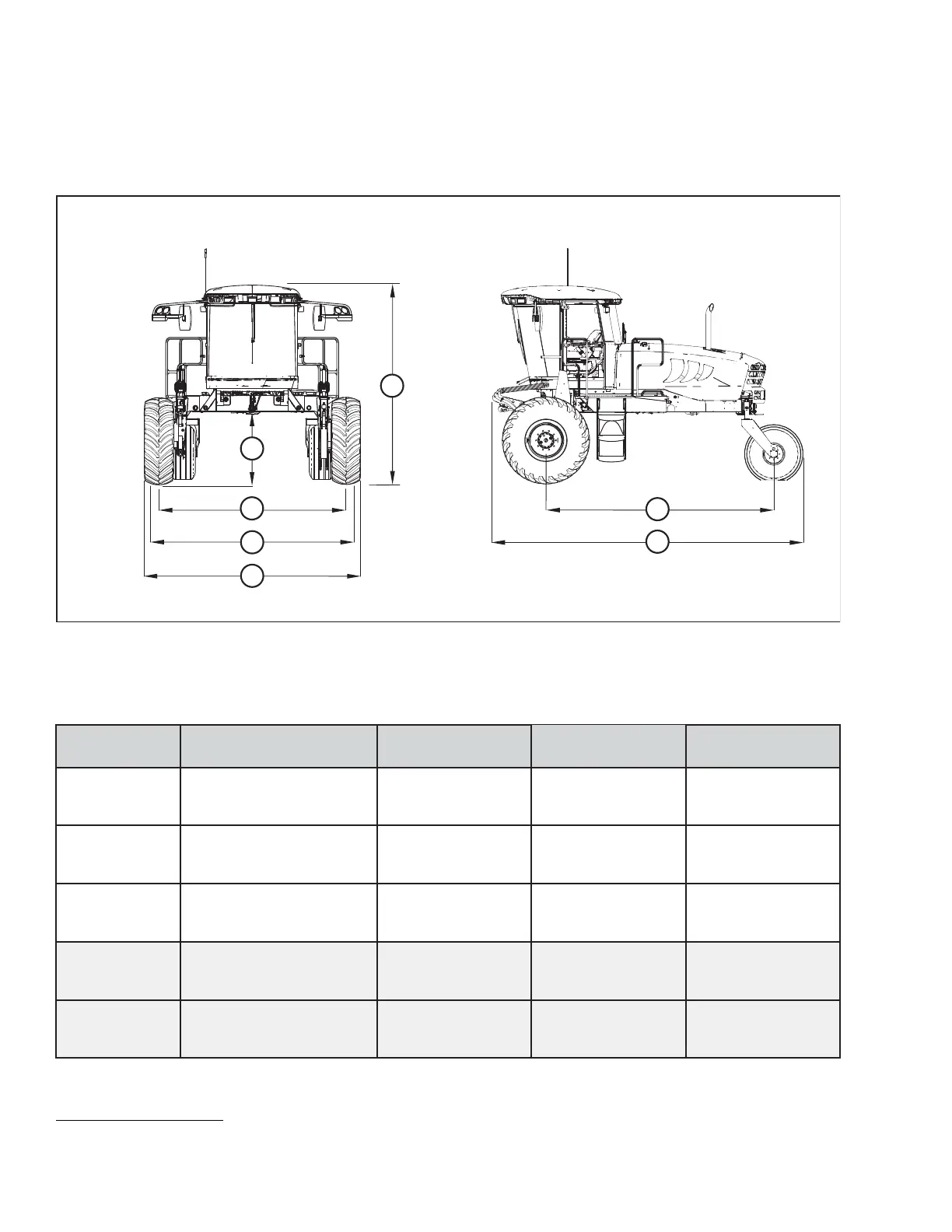

2.3 Windrower Dimensions
The length and width of your windrower can be specified in several ways, including frame width, wheel-to-wheel width,
frame length, and total length.
1035658
A
B
C
D
E
F
G
A - Drive Tire Tread B - Drive Tire Hubs
C - Drive Tires D - 1160 mm (45 3/4 in.)
E - 3378 mm (133 in.) F - 4022 mm (158 5/16 in.)
G - 5280 mm (207 7/8 in.)
Table 2.2 Drive Tires
Tire Size
Wheel Position
Tread (A)
mm (in.)
Hubs (B)
mm (in.)
Tires (C)
mm (in.)
18.4 x 26
bar and turf
narrow track
4
Inner/outer (shipping)
3144 (123 3/4) 3571 (140 9/16) 3644 (143 7/16)
18.4 x 26
bar and turf
narrow track
4
Outer/outer
3324 (130 7/8) 3751 (147 11/16) 3824 (150 5/8)
18.4 x 26
bar and turf
narrow track
4
Inner/inner
2964 (116 11/16) 3391 (133 1/2) 3464 (136 3/8)
18.4 x 26
bar and turf
wide track
4
Inner/outer (shipping) 3319 (130 11/16) 3571 (140 9/16) 3819 (150 3/8)
18.4 x 26
bar and turf
wide track
4
Outer/outer
3499 (137 3/4) 3751 (147 11/16) 3999 (157 7/16)
PRODUCT OVERVIEW
4. Only 18.4 x 26 tires are compatible with the 4.0 m (13 ft.) R80 and R85.
