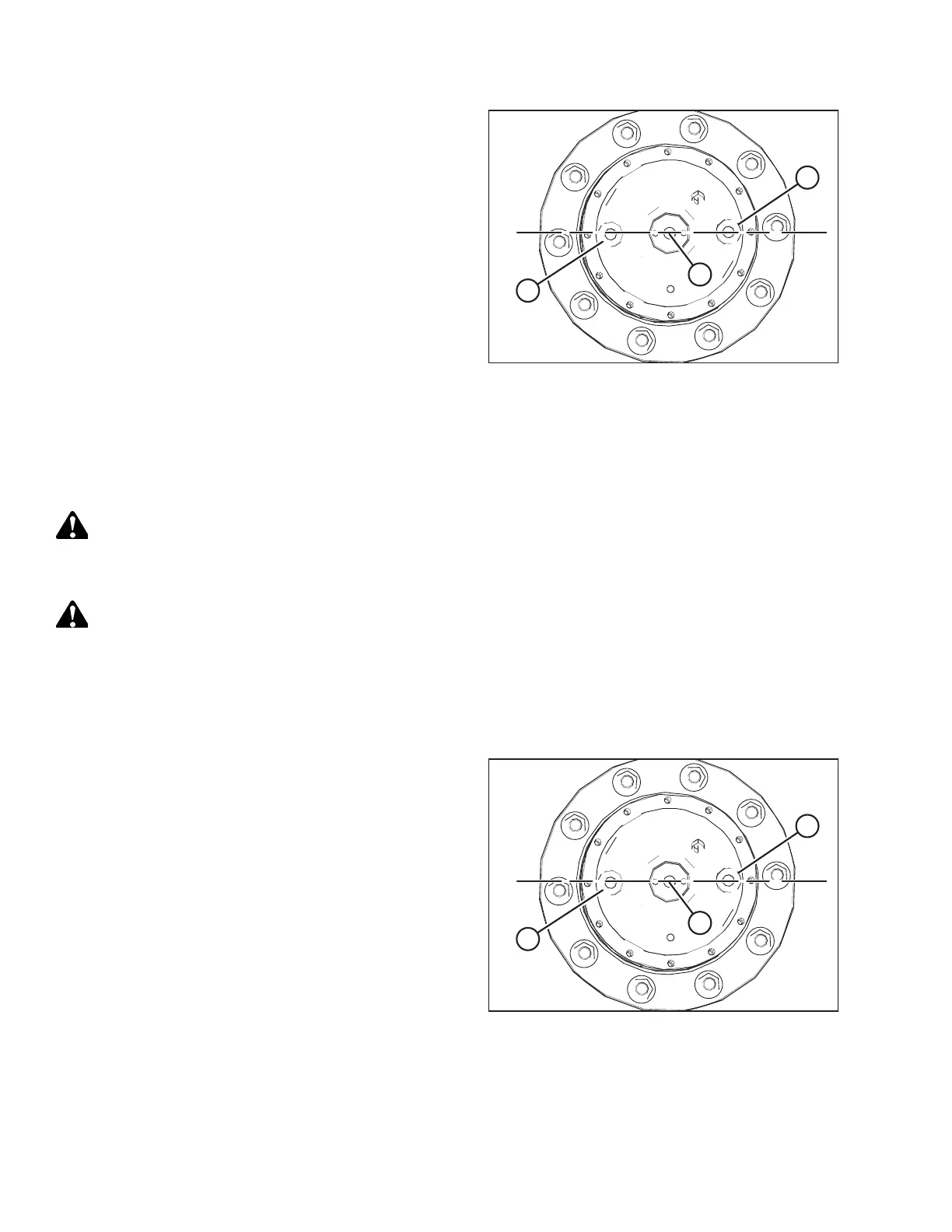

Figure 5.201: Drive Wheel Hub
2. Rotate the wheel drive so that the imaginary line running
through plugs (A) and (B) and hub center (C) is parallel with
the ground, as shown.
3. Shut down the engine, and remove the key from
the ignition.
4. Remove plug (A). The lubricant should be visible through
the port. If lubricant needs to be added, refer to Adding
Wheel Drive Lubricant, page 432.
NOTE:
The type of lubricant used after the first wheel drive
lubricant change differs from the type of lubricant used at
the factory. Refer to the manual’s inside back cover for the
recommended wheel drive lubricant.
5. Reinstall the plugs and tighten them.
Adding Wheel Drive Lubricant
If the level of lubricant in the wheel drives is insufficient, or if the lubricant has been drained, more will need to be added.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
CAUTION
Park on a flat, level surface with the header on the ground, the ground speed lever (GSL) in the N-DETENT position, and
the steering wheel in the locked position (centered). To confirm that the parking brake is engaged, wait for the cab
display module (CDM) to beep and display the message IN PARK.
IMPORTANT:
Do NOT mix lubricants of different brands or specifications.
1007544
A
B
C
Figure 5.202: Drive Wheel Hub
1. Rotate the wheel drive so that the imaginary line running
through plugs (A) and (B) and hub center (C) is parallel with
the ground, as shown.
2. Shut down the engine,, and remove the key from the
ignition.
3. Remove two plugs (A) and (B). The oil should be visible
through the hole.
4. If lubricant needs to be added, remove second plug (B), and
add lubricant until lubricant runs out at port (A). Refer to
the inside back cover for lubricant specifications.
NOTE:
The type of lubricant used after the first wheel drive
lubricant change is not the same type of lubricant used in
the factory. Refer to the manual’s inside back cover for the
recommended wheel drive lubricant.
5. Reinstall and tighten plugs (A) and (B).
