3.15 Horn
The horn allows the Operator to alert bystanders and other vehicle operators.

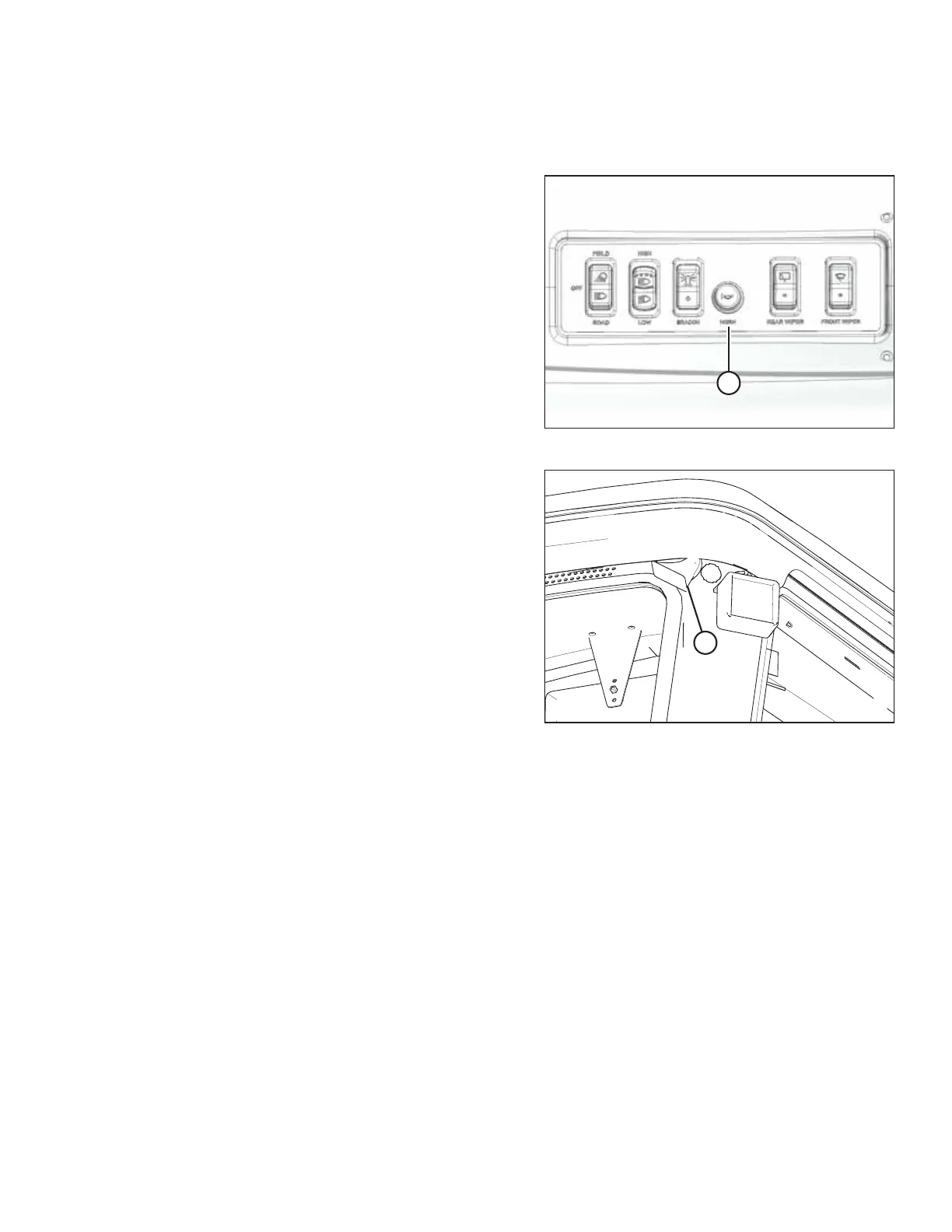

Figure 3.41: Horn Button Location
The horn is activated by pushing button (A) on the headliner
console.
Sound the horn three times prior to starting the engine.
Figure 3.42: Horn Location
Horn (A) is located outside the cab on the rear right cab-forward
corner of the cab, under the roof.
OPERATOR’S STATION
