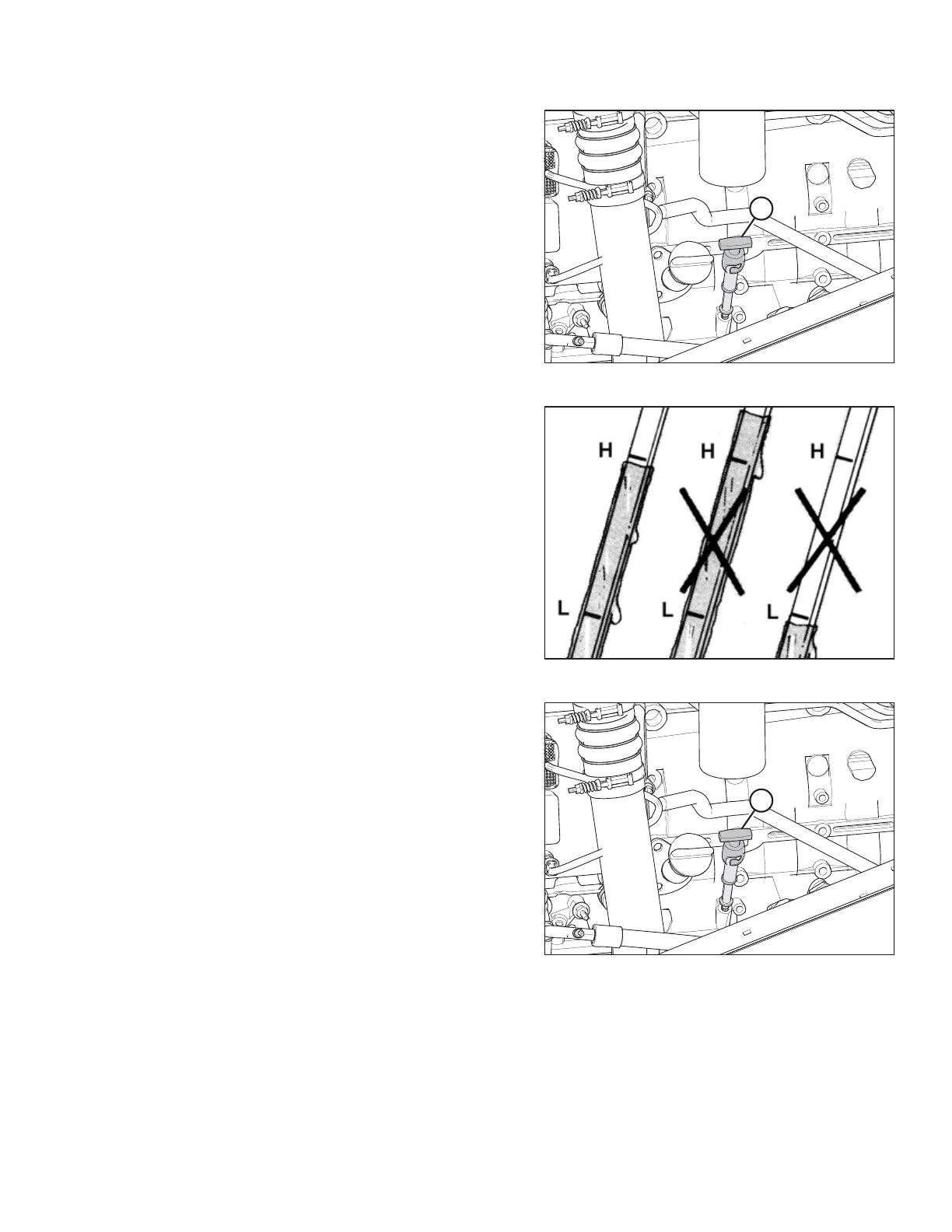

Figure 5.46: Engine Oil Dipstick
4. Remove dipstick (A) by turning it counterclockwise to
unlock it.
5. Wipe the dipstick clean and reinsert it into the engine.
6. Remove the dipstick again and check the oil level.
Figure 5.47: Engine Oil Level
7. Add oil if the level is below the low (L) mark. For
instructions, refer to Adding Engine Oil, page 347.
IMPORTANT:
The oil level should be maintained between the low (L) and
high (H) marks on the dipstick.
Figure 5.48: Engine Oil Dipstick
8. Replace dipstick (A) and turn it clockwise to lock it.
9. Close the hood. For instructions, refer to 5.3.2 Closing Hood
– Lower Position, page 317.
Changing Engine Oil
To change engine oil, refer to the following procedures:
• Checking Engine Oil Level, page 344
• Draining Engine Oil, page 346
