3.7.4 High Intensity Discharge Auxiliary Lighting – Option
Two optional high intensity discharge (HID) lights (MD #B5596) provide additional lighting during field operation.

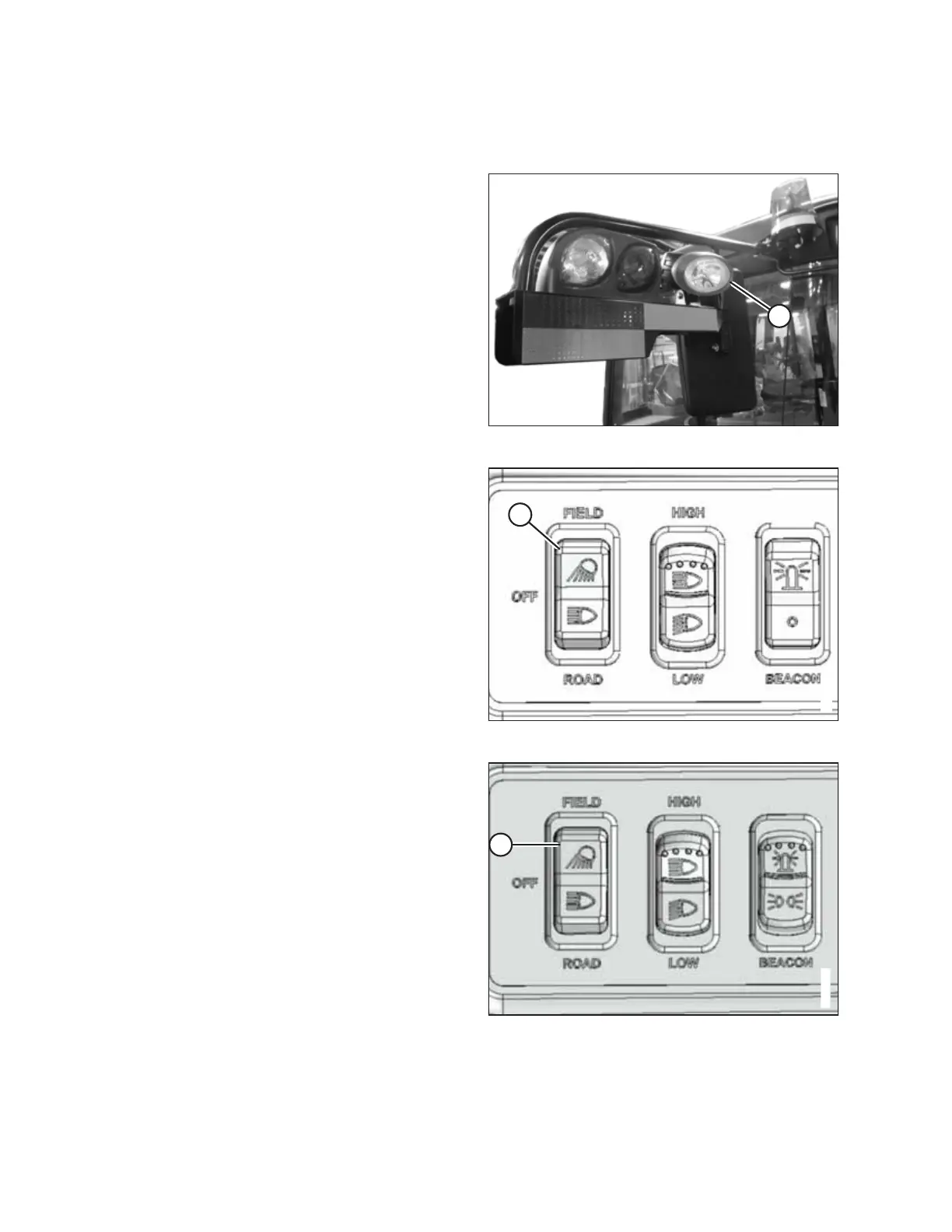

Figure 3.21: HID Auxiliary Lights (Optional)
If installed, the HID auxiliary lights are located on mirror
supports (A). They can be activated only when the windrower is
in cab-forward mode.
Figure 3.22: Field Light Switch (except Russia)
Figure 3.23: Field Light Switch (Russia)
The HID auxiliary lighting is activated by moving light switch (A)
to the FIELD position.
