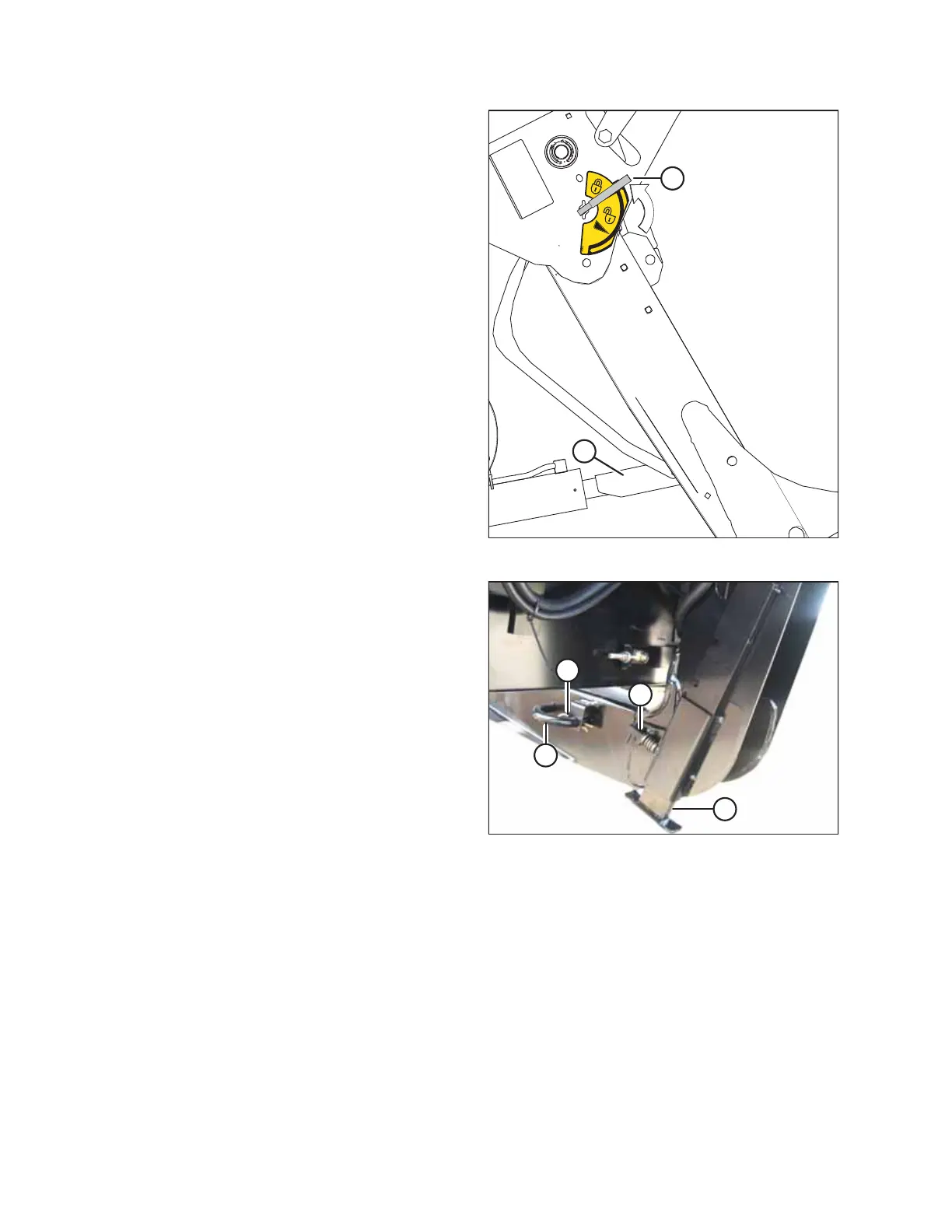

Figure 4.159: Safety Prop
4. To engage the safety props on the lift cylinders:
a. Pull lever (A) and rotate it toward the header to lower
safety prop (B) onto the cylinder.
b. Repeat the previous step for the opposite lift cylinder.
Figure 4.160: Header Stand
5. Remove clevis pin (B) by removing hairpin (A) from the
header leg on both sides.
6. Lower header stand (D) by pulling spring loaded pin (C).
Release the pin to lock the stand.
