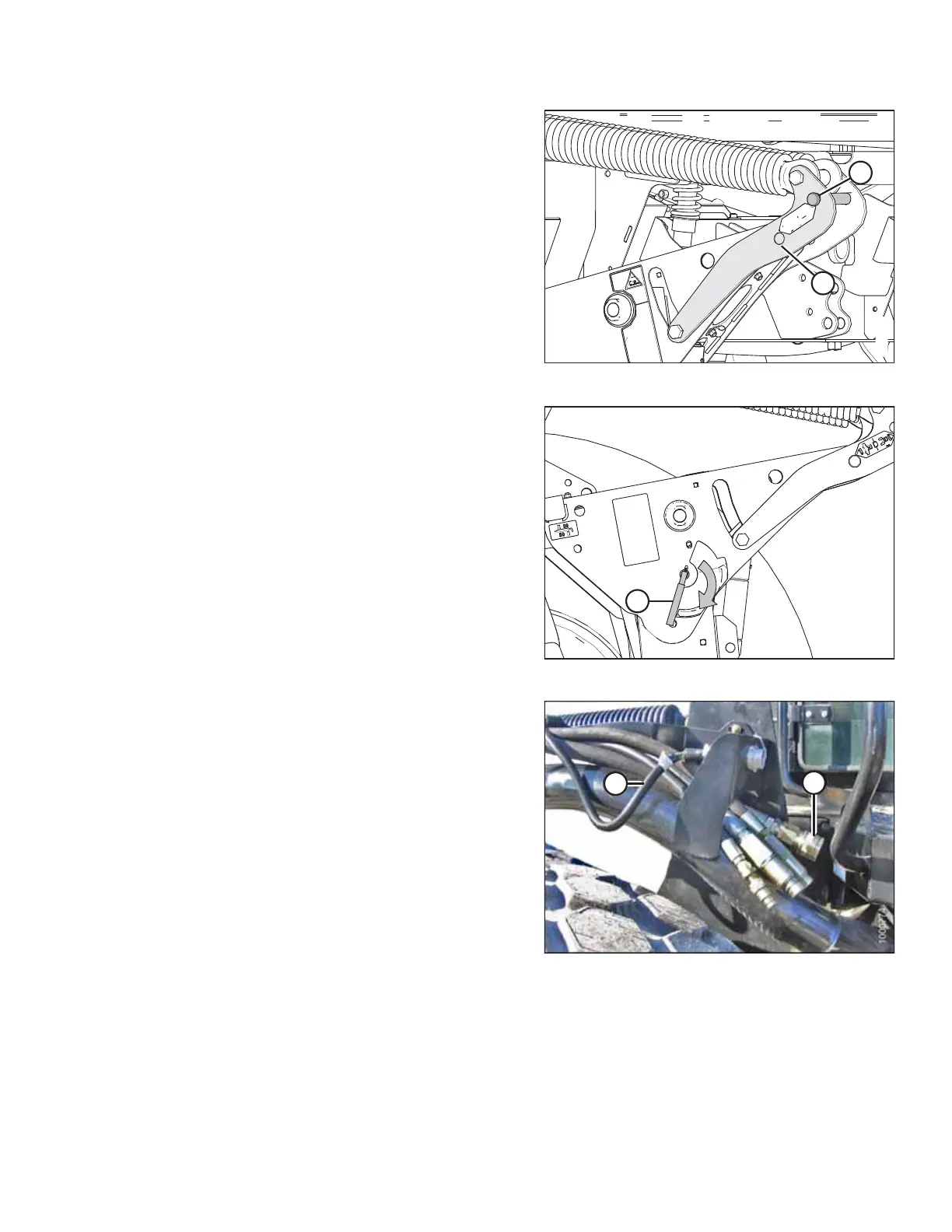

Figure 4.161: Header Float Linkage
7. Remove the clevis pin from location (A) to disengage the
float springs, and insert the clevis pin in storage hole (B).
Secure it with the lynch pin.
IMPORTANT:
To prevent damage to the lift system when lowering the
header lift linkages without a header or weight box
attached to the windrower, ensure that the float
engagement pin is installed in storage position (B) and NOT
in engaged position (A).
Figure 4.162: Safety Prop
8. To disengage the safety props on the lift cylinders:
a. Turn lever (A) away from the header to raise the safety
prop until the lever locks into the vertical position.
b. Repeat the previous step for the opposite cylinder.
Figure 4.163: Header Drive Hydraulics
9. Disconnect header drive hydraulics (A) and electrical
harness (B) from the header and store in the support on
the windrower left cab-forward side. Refer to the draper
header operator’s manual for further information.
