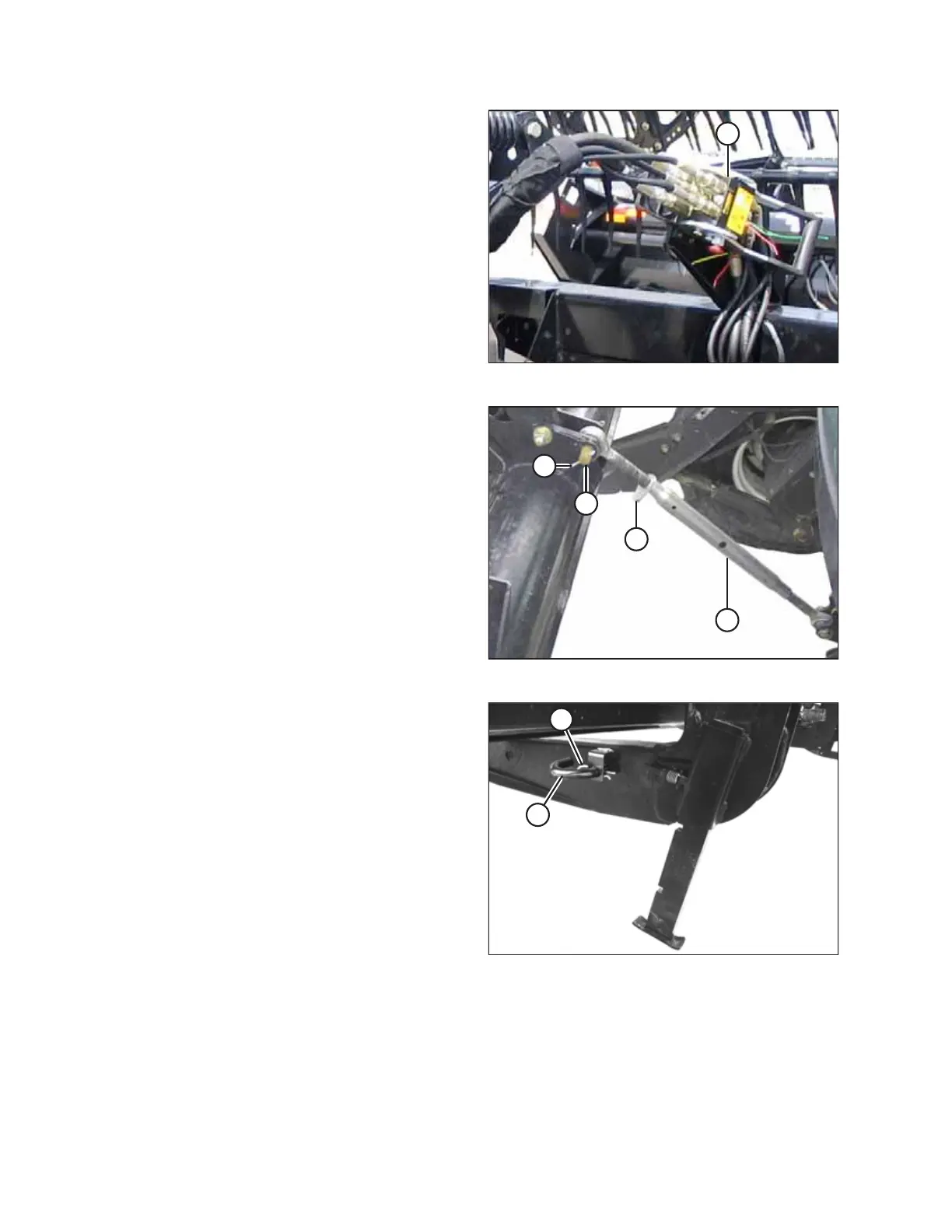

Figure 4.164: Reel Hydraulics
10. Disconnect reel hydraulics (A) from the header and store on
the bracket at the windrower left cab-forward side. Refer to
the draper header operator’s manual for further
information.
1000769
A
B
C
D
Figure 4.165: Mechanical Center-Link
11. Loosen nut (A) and rotate barrel (B) to relieve the load on
the link.
12. Remove cotter pin (D) and clevis pin (C) to disconnect from
windrower. Reinstall clevis pin (C).
13. Tighten nut (A) against the barrel. A slight tap with a
hammer is sufficient.
1000786
A
B
Figure 4.166: Header Leg
14. Reinstall pin (A) into the header leg and secure it with
hairpin (B).
