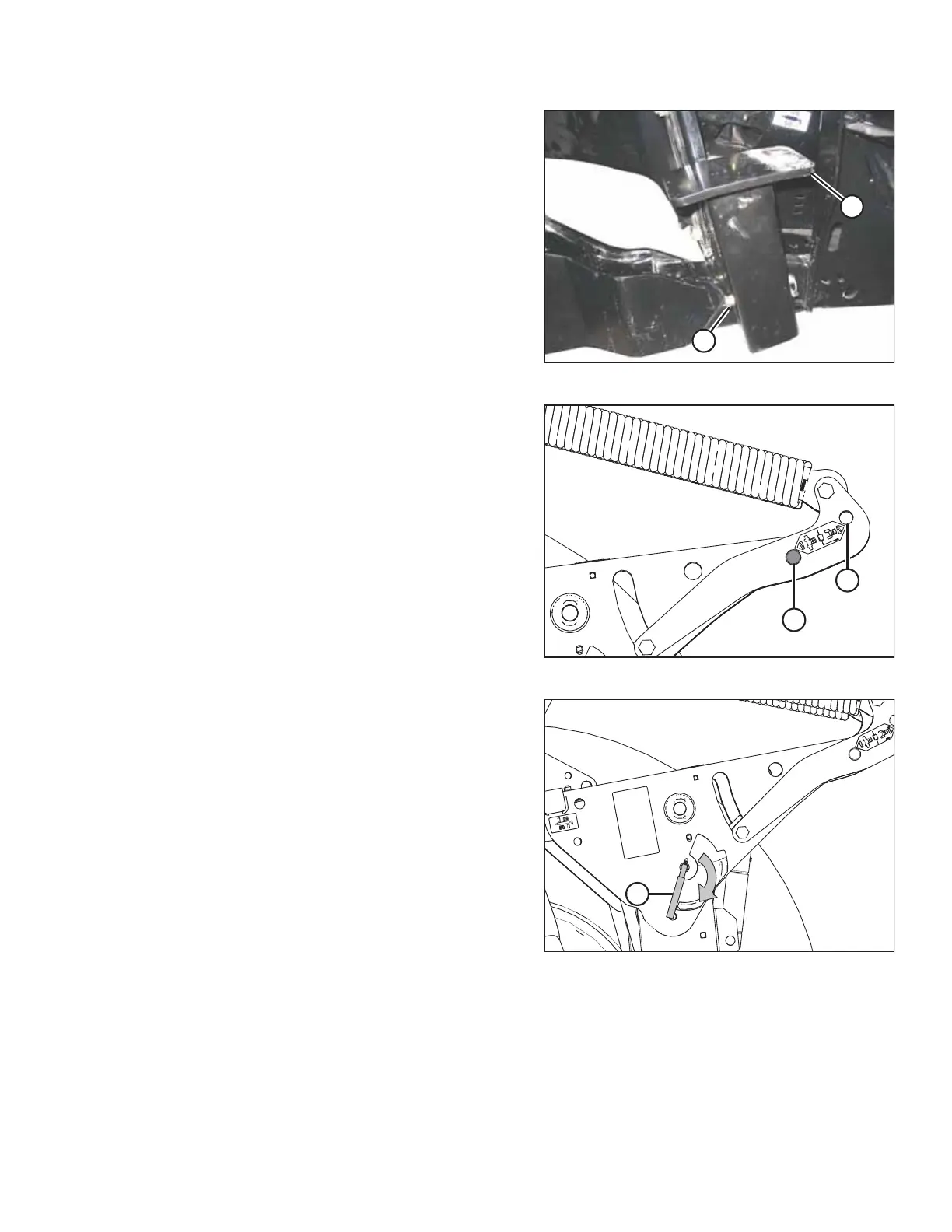

Figure 4.177: Header Stand
16. Remove the lynch pin from clevis pin (A) in stand (B).
17. Hold stand (B) and remove pin (A).
18. Move stand (B) to the storage position by inverting it and
relocating it onto the bracket as shown. Reinsert clevis
pin (A) and secure it with the lynch pin.
Figure 4.178: Header Float Linkage
19. Remove the clevis pin from storage position (B) in the
linkage and insert it into hole (A) to engage the float
springs. Secure it with the hairpin. Repeat this step on the
opposite float linkage.
Figure 4.179: Safety Prop Lever
20. Disengage the safety prop by turning lever (A) downwards
until the lever locks into the vertical position.
21. Repeat the previous step for the opposite safety prop.
