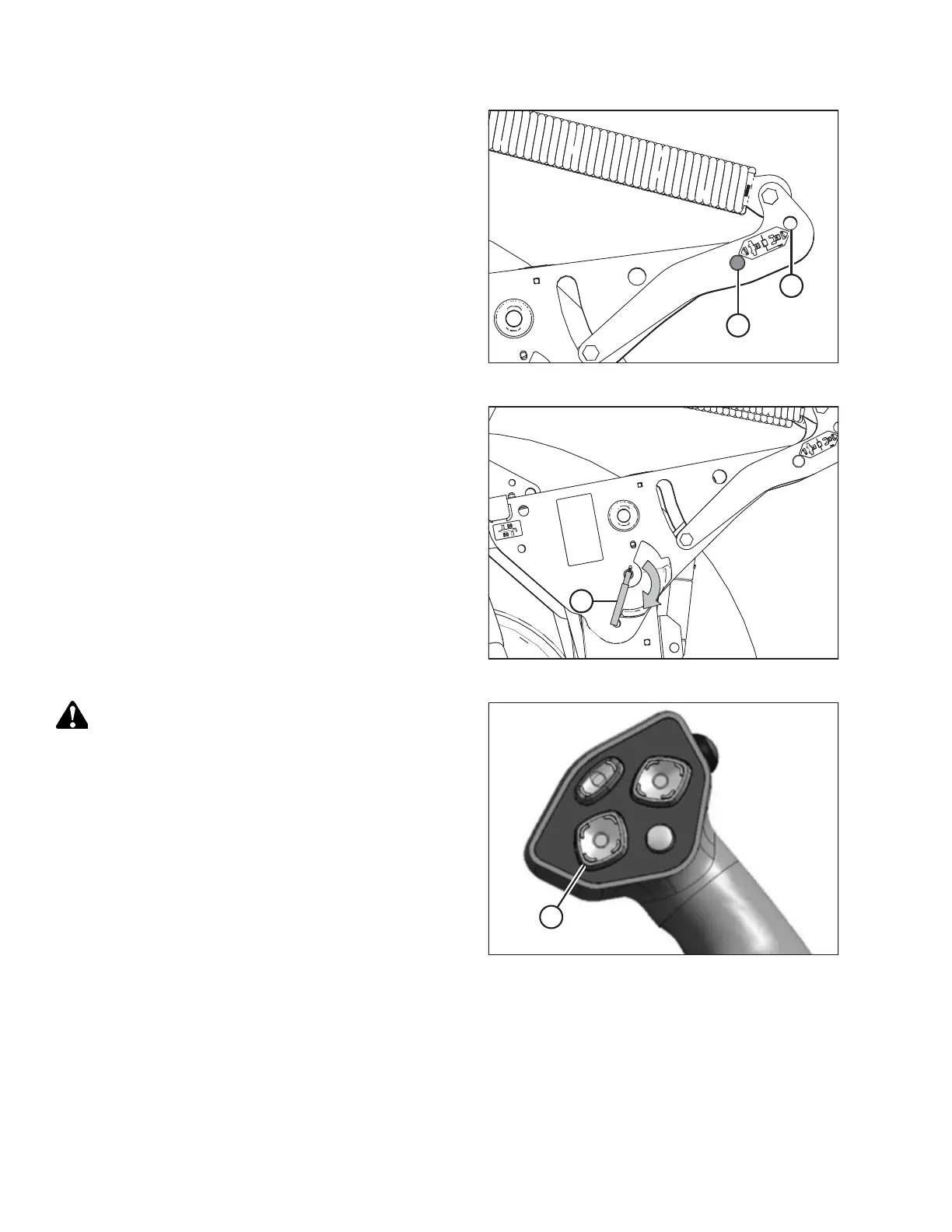

Figure 4.117: Header Float Linkage
16. Remove the clevis pin from storage position (B) in the
linkage and insert it into hole (A) to engage the float
springs. Secure it with the hairpin. Repeat this step on the
opposite float linkage.
Figure 4.118: Safety Prop Lever
17. Disengage the safety prop by turning lever (A) downwards
until the lever locks into the vertical position.
18. Repeat the previous step for the opposite safety prop.
Figure 4.119: Ground Speed Lever
DANGER
Ensure that all bystanders have cleared the area.
19. Start the engine, and press HEADER DOWN switch (A) on
the GSL to fully lower the header.
20. Stop the engine, and remove the key from the ignition.
