215676 403 Revision A
1. Turn the lights OFF.

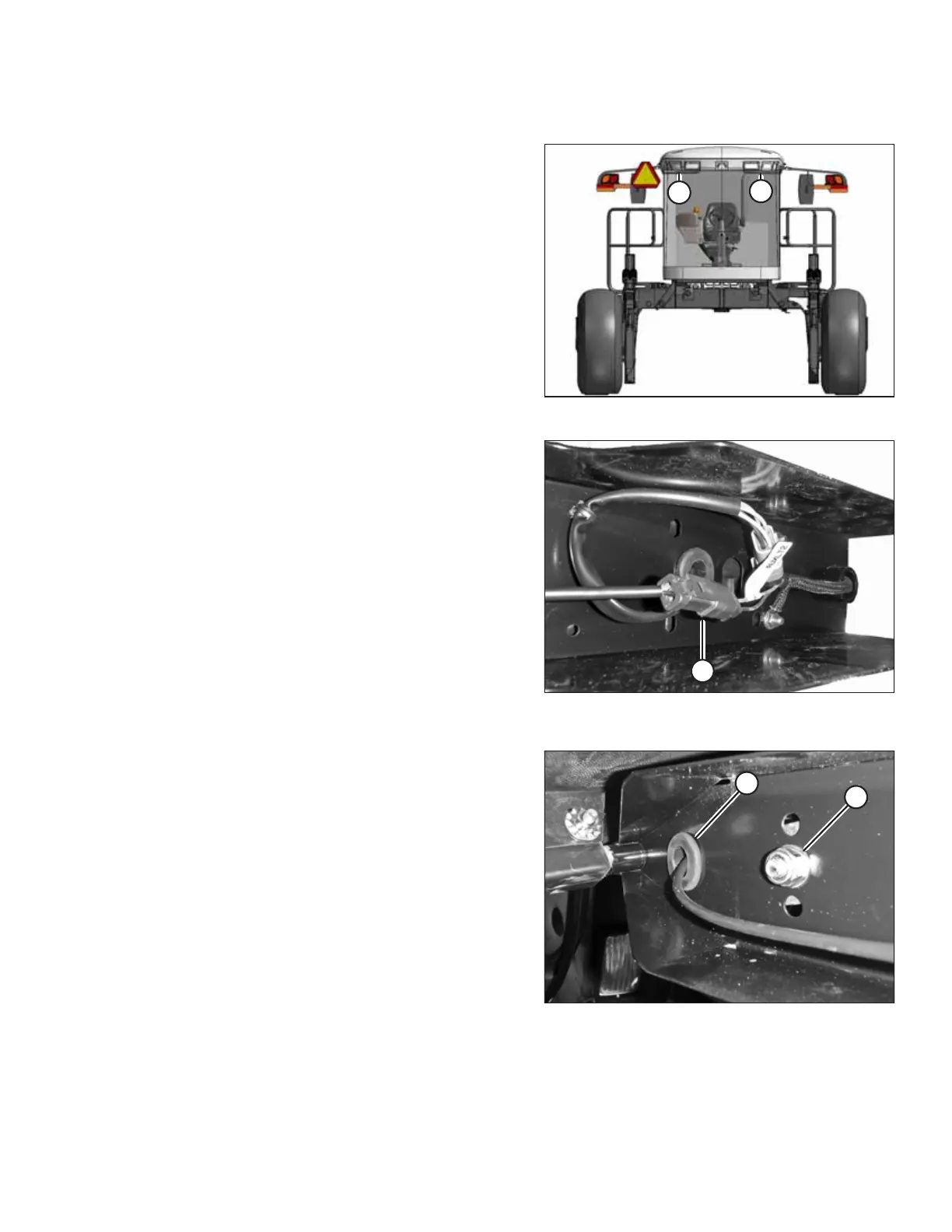

Figure 5.151: Cab-Forward Lights
2. Shut down the engine, and the remove the key from the
ignition.
3. Holding onto handholds (A) on the cab’s front corners,
stand on the header’s anti-slip strips, or else stand on the
maintenance platform.
Figure 5.152: Lamp Harness Connector – View from
Underside of Mirror
4. Locate the lamp electrical harness connector on the bottom
of the mirror assembly. Disconnect lamp harness
connector (A).
Figure 5.153: Hardware and Light Harness Grommet –
View from Underside of Mirror
5. Feed the lamp electrical harness through grommet (B).
6. Remove nut (A).
7. Remove the old HID lamp from the mirror assembly and
discard it.
MAINTENANCE AND SERVICING
