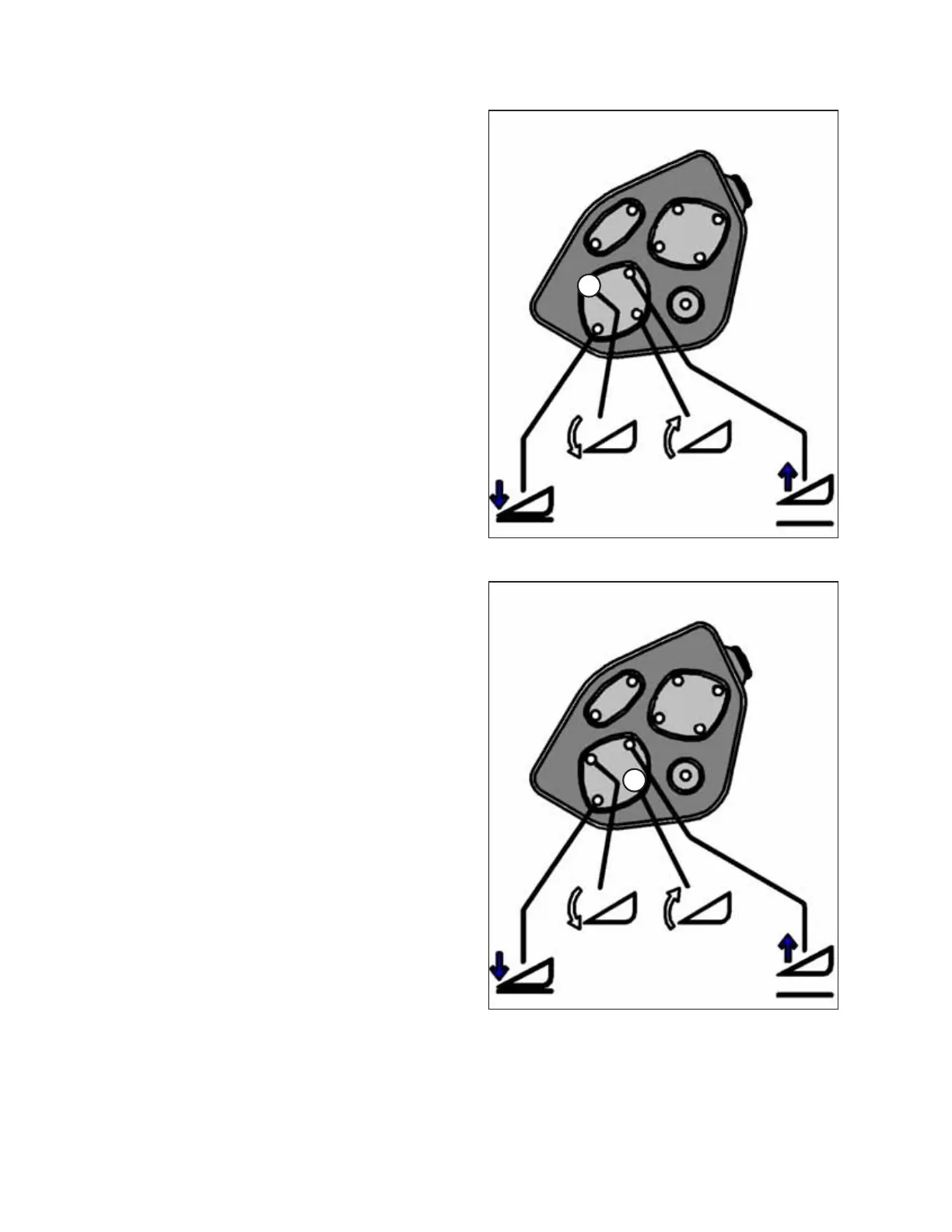

Figure 3.150: Header Tilt Controls on GSL
6. Press and hold HEADER TILT EXTEND button (A) on the
ground speed lever (GSL).
• CALIBRATING TILT will appear on the upper line.
• EXTEND TILT HOLD will appear on the lower line.
NOTE:
The word HOLD will flash during calibration. HEADER TILT
DONE will display on the lower line once calibration is
complete.
7. Release HEADER TILT EXTEND button (A).
• HEADER TILT SENSOR CAL will appear on the upper line.
• PRESS RETRACT TILT will appear on the lower line.
1023732
A
Figure 3.151: Header Tilt Controls on GSL
8. Press and hold HEADER TILT RETRACT button (A) on
the GSL.
• CALIBRATING TILT will appear on the upper line.
• RETRACT TILT HOLD will appear on the lower line.
NOTE:
The word HOLD will flash during calibration. HEADER TILT
COMPLETE will display on the lower line once calibration is
complete.
9. Release HEADER TILT RETRACT button (A).
• TO CALIBRATE SELECT will appear on the upper line.
• HEADER TILT will appear on the lower line.
10. Press the right arrow to select the next header sensor calibration or select STOP & EXIT. Press SELECT.
For instructions, refer to Calibrating Header Height Sensor, page 121 or Calibrating Header Float Sensors, page 125.
11. Press PROGRAM to exit programming mode.
