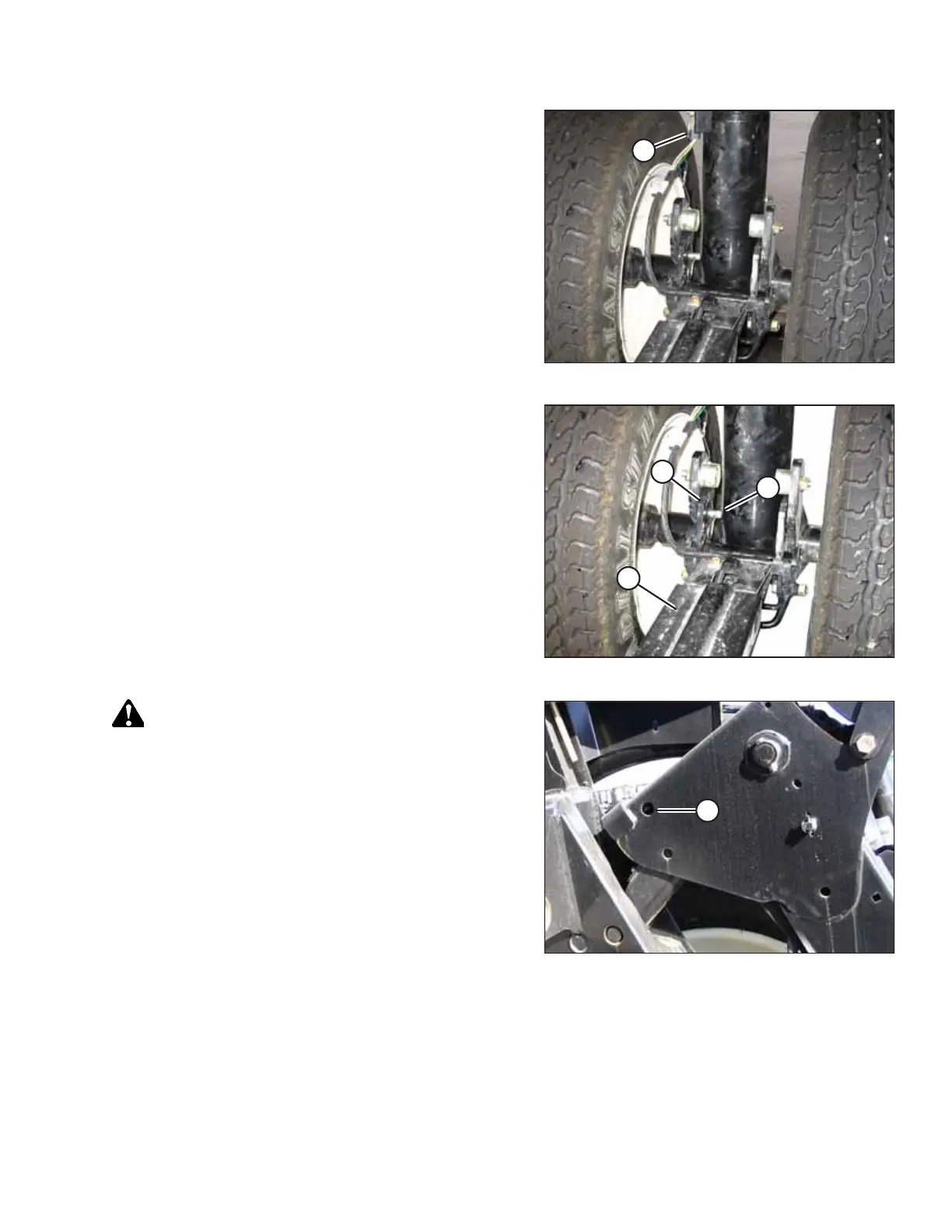

Figure 4.47: Header Transport Wheel
3. Disconnect wiring connector (A) at the front wheel.
1026924
A
C
D
Figure 4.48: Header Transport Wheel
4. Remove clevis pin (D).
5. Push latch (C) and lift tow-bar (A) from the hook. Release
the latch and replace the clevis pin.
6. Unhook the tow-bar from the weight box.
1000712
A
Figure 4.49: Lift Arms
DANGER
Ensure that all bystanders have cleared the area.
7. Start the engine.
8. Lower the lift arms until the rear of the lift arms floats up
and away from the lift arm mechanism.
9. Stop the engine, and remove the key from the ignition.
10. Remove temporary lift pins (A) from the weight box. Install
the pins into the holes at the rear of the lift arms.
11. Start the engine.
12. Raise the lift arms to their maximum height.
13. Stop the engine, and remove the key from the ignition.
14. Engage the lift cylinder safety props. For instructions, refer
to 4.4.1 Engaging and Disengaging Header Safety Props,
page 192.
