215676 217 Revision A

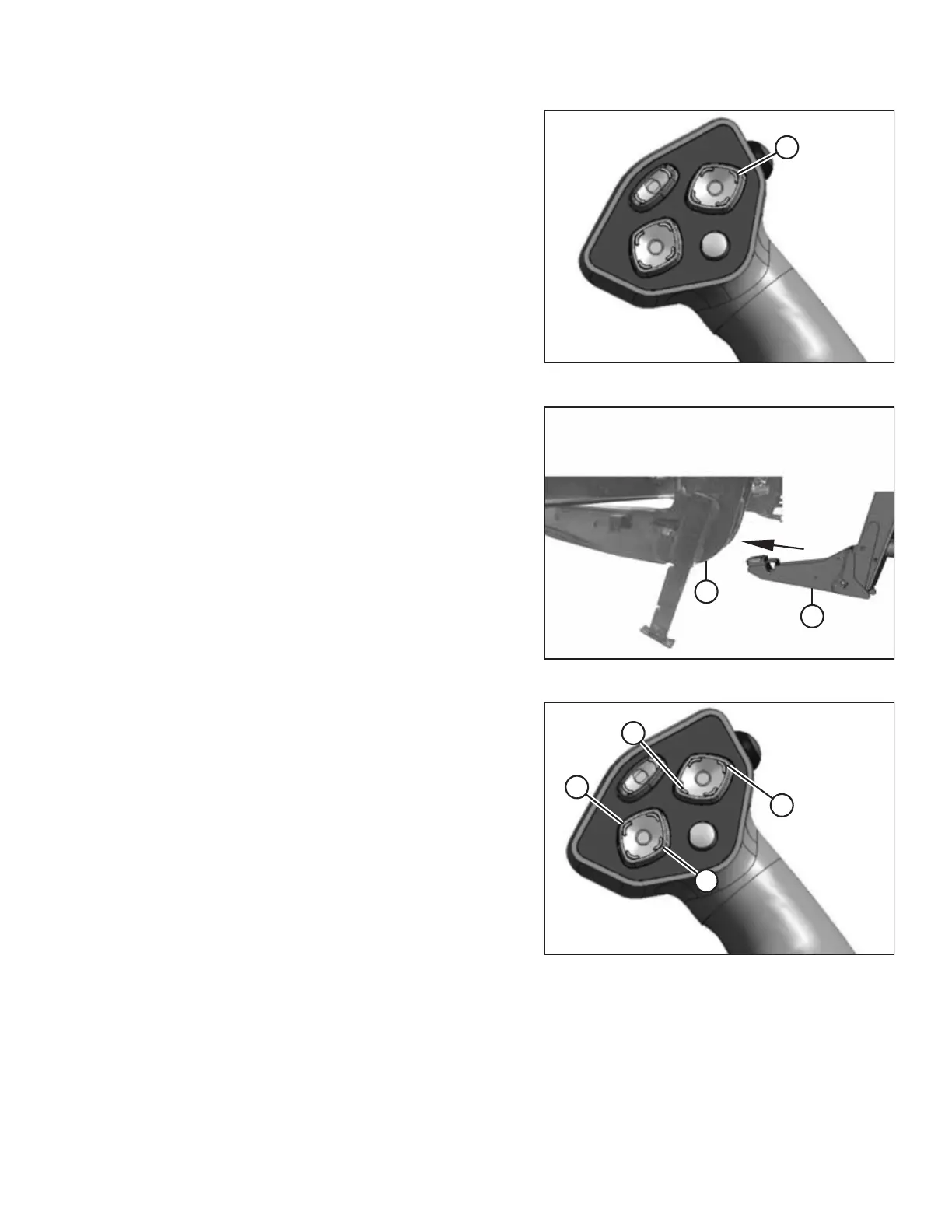

Figure 4.110: Ground Speed Lever
4. Press REEL UP switch (A) on the GSL to raise the center-link
until the hook is above the attachment pin on the header.
IMPORTANT:
If the center-link is too low, it may contact the header as
the windrower approaches the header for hookup.
Figure 4.111: Header Leg and Boot
5. Drive the windrower slowly forward until boots (A) enter
header legs (B). Continue driving slowly forward until the
lift linkages contact the support plates in the header legs
and the header is nudged forward.
6. Ensure that the lift linkages are properly engaged in the
header legs and are contacting the support plates.
Figure 4.112: Ground Speed Lever
7. Use the following GSL functions to position the center-link
hook above the header attachment pin:
• REEL UP (A) to raise the center-link
• REEL DOWN (B) to lower the center-link
• HEADER TILT UP (C) to retract the center-link
• HEADER TILT DOWN (D) to extend the center-link
IMPORTANT:
The hook release must be down to enable the self-
locking mechanism. If the release is open (up), manually
push it down after the hook engages the header pin.
OPERATION
