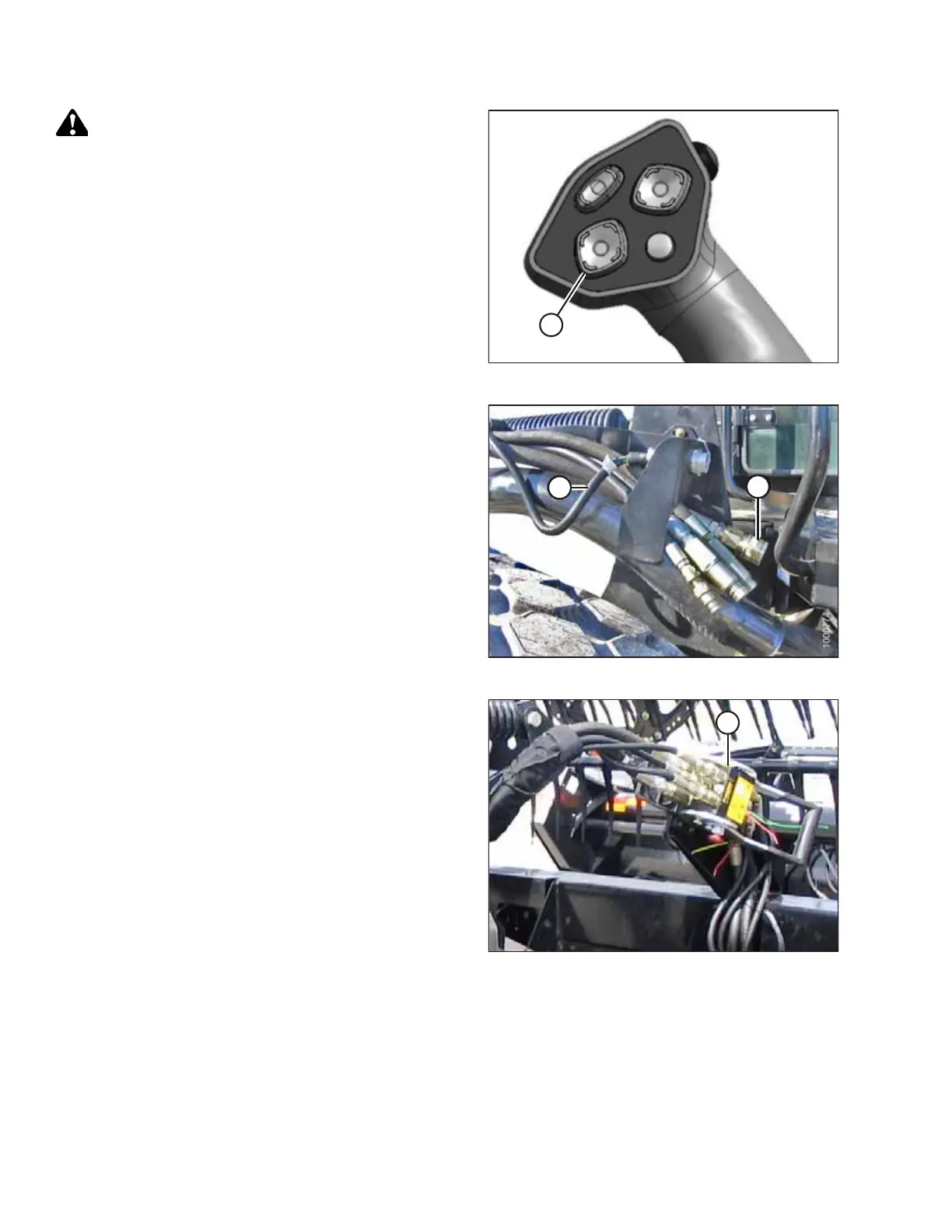

Figure 4.133: Ground Speed Lever
DANGER
Ensure that all bystanders have cleared the area.
20. Start the engine, and press HEADER DOWN switch (A) on
the GSL to fully lower the header.
21. Shut down the engine, and remove the key from
the ignition.
Figure 4.134: Header Drive Hoses and Harness
22. Connect header drive hoses (A) and electrical harness (B) to
the header. For instructions, refer to the header operator’s
manual.
Figure 4.135: Reel Hydraulics
23. Connect reel hydraulics (A) at the right cab-forward side of
the windrower. For instructions, refer to the draper header
operator’s manual.
