215676 278 Revision A

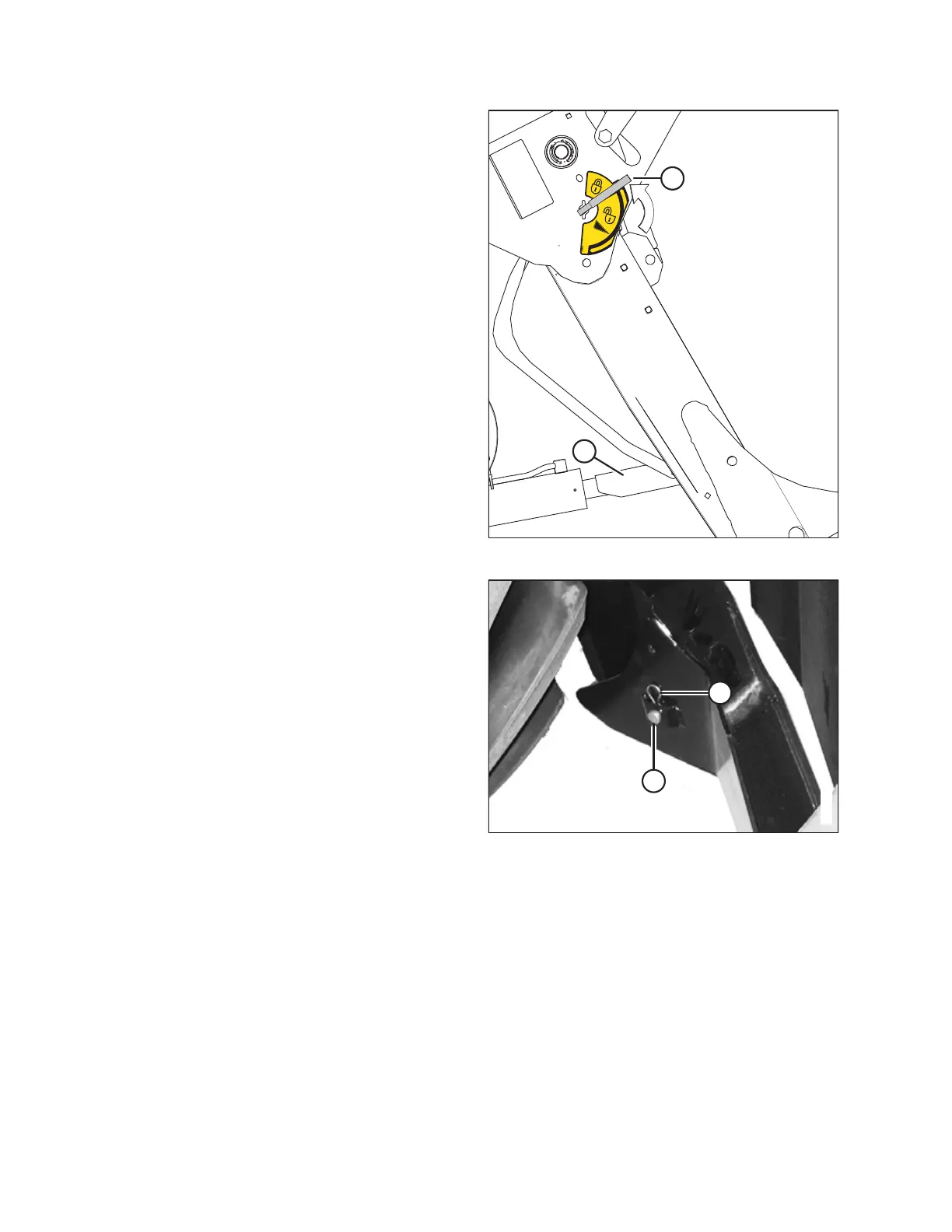

Figure 4.265: Safety Prop
13. Engage the safety props on both lift cylinders:
a. Shut down the engine, and remove the key from the
ignition.
b. Pull lever (A) and rotate it towards the header to
release and lower safety prop (B) onto the lift cylinder.
c. Repeat the previous steps for the opposite lift cylinder.
Figure 4.266: Header Support
14. Install clevis pin (A) through the support and the windrower
lift member, and secure it with hairpin (B). Repeat this step
on the opposite side of the header.
IMPORTANT:
Ensure that clevis pin (A) is fully inserted and that the
hairpin is installed behind the bracket.
OPERATION
