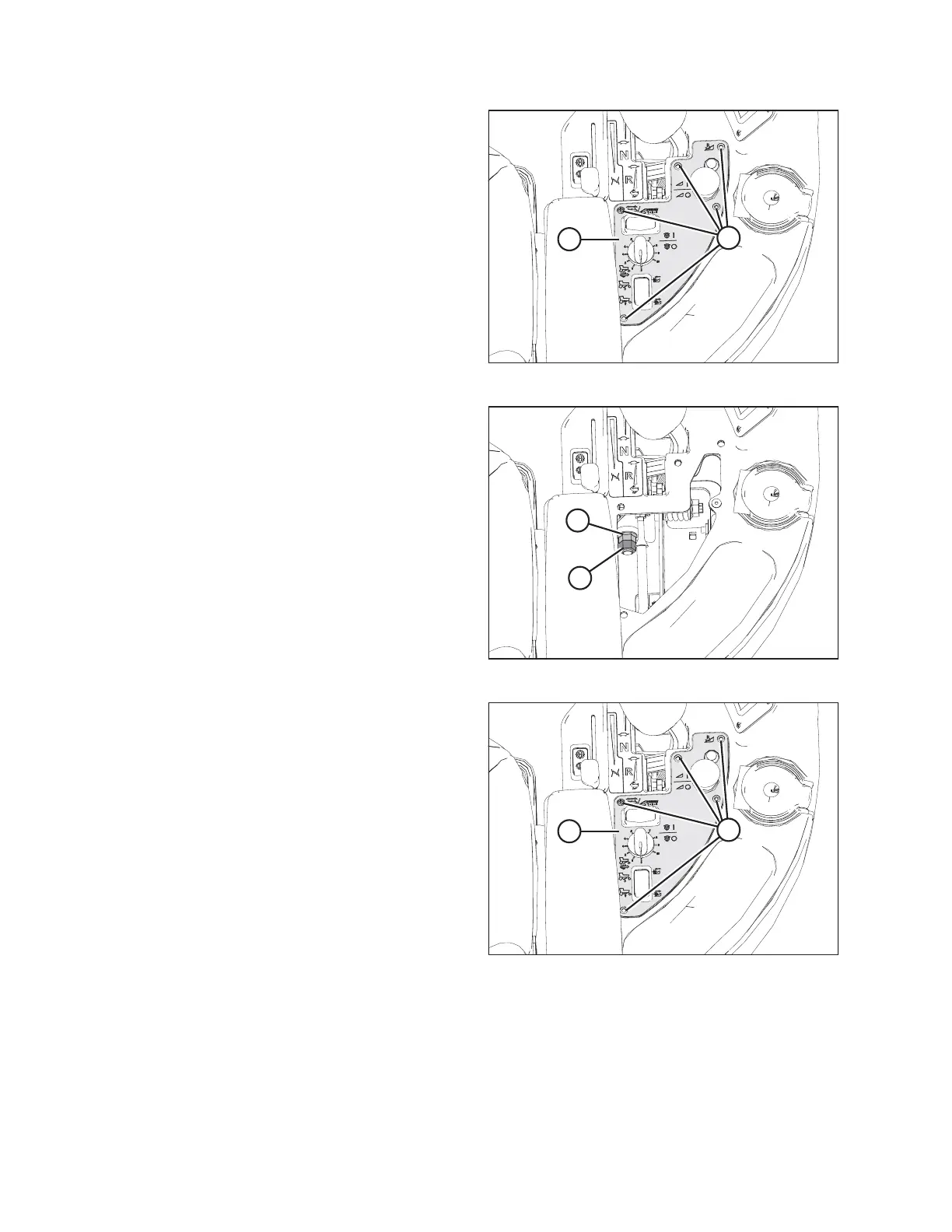

Figure 5.16: Control Panel
1. Remove five screws (A) securing control panel (B) to the
console. Remove the panel.
Figure 5.17: Control Panel Removed
2. Loosen jam nut (A).
3. Turn nut (B) to either tighten or loosen the pivot. The nut
should be tightened until snug and then loosened by
half a turn.
4. Tighten jam nut (A).
5. Test the movement of the GSL. Repeat this procedure as
needed.
Figure 5.18: Control Panel
6. Reinstall control panel (B) and secure it with five screws (A).
