215676 350 Revision A

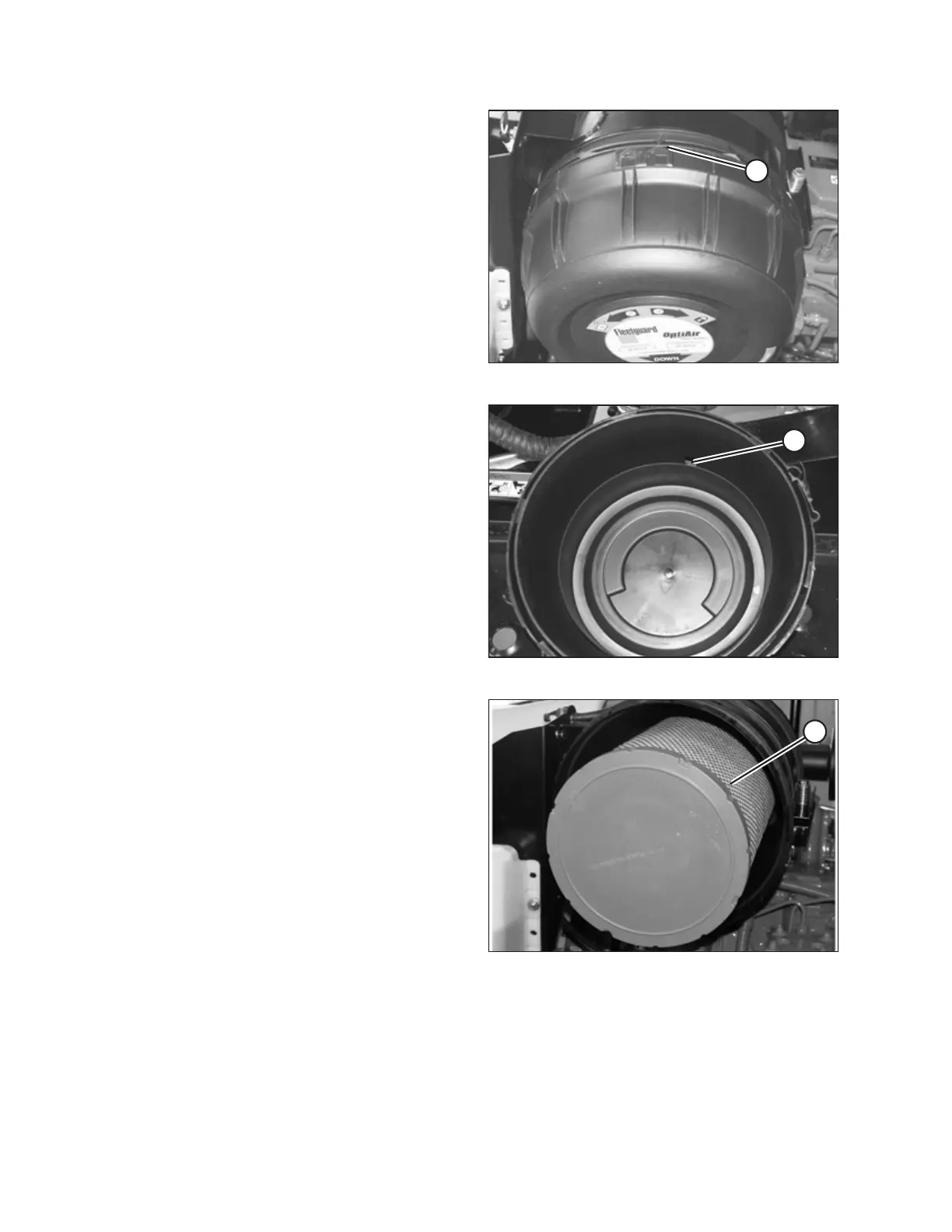

Figure 5.56: Engine Air Cleaner
4. Ensure that arrow (A) on the end cap lines up with the
UNLOCK symbol on the end cap.
5. Remove the end cap.
Figure 5.57: Engine Air Cleaner Housing
6. Inspect aspirator duct opening (A), looking for obstructions
or damage. Clean the opening as needed.
Figure 5.58: Engine Air Cleaner Primary Filter Element
7. Pull out primary filter element (A).
IMPORTANT:
Handle the filter element carefully. Rough handling of the
filter element can knock dirt and debris loose, which will
contaminate the clean side of the housing.
MAINTENANCE AND SERVICING
