215676 382 Revision A

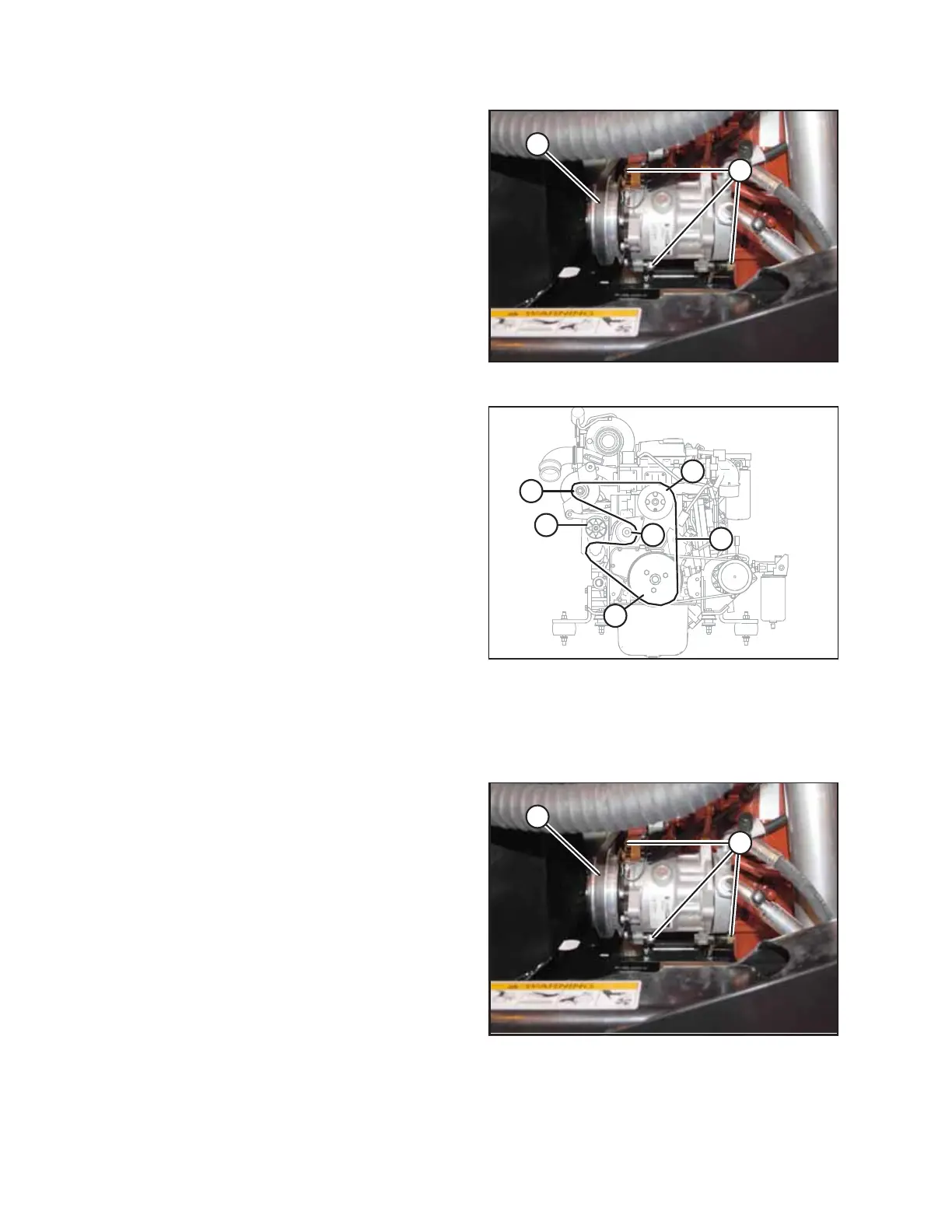

Figure 5.115: A/C Compressor
4. Loosen compressor mounting hardware (B). Push the
compressor toward the engine to release the tension on
the A/C compressor belt.
5. Remove belt (A) from the compressor.
Figure 5.116: Engine Belts
6. Insert the drive end of a 1/2 in.-drive ratchet wrench into
belt tensioner (B).
7. Rotate the tensioner counterclockwise until fan belt (A) can
be slipped off of pulley (C). Release the tensioner and
remove the wrench.
8. Remove the belt in the order 1–2–3, as shown. Route the
fan belt around the fan and remove the belt.
9. Install new belt (A) around the fan and onto the pulleys in
the order 3–2–1, as shown.
10. Insert the drive end of a 1/2 in.-drive ratchet wrench into
belt tensioner (B).
11. Rotate the tensioner counterclockwise until belt (A) can be
slipped onto pulley (C). Release the tensioner and remove
the wrench.
12. Ensure that the belt is properly seated in all pulley grooves.
Figure 5.117: A/C Compressor
13. Reinstall compressor belt (A).
14. Pry the compressor away from the engine so that a force of
35–55 N (8–12 lbf) applied to the midspan of belt (A)
causes a deflection of 5 mm (3/16 in.).
15. Tighten compressor mounting hardware (B).
16. Recheck the belt tension. Repeat this procedure as needed.
17. Close the hood. For instructions, refer to 5.3.2 Closing Hood
– Lower Position, page 317.
18. Close the platform. For instructions, refer to 5.4.2 Closing
Platforms – Standard Position, page 320.
MAINTENANCE AND SERVICING
