MacDon M155 2022 - Page 54

215676 34 Revision A
1035659
A
B
C
D

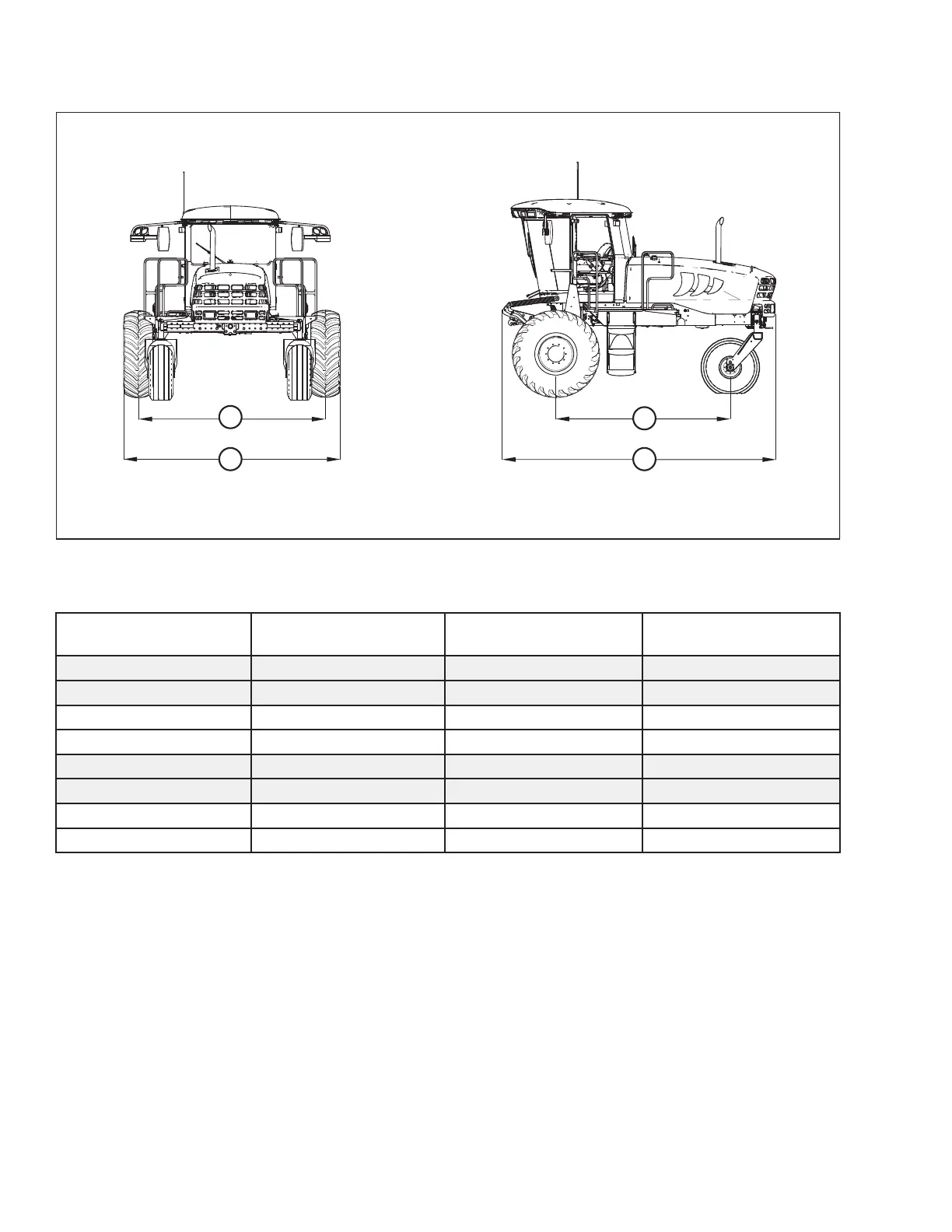

A - Caster Tire Tread B - Caster Tire Casters
C - 3064 mm (120 9/16 in.) D - 4747 mm (186 7/8 in.)
Table 2.3 Caster Tires
Tire Size
Wheel Position
Tread (D)
mm (in.)
Casters (E)
mm (in.)
7.5-16SL
Minimum
2448 (96 7/16) 3032 (118 15/16)
7.5-16SL
Maximum
3448 (135 11/16) 4032 (158 3/4)
10-16 formed caster
Minimum
2448 (96 7/16) 3032 (118 15/16)
10-16 formed caster
Maximum
3448 (135 11/16) 4032 (158 3/4)
10-16 forked caster
Minimum
2448 (96 7/16) 3014 (118 11/16)
10-16 forked caster
Maximum
3448 (135 11/16)
4014 (158)
16.5 x 16.1
Minimum
2448 (96 7/16) 3014 (118 11/16)
16.5 x 16.1
Maximum
3448 (135 11/16)
4014 (158)
PRODUCT OVERVIEW
