9. Press the activation switch on the SST
(Deployment tool) to deploy the curtain air bag
module.

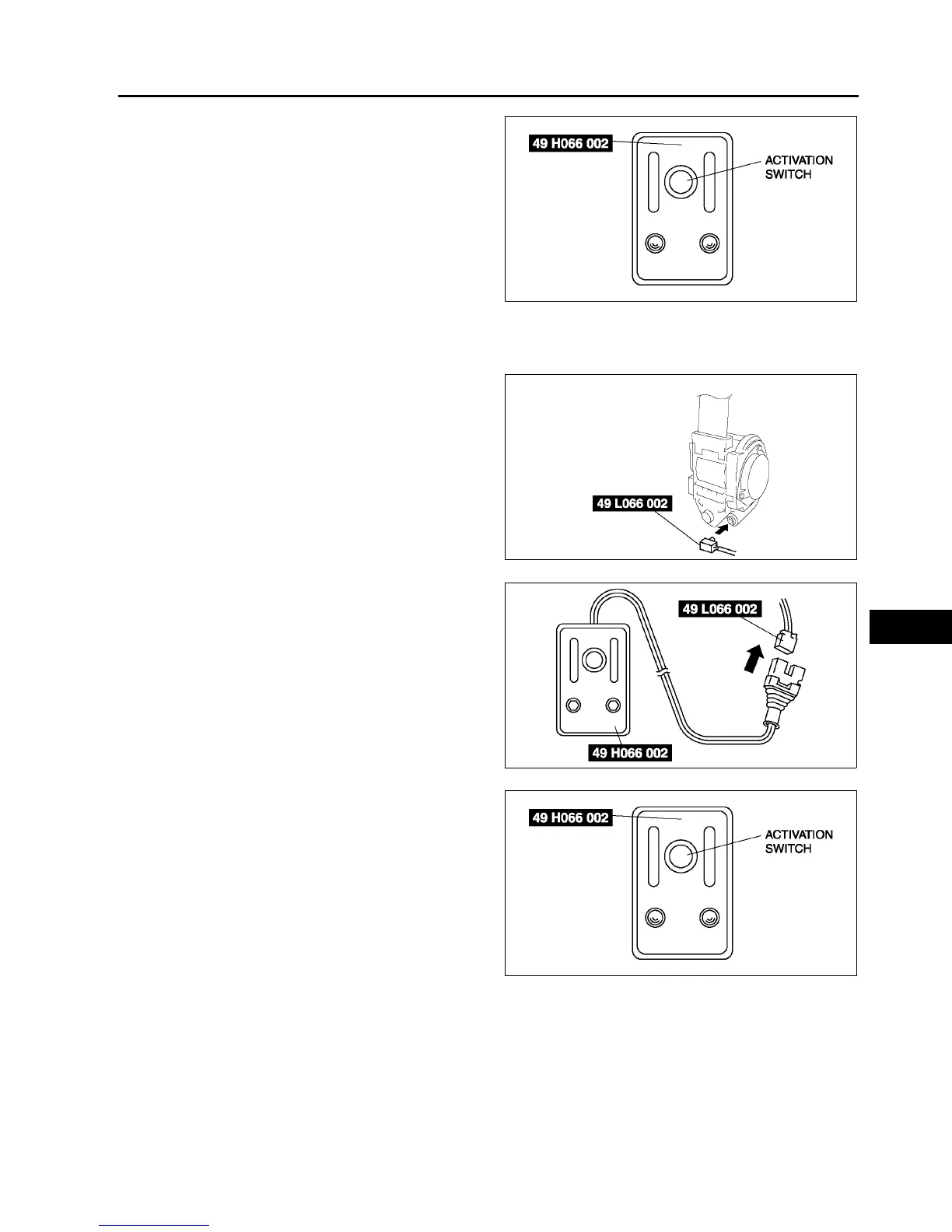

Pre-tensioner seat belt
1. Remove the B-pillar lower trim.
2. Remove the pre-tensioner seat belt and connect
the SST (Adapter harness) to it as shown in the
figure. (See S–100 FRONT SEAT BELT
REMOVAL/INSTALLATION.)
3. Install the pre-tensioner seat belt.
4. Connect the SST (Deployment tool) to the SST
(Adapter harness).
5. Connect the red clip of the SST (Deployment tool)
to the positive battery terminal and the black clip
to the negative battery terminal.
6. Verify that the red light on the SST (Deployment
tool) is illuminated.
7. Make sure all persons are standing at least 6 m
{20 ft} from the vehicle.
8. Press the activation switch on the SST
(Deployment tool) to deploy the pre-tensioner
seat belt.
Deployment Procedure for Outside of Vehicle
1. Inspect the SST (Deployment tool). (See T–140 INSPECTION OF SST (DEPLOYMENT TOOL).)
2. Turn the ignition switch to LOCK position.
3. Disconnect the negative battery cable and wait for more than 1 minute.
4. Follow the appropriate procedure for deploying the driver-side air bag module, passenger-side air bag module,
side air bag module, curtain air bag module, or pre-tensioner seat belt.
