T–194
ON-BOARD DIAGNOSTIC [AIR BAG SYSTEM]
B1996
23 14
Passenger-side side air
bag module system circuit
short to power supply
(See T–213 DTC
B1996, B1997,
B1998, B1999)
B1997
Passenger-side side air
bag module system circuit
short to ground
B1998
Passenger-side side air
bag module system
resistance high
B1999
Passenger-side side air
bag module system
resistance low
B2228 19 11
Driver-side air bag module
(inflator No.2) system
circuit short to ground
(See T–215 DTC
B2228, B2230,
B2232, B2234)
B2229 21 10
Passenger-side air bag
module (inflator No.2)
system circuit short to
ground
(See T–217 DTC
B2229, B2231,
B2233, B2235)
B2230 19 11
Driver-side air bag module
(inflator No.2) system
circuit short to power supply
(See T–215 DTC
B2228, B2230,
B2232, B2234)
B2231 21 10
Passenger-side air bag
module (inflator No.2)
system circuit short to
power supply
(See T–217 DTC
B2229, B2231,
B2233, B2235)
B2232 19 11
Driver-side air bag module
(inflator No.2) system
resistance high
(See T–215 DTC
B2228, B2230,
B2232, B2234)
B2233 21 10
Passenger-side air bag
module (inflator No.2)
system resistance high
(See T–217 DTC
B2229, B2231,
B2233, B2235)
B2234 19 11
Driver-side air bag module
(inflator No.2) system
resistance low
(See T–215 DTC
B2228, B2230,
B2232, B2234)
B2235 21 10
Passenger-side air bag
module (inflator No.2)
system resistance low
(See T–217 DTC
B2229, B2231,
B2233, B2235)
B2296 42 9
Crash zone sensor system
(communication error,
sensor internal circuit
abnormal)
(See T–218 DTC
B2296)
B2444 43 8
Driver-side side air bag
sensor system (sensor
internal circuit abnormal)
(See T–220 DTC
B2444, U2017)
B2445 44 7
Passenger-side side air
bag sensor system (sensor
internal circuit abnormal)
(See T–222 DTC
B2445, U2018)
B2477 54 5 Configuration error
(See T–224 DTC
B2477)

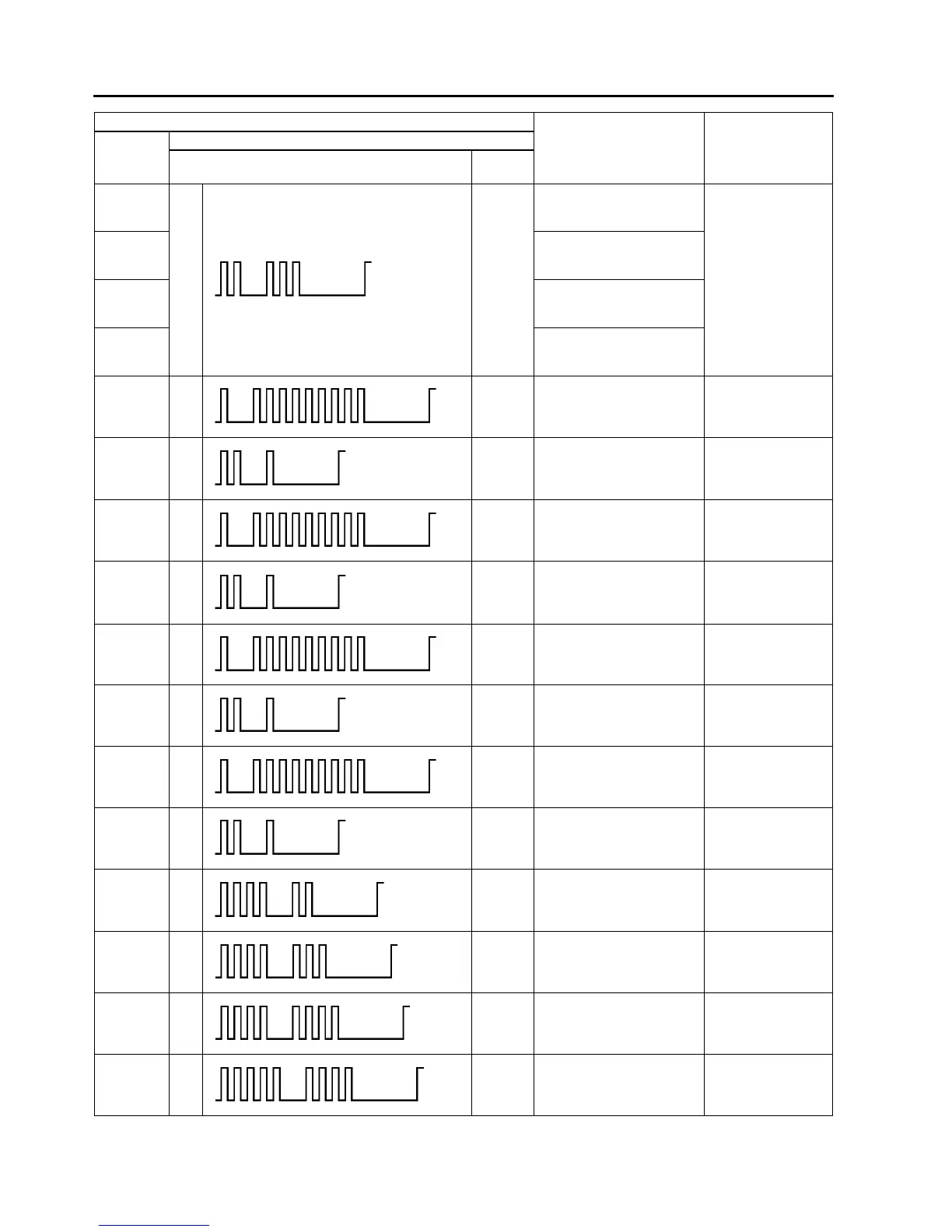

DTC
Malfunction location Page
WDS or
equivalent
Air bag system warning light
Flashing pattern
Priority
ranking
